High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted
Specifications
Brand Name :
ORIENTLAND
Model Number :
ORWG011
Certification :
ISO
Place of Origin :
ANPING
MOQ :
3000 sqm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 sqm per day
Delivery Time :
7-10days
Packaging Details :
Pallet or nude packing
Type :
Reinforced gabion mesh
Material :
Hot dipped galvanized wire, Galfan wire, PVC coated wire
Hole shape :
Hexagonal
Wire gauge :
2.0/2.7/3.0/4.0mm
Aperture :
80×100mm, 100×120mm, 120×140mm
Application :
Flood control retaining wall, river bank vation, slope protection
Box size :
2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m
Sample :
Available and free
Description

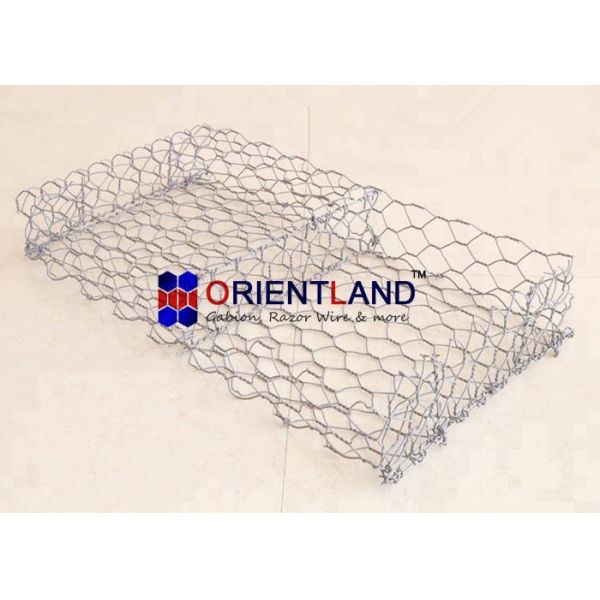

High Tensile Strength Reinforced Gabion Mesh Double Twisted

Reinforced gabion Mesh Introduction

Reinforced gabion mesh is an advanced products of double twisted woven gabion meshes, which are added parallel reinforced steel wires on every other meshes. It can increase the tensile strength and loading capacity of meshes significantly.

High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted

Reinforced gabion specifications

Materials: Galvanized wire or galfan coating wire
Mesh Wire Diameter: 2.0 mm.
Selvedge Wire Dia. 2.4mm
Reforcing Wire Dia. 3mm
Mesh sizes: 60 × 80 mm, 80 × 100 mm
Length: commonly is 30 m.
Width: 300–2000 mm.

Reinforced gabion Advantages

  • Flexible and solid structure;
  • High tensile strength and no belly;
  • Good permeability used for retaining wall;
  • Easy to installed;
  • Cost-effective and durable;
  • Environmentally friendly.

High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted

Reinforced gabion Applications

  • Used for retaining wall, reinforced banks;
  • Serve in erosion control and reinforced slope systems, roadworks, railway, constructions.
  • .

High Tensile Strength Reinforced Gabion Wire Baskets Double Twisted

FAQ:
1.How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have any special requirement. We'll provide formal quotation list once received your inquiry.
2.Could you provide free sample?
Yes,we can provide free sample.
3.How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4.How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
