Hexagonal Wire Mesh Basket Stone Cage As Retaining Wall Galvanized Gabion Box

"Hexagonal Gabion box"/"Welded Gabion box"/"gabion basket" /"gabion reataining wall" / "stone box"/ "gabion mattress"/"Gabion""Weaving Gabion Boxes""Hexagonal Gabion Wire Mesh""Hot dipped galvanized Gabion Box"

1) Material: electro galvanized wire, hot-galvanized wire pvc-coated wire, galfan wire

details specification for gabion

Gabion mesh wire: 2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4.0mm.

Surface Treatment Power Coated of "Hexagonal wire mesh gabion"

a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 290g/m2

b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in the manufacturing process.

c. Galfan, 95% zinc, 5% aluminum

Galvanized Gabion Box introduction:

1. Materials: Low Carbon Steel Wire

2. Surface Treatment: Electriv Galvanizing, Hot Dipped Galvanized, PE, PVC, Galfan Coated

3. Weaving: Normal twist, reverse twist, two-way twist, first after plating, first after knitting

4. Performance: Flexbility, ductility, permeability, promoting plant growth, corrosion resisitance, economy,easy construction, resistance to natural damage.

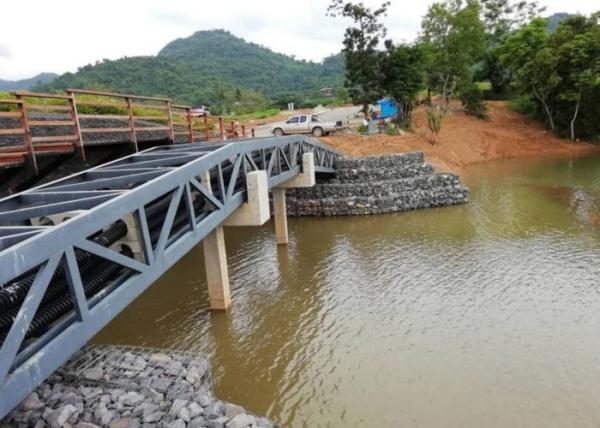

5. Application: Control and guide rivers and floods; Flood discharge dam and diversion dam; Rockfall protection; Preventing water adnd soil erosion; Bridge protection; Soild Soil structure; Costal Denfece; Port Works; Retaining Wall, Road Protection.

"Hexagonal Gabion Basket" Specification:

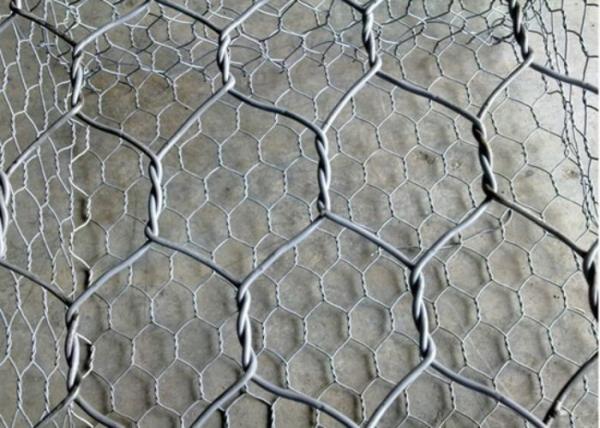

Hexagonal Wire Netting Gabions

Opening(mm)

Wire diameter (mm)

Size

60x80

2.0-2.8

1x1x0.3 1x1x0.5

2x1x0.3 2x1x0.5

2x1x1 4x2x1

6x2x0.3 6x2x1

As your request

80x100

2.0-3.2

80x120

2.0-3.2

100x120

Galvanized Gabion Box Specification:

Galvanized Gabion Box advantages:

1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4. Affording Large scale distortion, but never be defeated.
5. The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
6. Excellent Penetrability, which can prevent from the whist by liquid.
7. Saving the transport costs. Which can fold while loading and transport, then assemble.

Galvanized Gabion Box Package:
