Galvanized Iron Wire Galvanized Iron Wire 1m*1m*1.5m Scour Protection 2.7mm 3.05mm Galvanised Gabion Baskets

Galvanized Gabion Mesh Information:

Gabion basket can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.

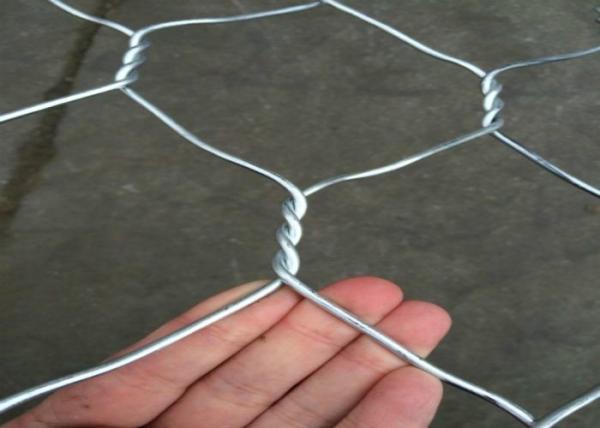

Galvanized Gabion Mesh details:

1. Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2

Features:

Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.ation.
Less transport freight. It can be folded together for transport and further install

Advantages:

1. Soft structure is exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.

2. Strong capacity of Anti-scour even reach to 6m/s.

3. The structure has permeability essentially, which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.

Galvanized Gabion Mesh featuers:

Economic.
Simple installation.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing.
Good permeation can prevent the damage by hydrostatic.
Less transport freight.
Flexibility is good
Corrosion resistance

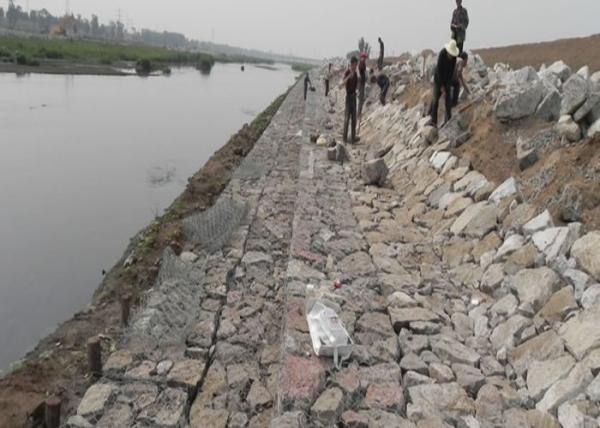

Galvanized Gabion Mesh Application:

Control and guide of water or flood.
Flood bank or guiding bank.
Preventing of rock breaking.
Water and soil protection.
Bridge protection.
Strengthening structure of soil.
Protection engineering of seaside area.

Galvanized Gabion Mesh Package:

60-150sets per bundle,then wrapped with steel binding wire or plastic film if you need.we can also suppply pallet packing for convenient unloading.It according to your requirement.
