Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
BY Pallets
Model Numbe :
Gabion Mesh Cages
Material :
Galvanized Wire, PVC Coated Wire
Type :
Weave Mesh
Application: :
Gabion wall River Bank Protection
Hole Shape :
Hexagonal
Wire Gauge :
2.2/3.2mm, 2.7/3.7mm, 3.0/4.0mm
Surface Treatment :
Hot Dipped Galvanized
Feature :
anti corrosion
Color :
Silver, Dark green, Gray
Processing Service :
Processing Service
Description

2.7mm wire basket gabion price 2.4/3.4mm pvc gabion mesh Dominican gaviones 1.5x1x0.5m Gabion Mesh Cages

Gabion Mesh Cages Information:

Stone is a metal cage net woven wire net angular (hexagonal) into the cage, the use of the metal diameter is based on the size of the hexagonal different. If the metal coating is the hexagonal wire, the use of diameter 2.0 mm to 4.0mm of wire, if the PVC-coated wire woven hexagonal, the use of outer diameter of 4.5mm to 3.0mm for PVC (metal) line. edge of the frame lines were used than the hexagonal thick line One of the lines.

1. material:low carbon iron wireQ195

2. wire gauge:2.0mm--5.0mm

3. hole size:60*80,80*100,100*120,120*150

4. mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement

5. surface treatment:electro galvanized,hot dipped galvanized

6. application:rock fall protection,gabion wall,gabion matresses,roadway protection.

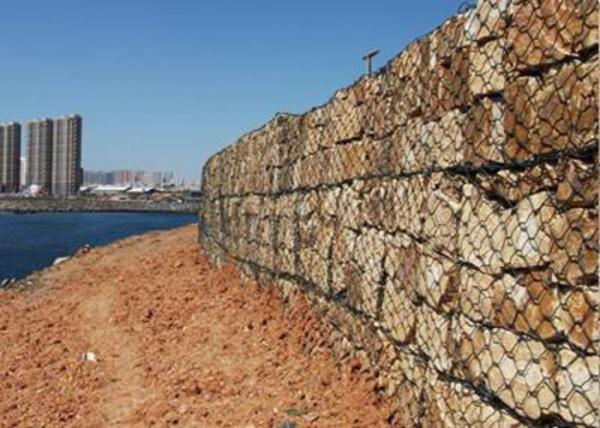

Gabion baskets have some advantages over loose riprap because of their modularity and ability to be stacked in various shapes; they are also resistant to being washed away by moving water. Gabions also have advantages over more rigid structures, because they can conform to subsidence, dissipate energy from flowing water, and drain freely. Their strength and effectiveness may increase with time in some cases, as silt and vegetation fill the interstitial voids and reinforce the structure.

Gabion Mesh Cages specificaiton:

Gabion box (mesh size):
80*100mm
100*120mm		 Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2
Gabion mattress(mesh size):
60*80mm		 Mesh Wire diameter 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Special sizes Gabion
are available		 Mesh Wire diameter 2.0-4.0mm superior quality,competitive price and
considerate service
Edge wire diameter 2.7-4.0mm
Tie wire diameter. 2.0-2.2mm

Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4

Gabion Mesh Cage featuers:

1. Cost effective and environmentally friendly alternative to concrete system.
2. The Gabion structure blends easily and harmoniously with natural surroundings.
3. Simple and speedy installation, using natural or quarried stones obtained locally.
4. Ability to deform without cracking allowing the structure to withstand any unpredictable movement or settlement without loss or stability.
5. Higher resistance to natural forces due to better tensile strength.
6. Majority of manpower need not to be skilled and speed at which the work is carried out is unparalleled in civil engineering, besides making it cost effective.
7. Easy of repair to any damaged cages, with minimal expense.
8. The use of Gabions as retaining structures provides a low cost alternative to concrete or masonry retaining walls.

Gabion Mesh Cage Package:

1 .With plastic weaving bags outside

2. With wooden pallet cloth

3. Less transport freight. It can be folded together for transport and further installation.

Hexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh CageHexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh CageHexagonal 2.7mm 1.5x1x0.5m Pvc Coated Gabion Mesh Cage
