Supplier Price 3.05mm 2x1x1m 8*10cm Hexagonal Stone 3x1x0.5m Rust Proof Galvanized Wire Gabion Wall Baskets

Woven Gabion Basket Information:

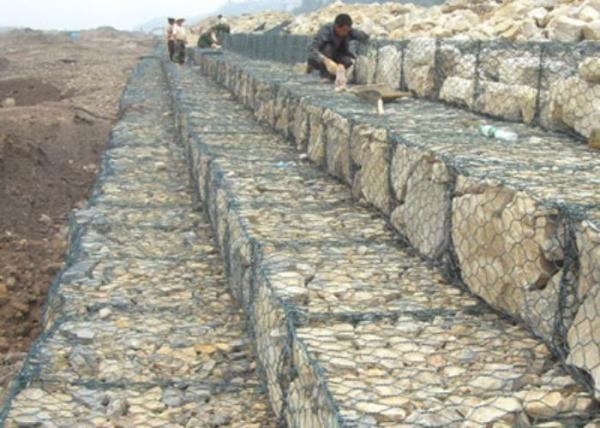

Woven Gabion Box also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron. Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Introduction of gabion

Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire

Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.05mm, etc

Gabion box selvedge wire: 2.4mm, 2.7mm, 3.4mm, 3.8mm, etc

Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, etc

Gabion box lacing wire: 2.2mm, 5% of gabion weight

Gabion box zinc coating: 225, 245, 275g/m2, according to EN10224-2

Gabion box size: 1*1*1m, 2*1*0.5m, 2*1*1m, 3*1*1m, 4*2*0.3m, 6*2*0.3m,etc

Gabion box steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2

Woven Gabion Box material:

1.hot-dip galvanized low carbon steel wire.
2.Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3.PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color.
Tensile strength:
350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

Woven Gabion Basket Application:

a.Control and guide of water or flood
b. Prevent of rock breaking
c. Protect rock fall
d. Protect Water and soil protection
e. Protect bridge
f. Strengthen structure of soil
g. Protect engineering of seaside area.
h. Build Port project
i. Keep off dust wall
j. Protect roadway

Woven Gabion Basket Specification:

Woven Gabion Basket featuers:

1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.Sludge in the stones is good for plant growing. Mixed to form

a integrity with thenatural environment.

5.Good permeation can prevent the damage by hydrostatic.
6.Less transport freight. It can be folded together for transport

and further installation.
7.No collapse even under big scope of deforming.

Woven Gabion Basket Package:

1.With plastic weaving bags outside

2.With wooden pallet cloth

3.Less transport freight. It can be folded together for transport and further installation.
