Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
By Pallets
Model number :
Woven Gabion Box
Material :
PVC Coated Wire, Galvanized wire
Process :
Weaving Mesh
Application :
Roadway Protection, River Control
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Zinc Coated :
220-270g
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

Retaining Wall 80x100 2.7mm 1x1x1 2m X 1m X 1m Pvc Coated Galvanized Woven Gabion Basket

Woven Gabion Mesh introduction:

Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
Most galvanised wire netting is known as either rabbit fencing mesh or Chicken Wire Netting. Both of these are the most common use for this type of wire netting. Chicken wire is used for chicken runs, pens and houses. Rabbit fencing starts a a minimum 60cm high up to 1.2m to protect from hare and Muntjac deer.

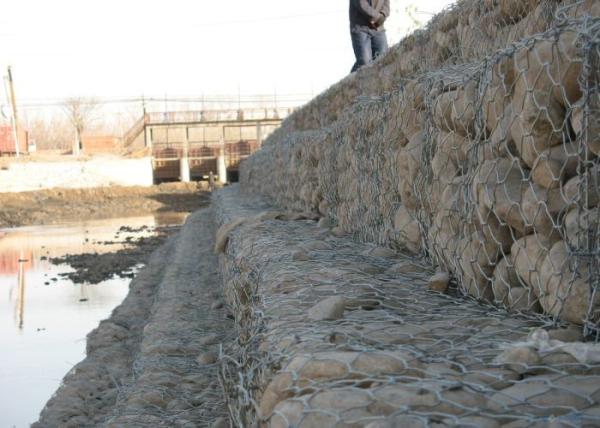

Woven gabion mesh is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Hot dipped galvanized wire Hot dipped galvanized wire+pvc
Galfan coating(5%AL+95%ZN)/+pvc coating
Super galfan coating()10%AL+90%ZN)/+pvc coating


Woven Gabion Mesh Specification:

Material Galvanized wire


Surface treatment

 Hot dipped galvanized (Zinc Coated)
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum
Zinc(galvanized) + PVC Coated (Gray or Green)

Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification
Wire diameter 2.0-4.0mm
Mesh opening 80 x 100mm 90 x 110mm 100 x 120mm 60 x 80mm etc.
Dimension 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request

Material galvanzied wire
Wire diameter 2.0-4.0mm
Mesh Size 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm
Surface treatment hot-dipped galvanzied/PVC coated
Color silver/green/black green
Application soil, bridge construction, water bank

Specifications offered
Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4

Woven Gabion Mesh advantages:


Gabion mesh or gabion box has some obvious advantages ,such as corrosion prevention ,eletrostatic prevention ,age resistance ,corrosion-resistance ,compressive resistance ,sheaving resistance and improving the protective function in the highly polluted environment.This kind of mesh mainly used in river,sea and highly polluted area.

Woven Gabion Mesh Application:

a. Control and guide of water or flood
b. Prevent of rock breaking
c. Protect rock fall
d. Protect Water and soil protection
e. Protect bridge
f. Strengthen structure of soil
g. Protect engineering of seaside area.
h. Build Port project
i. Keep off dust wall
j. Protect roadway

Advantages
1.Corrosion- resistant, rust-resistant.
2. Oxidation –resistant, good tensile strength.
3. Uniform mesh size, flat and even mesh surface, weave tightly.
4. Galvanized /pvc coated for longer life, low costs.
5. Easy to handle and cut.
6. Uniform sound abatement.

Woven Gabion Mesh Package:

1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters

Retaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1mRetaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1mRetaining Wall 80x100 2.7mm Woven Gabion Basket 1x1x1 2m X 1m X 1m
