Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Anticorrosive 3.05mm Zinc Coated Mesh Retaining Wall
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
By Pallets
Model number :
Galvanized Gabion Mesh
Material :
PVC Coated Wire, Galvanized wire
Process :
Weaving Mesh
Application :
Roadway Protection, River Control
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Zinc Coated :
220-270g
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

3.05mm Galvanized Anticorrosive For Retaining Wall Galvanized Gabion Mesh


Galvanized Gabion Mesh introduction:

Gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering,road building, military applications and landscaping.Gabion boxes can be supplied in various lengths, widths and heights.In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.

The raw materials are generally galvanized low carbon steel wire, Galfan low carbon steel wire and plastic coated low carbon steel wire.

Material: Galvanized wire, PVC coated wire.
Features: Good structure of construction, insulation, heat insulation.
Mesh: 60x80,80x100,100x120mm.etc
Wire diameter: 1.5-3.5mm
Aperture: 6-12cm

Galvanized Gabion Mesh Specification:

Material Galvanized wire


Surface treatment

 Hot dipped galvanized (Zinc Coated)
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum
Zinc(galvanized) + PVC Coated (Gray or Green)

Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification
Wire diameter 2.0-4.0mm
Mesh opening 80 x 100mm 90 x 110mm 100 x 120mm 60 x 80mm etc.
Dimension 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request

Material galvanzied wire
Wire diameter 2.0-4.0mm
Mesh Size 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm
Surface treatment hot-dipped galvanzied/PVC coated
Color silver/green/black green
Application soil, bridge construction, water bank

Specifications offered
Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4


Galvanized Gabion Mesh advantages:

1. Soft structure is exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
2. Strong capacity of Anti-scour even reach to 6m/s.
3. The structure has permeability essentially, which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.


Galvanized Gabion Mesh Application:

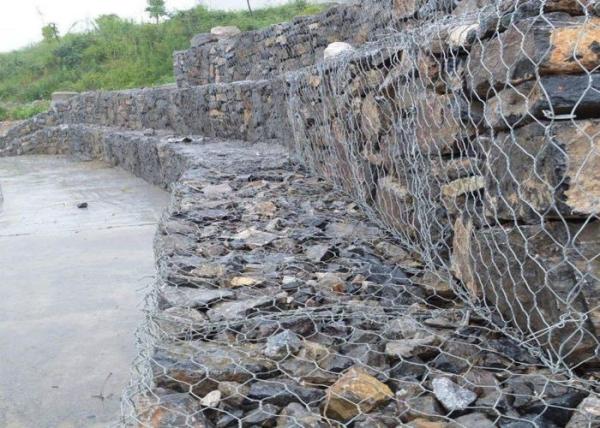

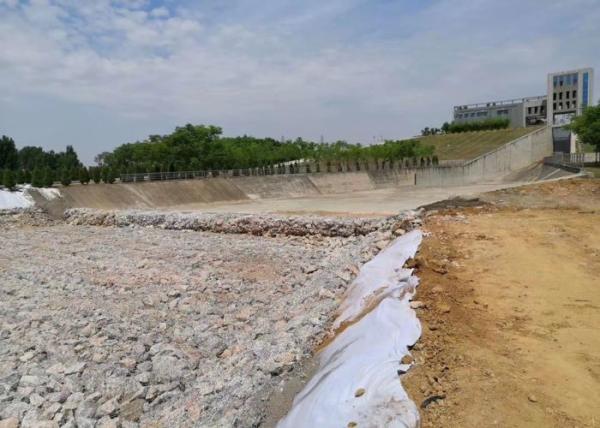

Gabion Box with Good Structure for Slope Protection and Retaining Wall Gabion box is a strong-structure product with hexagonal or rectangular holes, which can be divided into woven gabion box and welded gabion box according to different fabrics. Gabion box is also called gabion baskets, which can be divided into galvanized gabion box, Galfan coated gabion box, stainless steel gabion box, and PVC coated gabion box because of different materials. Gabion box has many characteristics, such as robust and flexible structure, excellent permeability, good corrosion and rust-resistance, high tensile strength and good durability. It can be used for protective applications and decorative applications, such as rockfall barrier, slope protection, retaining wall, flood controlling, military defense, gabion planter, and landscape constructions.

Galvanized Gabion Mesh Package:

by bundle.
