Normal Twist Fortification 2.7mm Pvc Wire Mesh
Normal Twist Fortification 2.7mm Pvc Wire Mesh
Normal Twist Fortification 2.7mm Pvc Wire Mesh
Normal Twist Fortification 2.7mm Pvc Wire Mesh
Normal Twist Fortification 2.7mm Pvc Wire Mesh
Normal Twist Fortification 2.7mm Pvc Wire Mesh
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
By Pallets
Model number :
PVC Gabion Mesh
Material :
PVC Coated Wire, Galvanized wire
Process :
Weaving Mesh
Application :
Roadway Protection, River Control
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Zinc Coated :
220-270g
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

Road Military Fortification River Bank 2.7mm Wire Diameter PVC Coated Wire Mesh



PVC Coated Wire Mesh introduction:

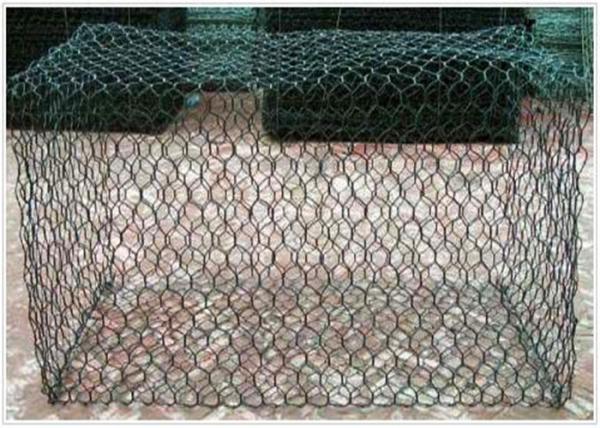

Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For Galvanized Gabions , the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated Gabions, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.


Material: Low-carbon iron wire

Hole Shape: Hexagonal

Finish: Galvanized Gabions ;

PVC coated Gabions

Aperture: 3/8'' to 4''

Gauge: BWG12 - BWG30

Wire diameter: 0.3mm-4.0mm

Width: 0.5m-2.0m

Length: 30 or 50m /roll

Weaving: Normal twist ; Normal and Reverse twist


PVC Coated Wire Mesh Specification:

Material Galvanized wire


Surface treatment

 Hot dipped galvanized (Zinc Coated)
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum
Zinc(galvanized) + PVC Coated (Gray or Green)

Material galvanzied wire
Wire diameter 2.0-4.0mm
Mesh Size 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm
Surface treatment hot-dipped galvanzied/PVC coated
Color silver/green/black green

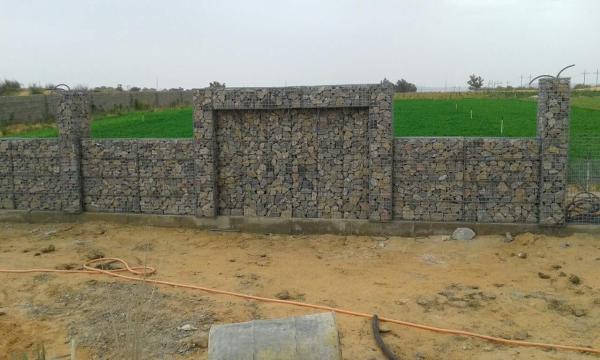

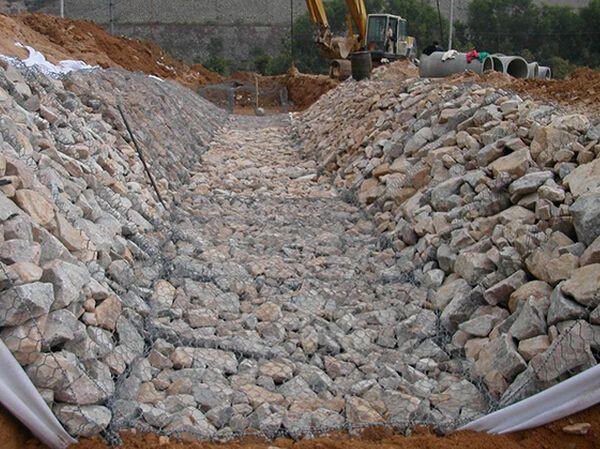

Application soil, bridge construction, water bank
Specifications offered
Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4


PVC Coated Wire Mesh Advantages:

1) corrosion- resistant, rust-resistant.

2) oxidation –resistant, good tensile strength.

3) uniform mesh size, flat and even mesh surface, weave tightly.

4) galvanized /pvc coated for longer life, low costs

5) easy to handle and cut.


PVC Coated Wire Mesh Application:

1) Structural purposes , Heat insulation

2) Pipe wrapping(petrolium) ,Isolation purposes ,

3) Indicator & protection for underground cables and pipes ,Windows Protection

4) Light fencing applications ,Fishing ,Poultry farms ,Sugar industry

5) Rubber industry , rockwool blanket industry.

6) Poultry & animal housing, Crop protection. Fruit cages, Garden Protection,Rabbit Control,

Stucco in construction, reinforcement in road.

PVC Coated Wire Mesh Package:

Packed by waterproof paper, plastic bags, wooden pallets

Normal Twist Fortification 2.7mm Pvc Wire MeshNormal Twist Fortification 2.7mm Pvc Wire MeshNormal Twist Fortification 2.7mm Pvc Wire Mesh
