2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
BY Pallets
Model number :
Galvanized Gabion Box
Material :
Galvanized Wire, PVC Coated Wire
Type :
Weave Mesh
Application: :
Water And Soil Protection
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Feature :
Corrosion resistance
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

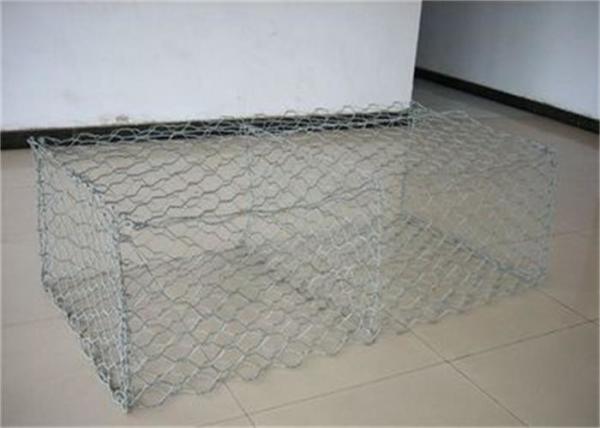

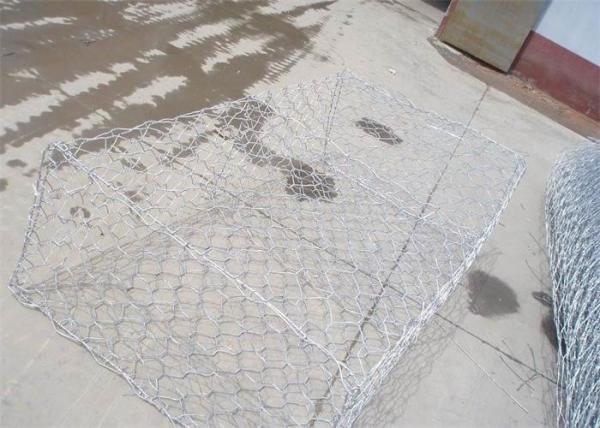

2*1*1m 8*10cm Mesh Size Zinc Coating More Than 270g Galvanized Gabion Box

Galvanized Gabion Box Information:

Hexagonal Wire Netting Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

1. Materials of gabion mesh:

Low carbon steel wire,

stainless steel wire.

PVC coated wire,

2. Application

1. Control and guide of water or flood

2. Flood bank or guiding bank

3. Preventing of rock breaking

4. Water and soil protection

5. Bridge protection

6. Strengthening structure of soil

7. Protection engineering of seaside area

3. Advantage of gabion mesh:

1. Economic. Just fill the stone into the gabions and seal it.

2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.

5. Good permeation can prevent the damage by hydrostatic.

6. Less transport freight. It can be fold together for transport.

7. Sludge in the stones is good for plant growing.

Galvanized Gabion Box specificaiton:

Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4

Galvanized Gabion Box Package:

1. With plastic weaving bags outside

2. With wooden pallet cloth

3. Less transport freight. It can be folded together for transport and further installation.

2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g2*1*1m 8*10cm Mesh Size Gabion Wall Basket Zinc Coating 270g
