3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
BY Pallets
Model number :
Galvanized Gabion Box
Material :
Galvanized Wire, PVC Coated Wire
Type :
Weave Mesh
Application: :
Water And Soil Protection
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Feature :
Corrosion resistance
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

Wire Gauge 2.0-4.0mm Size 1x1x0.5m Color Silve Galvanized Gabion Box

Galvanized Gabion Box Information:

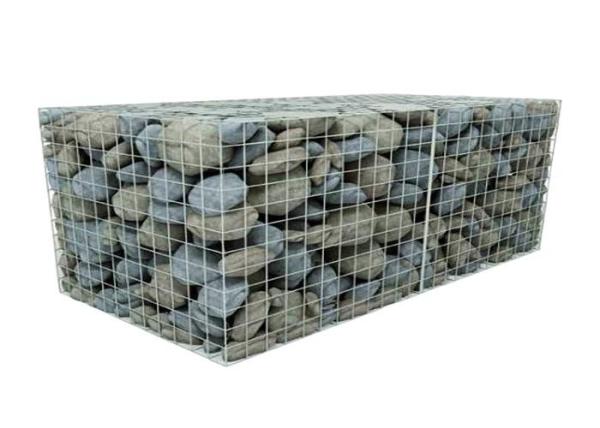

Gabions are wire mesh baskets filled with cobbles or crushed rocks.Because they are flexible and porous,they can absorb some wave and wind energy,thereby reducing the scour problems associated with impermeable sea defences,such as seawalls.Gabions can be placed as sloping"mattresses"or as near vertical cubic baskets.The latter are intended for bank or cliff stabilisation and are noot normally suitable for using in shoreline conditions.

1. Materials of gabion mesh:

Hot dipped galvanized wire

Hot dipped galvanized wire+pvc

2. Features:


A.corrosion- resistant, rust-resistant.

B.oxidation –resistant, good tensile strength.
C.uniform mesh size, flat and even mesh surface, weave tightly.

3. Apolication of gabion mesh:

1. gabions for soil & river bank retaining walls

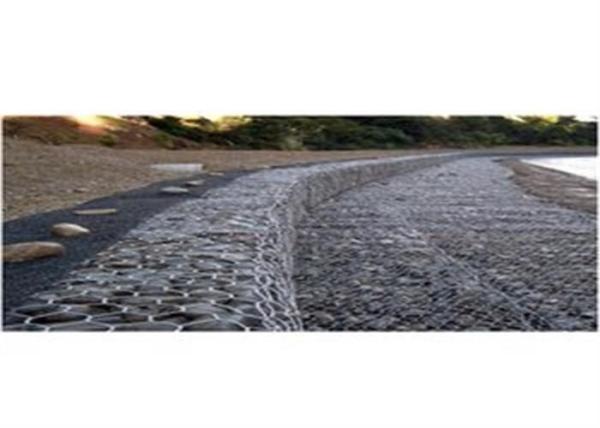

2. gabions for coastal & beach protection

3. slope protection net

4. mechanically stablized earth walls

5. mass-gravity retaining walls

6. rivei canal lining

7 gabion weirs

8. achitectural applications

9. sound barriers

Advantage:

a. simple to install-using little skilled labour

b. environmentally acceptable --the use of local rock and soil for backfill is encouraged

c. flexible nature--able to move and settle without failure,even on unstable soil

The installation of Gabions basket for retaing wall

Galvanized Gabion Box specificaiton:

Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4

Galvanized Gabion Box Package:

1.With plastic weaving bags outside

2.With wooden pallet cloth

3.Less transport freight. It can be folded together for transport and further installation.

3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box3.5mm Dia Size 1x1x0.5m Silver Galvanized Gabion Box
