Weight Per Square Meter Flood Control Stainless Steel Pvc Coated Gabion Box

PVC Coated Gabion Box introduction:

Gabion Box also call gabion basket,gabion wall,gabion cage,gabion wall factory,hexagonal mesh gabion box,stone gabion netting,diamond gabion box,hot-dipped galvanized gabion mesh,gabion mesh container,mountain protecting gabion box.

Material:Galvanized iron wire and PVC coated wire,
Galfan(95%zinc-5%Alu Alloy)low carbon steel wire,which has good ability of resistance corrosion.
Mesh wire:2.0mm-4.0mm
Mesh size:6x8m,8x10m,10x12m,12x15m,16x18m
Size:1x1x1m,2x1x1m,3x1x1m,4x1x1m,2x1x0.5m,4x1x0.5m
Selvedge wire diameter: 3.2mm-4.2mm
Lacing/tie wire : 2.2mm/3.2mm
Weave style: Double twist hexagonal mesh

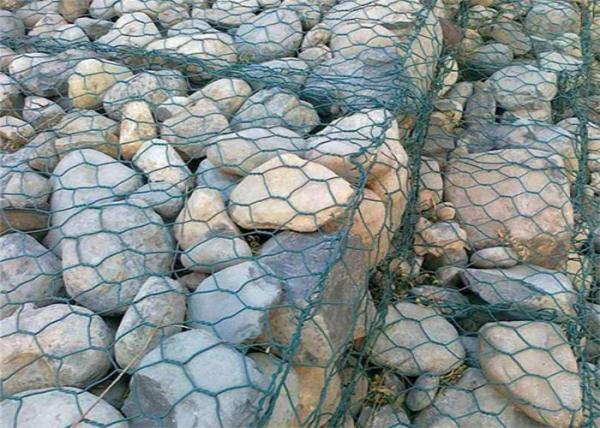

Galvanized gabion mesh are wire mesh baskets filled with cobbles or crushed rocks.Because they are flexible and porous,they can absorb some wave and wind energy,thereby reducing the scour problems associated with impermeable sea defences,such as seawalls.Gabions can be placed as sloping"mattresses"or as near vertical cubic baskets.The latter are intended for bank or cliff stabilisation and are noot normally suitable for using in shoreline conditions.
Material:GI wire,PVC coated wire,galfan wire

PVC Coated Gabion Box advantages:

1. Great Perviousness, pliability and anti-corrosion.
2. Resist the scour
3. Holistic capability
4. Easy to Construct
5. Economical and environmental protection

PVC Coated Gabion Box Application:

Gabion Box with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. The base section of the Gabion box is divided into compartments and filled with stones at the project site. With lids secured, Gabion box form flexible, permeable, monolithic structures.

PVC Coated Gabion Box Package:

1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
