80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
Specifications
Brand Name :
Zhuoda
Model Number :
ZD-04
Certification :
ISO9001
Place of Origin :
Anping China
MOQ :
100 Sets
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000 Sets
Delivery Time :
5-7days
Packaging Details :
By Pallets
Model number :
PVC Coated Gabion Box
Material :
PVC Coated Wire, Galvanized wire
Process :
Weaving Mesh
Application :
Roadway Protection, River Control
Hole Shape :
Hexagonal Mesh
Wire Gauge :
2.0mm, 2.7mm, 3mm 3.5mm 4mm
Surface Treatment :
Hot Dipped Galvanized
Zinc Coated :
220-270g
Gabion Size :
2x1x1,3x1x1,4x1x1,6x2x0.3
Mesh Size :
60x80 80x100 80x120 100x120
Description

80x60mm Hexagonal Hole 3.2mm Iso9001 Easy Installation Pvc Coated Stone Filled Gabions

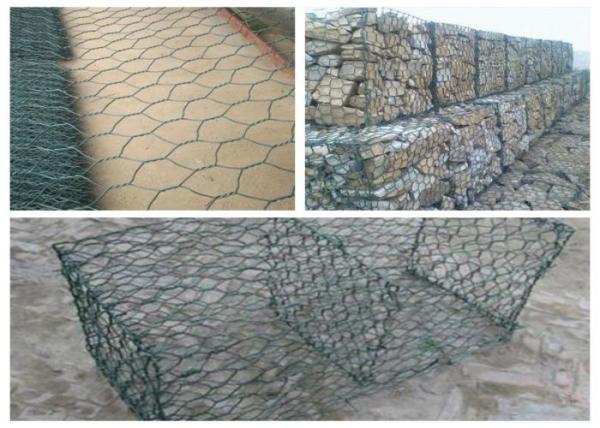

PVC Coated Gabion Box introduction:

Gabion boxes are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.

Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.

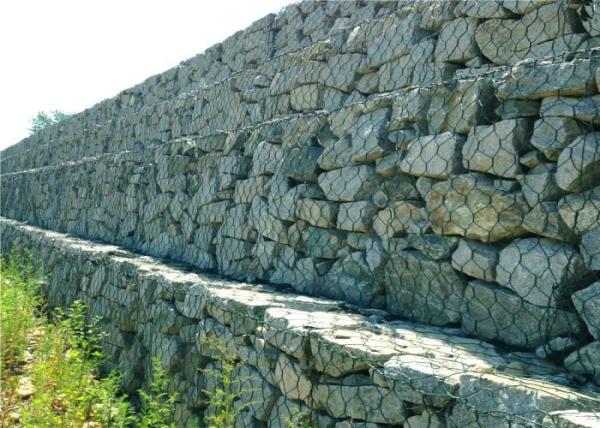

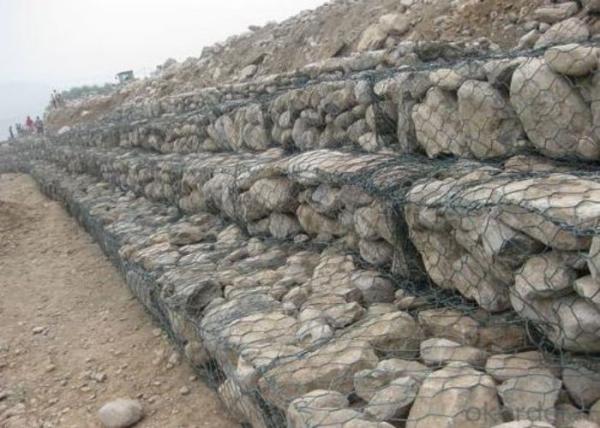

Gabion wire mesh are used for river bank and scour protection, channel linings for erosion control, and embankment stability. They are filled with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. The base section of the Gabion box is divided into compartments and filled with stones at the project site. With lids secured, Gabion box form flexible, permeable, monolithic structures.


PVC Coated Gabion Box Material:

Low carbon steel wire, galvanized wire, PVC coated wire


PVC Coated Gabion Box Features:

1) corrosion- resistant, rust-resistant.
2) oxidation –resistant, good tensile strength.
3) uniform mesh size, flat and even mesh surface, weave tightly.
4) galvanized /pvc coated for longer life, low costs

5) easy to handle and cut.


PVC Coated Gabion Box Weaving Types:


Straight Twisted,Reversed Twisted


PVC Coated Gabion Box Applications:

1. Great Perviousness, pliability and anti-corrosion.
2. Resist the scour
3. Holistic capability
4. Easy to Construct
5. Economical and environmental protection


PVC Coated Gabion Box Specification:

Gabion cages
Opening(mm)

Wire diameter

metal wire(mm)

Wire diameter PVC coated/inner

/outside(mm)

 Strands
60 x 80 f2.0/2.8 f2.0/3.0-f2.5/3.5 3
80 x 100 f2.0/3.2 f2.0/3.2-f2.8/3.8 3
80 x 120 f2.0/3.2 f2.0/3.2-f2.8/3.8 3
100 x 120 f2.0/3.4 f2.0/3.0-f2.8/3.8 3
100 x 150 f2.0/3.4 f2.0/3.0-f2.8/3.8 3
120 x 150 f2.0/4.0 f2.0/3.0-f3.4/3.4 3

Material Galvanized wire


Surface treatment

 Hot dipped galvanized (Zinc Coated)
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum
Zinc(galvanized) + PVC Coated (Gray or Green)

Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification
Wire diameter 2.0-4.0mm
Mesh opening 80 x 100mm 90 x 110mm 100 x 120mm 60 x 80mm etc.
Dimension 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request

Material galvanzied wire
Wire diameter 2.0-4.0mm
Mesh Size 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm
Surface treatment hot-dipped galvanzied/PVC coated
Color silver/green/black green
Application soil, bridge construction, water bank

Specifications offered
Length Width Height Diaphragm CUM The tolerance
M M M Unit M3
2 1 0.3 1 0.6
3 1 0.3 2 0.9
4 1 0.3 3 1.2 length+-3%
2 1 0.5 1 1 width+-5%
3 1 0.5 2 1.5 height+-5%
4 1 0.5 3 2
1 1 0.5 0 1 Hole size
1.5 1 1 0 1.5 60x80mm
2 1 1 1 2 80x100mm
3 1 1 2 3 100x120mm
4 1 1 3 4

80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions80x60mm Hexagonal Hole 3.2mm Iso 9001 Stone Filled Gabions
