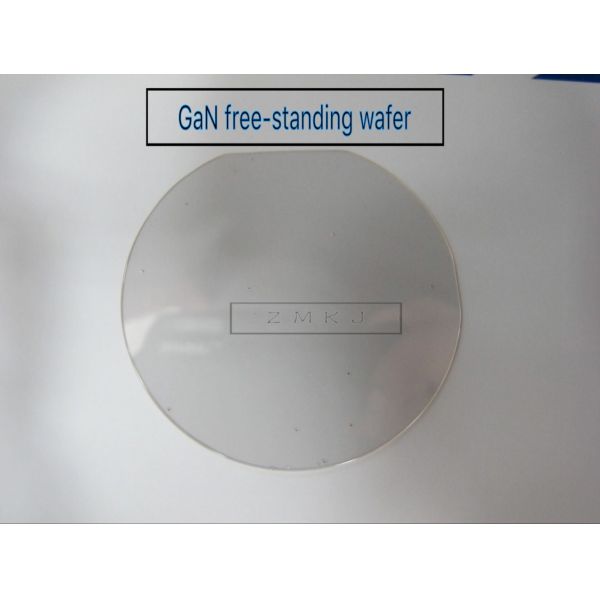

2inch GaN substrates template,GaN wafer for LeD,semiconducting Gallium Nitride Wafer for ld,GaN template, mocvd GaN Wafer,
III-Nitride(GaN,AlN,InN)Forbidden band width (light emitting and absorption) cover the ultraviolet,
visible light and infrared.GaN can be used in many areas such as LED display, High-energy Detection
and Imaging,Laser Projection Display, Power Device, etc.
Specifications:
2” GaN Templates
Item |
GaN-T-N | GaN-T-S |
Dimensions | Ф 2” | |
Thickness | 15 μm, 20 μm, 30 μm, 40 μm | 30 μm, 90 μm |
Orientation | C-axis(0001) ± 1° | |
Conduction Type | N-type | Semi-Insulating |
Resistivity(300K) | < 0.05 Ω·cm | >106 Ω·cm |
Dislocation Density | Less than 1x108 cm-2 | |
Substrate structure | | |
Useable Surface Area | > 90% | |
Polishing | Standard: SSP Option: DSP | |
Package | Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere. |
