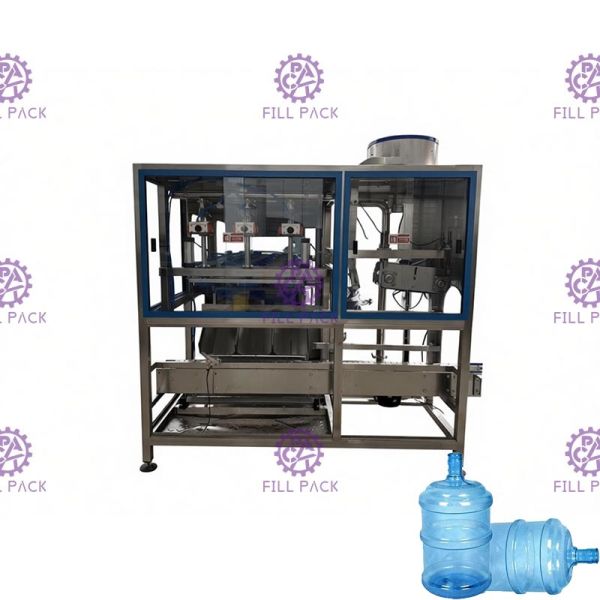

450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
450BPH 20 Liter Jar Filling Machine
Specifications
Brand Name :
FILL PACK
Model Number :
QGF-450
Certification :
CE, ISO9001
Place of Origin :
ZhangJiaGang JiangSu China
MOQ :
1 set
Price :
USD $6000-$8000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
15-20 working days
Packaging Details :
wooden case
bottle Volume :
18.9 L bottle
Capacity :
450bottles per hour
Warranty :
1 year
Product name :
automatic 5 gallon water filling machine
Dimension(L*W*H) :
3600*2000*1800mm
Filling material :
drinking water
Condition :
New
Filling heads :
3
Description

Description of 450BPH Gallon Water bottling machine for 10 to 20 liter Bottle

The 450BPH Gallon Water bottling machine specially produces 450 pcs of 5 gallon barrels drinking water.It integrates bottle washer, filler and sealer into one unit.

In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this machine can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.

It is a new kind of barreled water auto-producing machine, which integrates mechanism, electricity and pneumatic technologies together.

Except for the 450BPH Gallon Water bottling machine, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-9000 QGF-1200
Filling heads 1 2 3 4 6 12
Volume(gallon) 3&5 3&5 3&5 3&5 3&5 3&5
Barrel size(mm) 270-490 270-490 270-490 270-490 270-490 270-490
Capacity(b/h) 60-100 250-300 400-450 600-800 800-900 1000-1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption(m³/m) 0.37 0.6 0.8 1 1.5 1.8
Moto power (kw) 1.38 3.8 3.8 7.5 9.75 13.5
Rated Voltage(V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight(kg) 680 1500 2100 3000 3500 4500

Our Services
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator and mechanic.
5.Free beverage production technology and process configuration.
6.We can help you to design the product line, workshop and provide turn-key project.

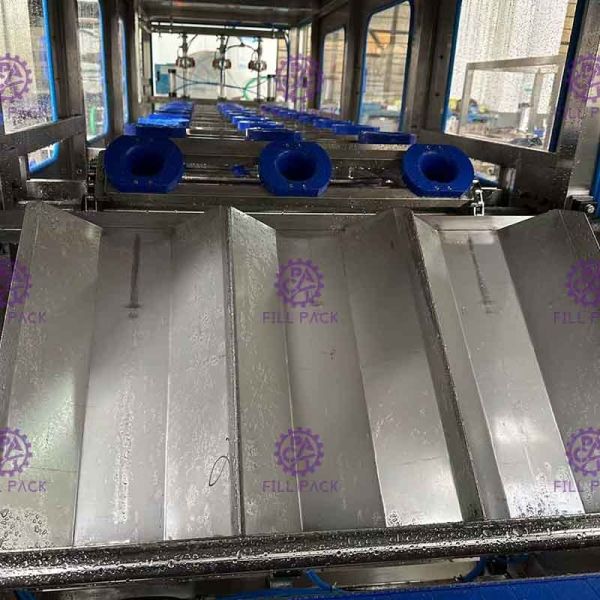

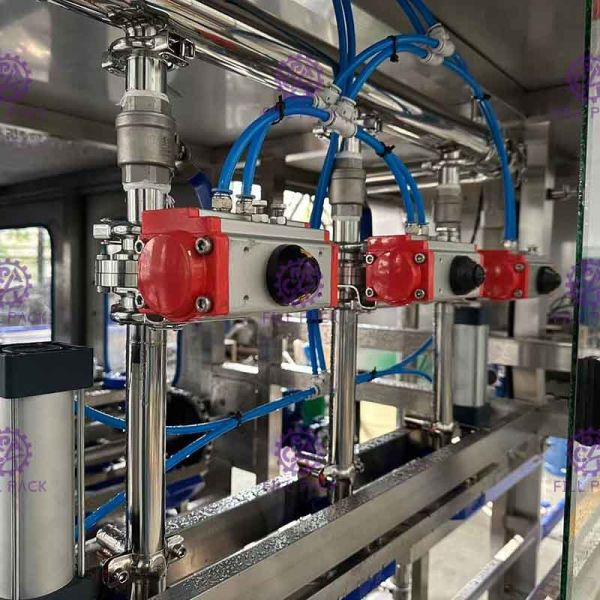

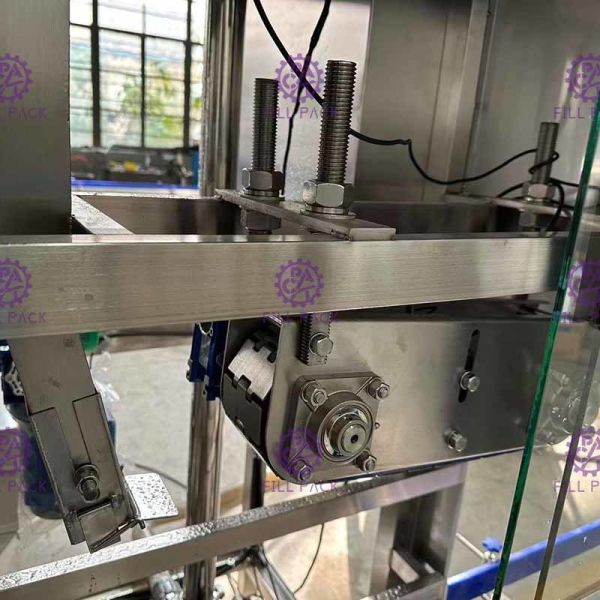

Details of the 450BPH Gallon Water bottling machine:

450BPH 20 Liter Jar Filling Machine

450BPH 20 Liter Jar Filling Machine
