Press Cap Monoblock 5 Gallon Water Filling Machine
Press Cap Monoblock 5 Gallon Water Filling Machine
Press Cap Monoblock 5 Gallon Water Filling Machine
Press Cap Monoblock 5 Gallon Water Filling Machine
Press Cap Monoblock 5 Gallon Water Filling Machine
Press Cap Monoblock 5 Gallon Water Filling Machine
Specifications
Brand Name :
FILLPACK
Model Number :
QGF-200
Certification :
CE,ISO
Place of Origin :
ZhangJiaGang City, JiangSu Province, China
MOQ :
1 set/pcs
Price :
USD$4,850.00-USD$6,000.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/month
Delivery Time :
30-35days
Packaging Details :
Wooden case pacakge
Type :
Filling Machine
Packaging Material :
Plastic, PET/PC
Filling Accuracy :
>99.5%
Cap :
Screw / Press Cap
Capacity :
200 BPH
Product name :
3-5 gallon water filling machine
Rated input power :
4.0KW
Description

200BPH Monoblock Round Barrel Gallon Filler With Nanfang Pump

Brief of Barrel Gallon Filler:

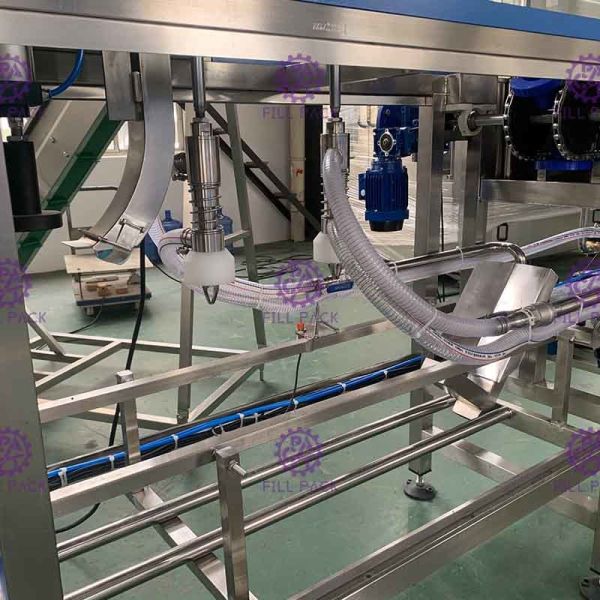

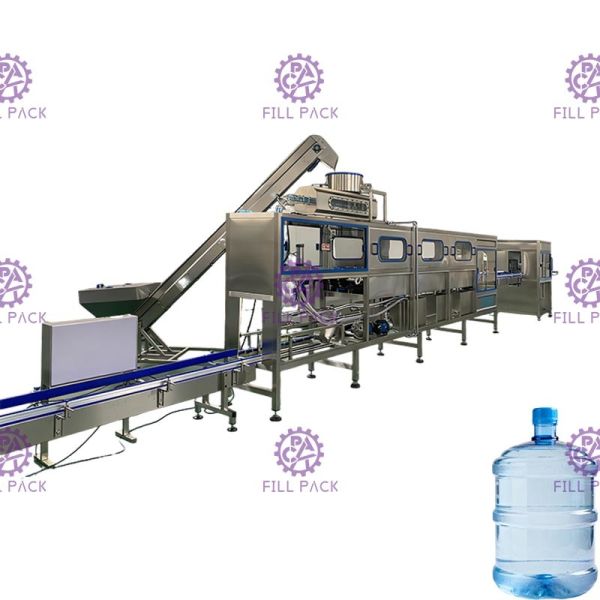

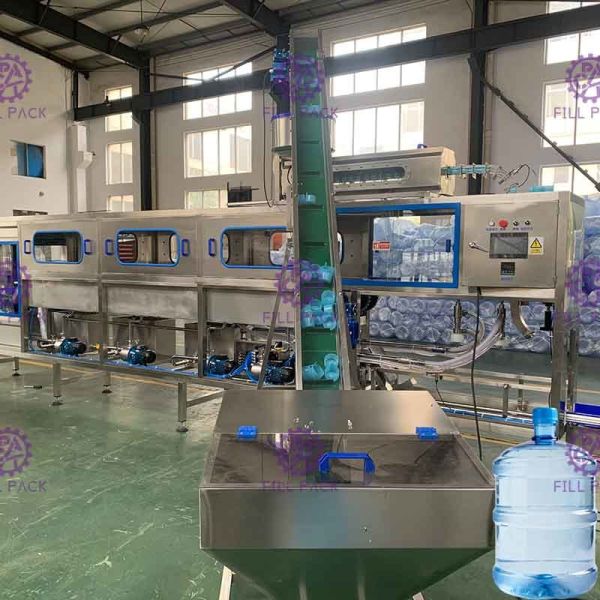

This QGF series barreled water filling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing, filling, capping through several washing, fit quantify filling and auto wear lid and capping.

Equipent list:

1.1 Semi-auto de-capper and brush washer with full SUS304 BS-1 900*900*1250 1set
1.2 Monoblock rinser-filler-capper with full SUS304 QGF-200 3400*780*1950 1set
1.3 Light checker / / 1pc
1.4 Roller conveyor / / 2m
1.5 Label shrink tunnel / 600*600*1000 1set
1.6 Solid Ink Roll Coding Machine FP-380F 440*345*300 1set
Charecters of Barrel Gallon Filler:
Items Specification
Production capacity 200Buckets/hour

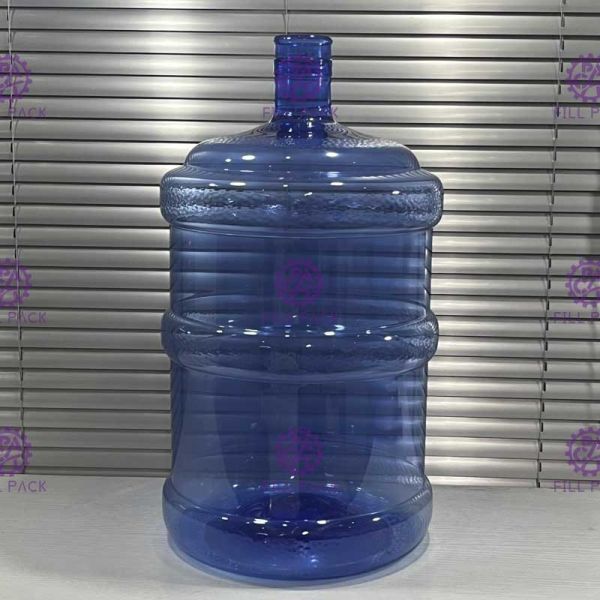

Bottle’s capacity 11. 3 Liters (equal to 3 gallons)-18. 9 Liters (equal to 5 gallons)
Bottle’s specification (mm) Φ230×420×Φ56 - Φ270×490×Φ56
Cap’s specification (mm) Φ58×40 (strip:L18mm,W:7.5mm)
Rated input power

4.0KW

We can also provide Complete Automatic 3-5 Gallon Water Production Line:
It Includes 4 main parts:
1 . Plastic barrel blowing machine.(you can buy the barrel directly to produce)
2 . Water treatment system.(RO / UF)
3 . Washing, filling, capping 3 in 1 machine.
4 . Semi-auto de-capper and brush washer, Conveyor system, labeling machine, dating machine, Palletizer

Nanfang Pump
