20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
20 Litre Single Row 120 BPH Gallon Filling Line
Specifications
Brand Name :
FillPack
Model Number :
QCF-120
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1
Price :
USD $2800/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
15sets / month
Delivery Time :
15-20days after deposit receipt
Packaging Details :
Wooden Case Package
Capacity :
120 BOTTLES PER HOUR
Volume :
20Litre
Voltage :
380V 3PH 50hz
Material :
SUS304
Automatic Grade :
auto
Control :
PLC control
Weight :
400kg
Condition :
New
Description

Single row 120BPH automatic 3 - 5 gallon bottle filler with PLC control system

Principle:

This gallon bottle filler is integrated with jar washing-filling-capping functions together;

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;

After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

Characters:

1, The whole gallon bottle filler is controlled by Mitsubishi PLC system, all cylinder travel is calculated in advance for driven distance;

2, The gallon bottle filler can work under automatic model, manual model is for machine checking;

Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg

20 Litre Single Row 120 BPH Gallon Filling Line

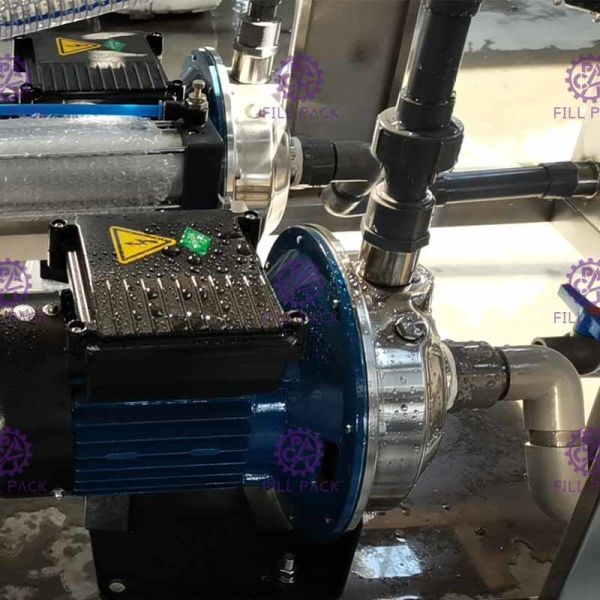

Water pumps details:

20 Litre Single Row 120 BPH Gallon Filling Line

Motor details:

20 Litre Single Row 120 BPH Gallon Filling Line

Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27
