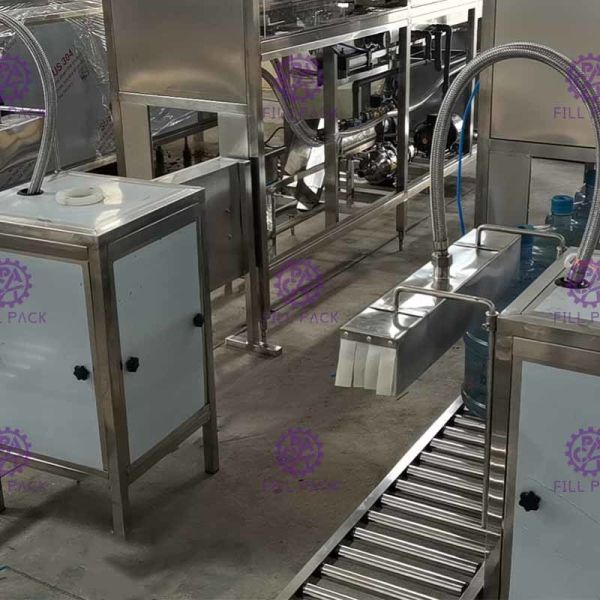

QGF-100 Automatic 120 Bph 5 Gallon Bottling Line / Machine / System
QGF-100 Automatic 120 Bph 5 Gallon Bottling Line / Machine / System
Specifications
Brand Name :
FILL PACK
Model Number :
QGF-120
Certification :
CE, ISO9001
Place of Origin :
ZhangJiaGang JiangSu China
MOQ :
1 set
Price :
USD $4300/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets/month
Delivery Time :
15-25 working days
Packaging Details :
wooden case packing
bottle size :
3~5 gallon bottle
capacity :
120 BPH
control :
PID
Material :
Stainless Steel 304
Packing size :
6.2CBM
Automatic Grade :
Semi Automatic
Voltage :
380V 3PH 50HZ or customized
Power :
2.68 KW
Weight :
950kgs
Packing :
wooden case
Description

QGF-100 automatic 5 Gallon bottling line/machine/system Engineer available to sevice overseas

This 5 Gallon bottling line is integrated with jar washing-filling-capping functions together;

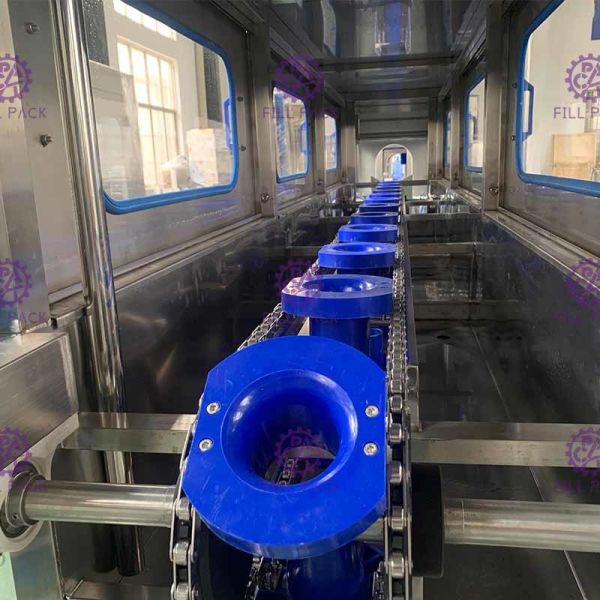

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

Characters

1, The whole 5 Gallon bottling line is controlled by PLC system, all cylinder travel is calculated in advance for driven distance;

2, The machine can work under automatic model, manual model is for machine checking;

Parameters
Rinsing pump 1
0.37KW
Rinsing pump 2
0.37KW
Filling pump
0.55KW
Cap sorting motor
0.09KW
Dimension
3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)
+ 2000mm conveyor
Weight
400kg

Electric Motor
