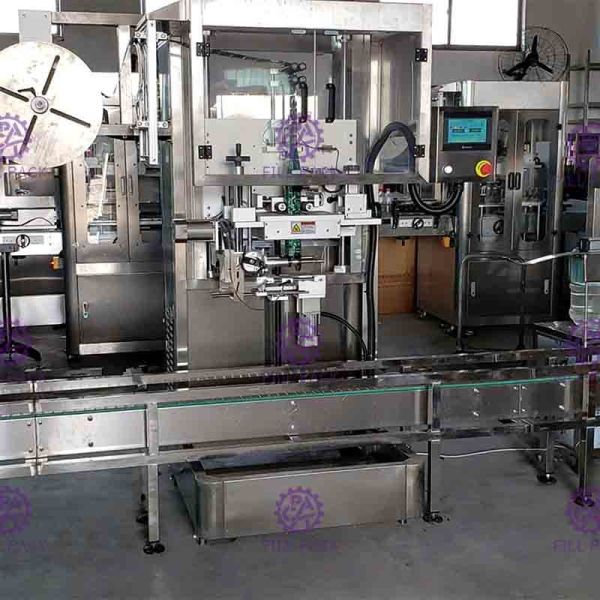

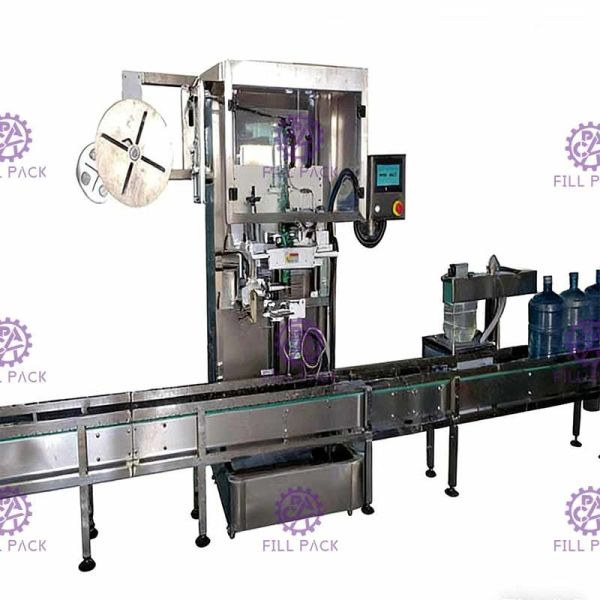

Gallon bottle Sleeve labeling machine

General:

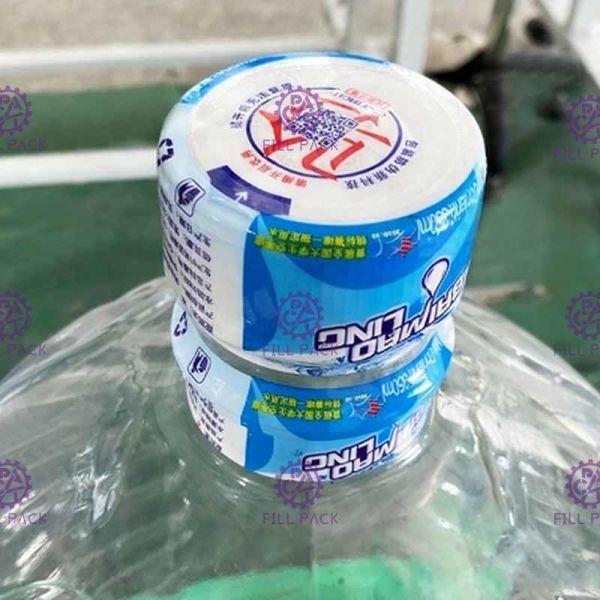

The Gallon bottle Sleeve labeling machine frame is applied for the sleeving the label on the gallon bottle mouth, it is made of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.
The special cutting system: adopting the whist and con-volute technology. The label cutting is flat, no burr.
The label location set assures the sleeving veracity.
Adopting model group design, module controlled; Achieve veracity and fast sleeving.
With the good quality touching operation screen, achieving operation by finger, easy and shortcut.
It is a high automatic packing machine. Just one person handles, easy operation.
Higher safely and stability for operation and saving time of manpower.

Working process:

Specifications:
1,This machine has the function of barrel photoelectric detection, label sleeving and label shrinking and it is perusing high speed, exact location, fewer worker and perfect packaging. It can apply to food and beverage industry and has the function of beauty and easily maintain.
2, Accurate sleeve labeling is achieved by setting the photoelectric system of the bottle feeding and the delay time of the label feeding system.
3, Unit cutter head plane designed in China which apply to ∮50mm—∮64mm mouth of 3-5 gallon bottle. You never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and continence which is ahead of other congener products.
4, Single shrinking label feed plane, tension height which is continent to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient, besides the cut place is absolutely exact.
5, Label feeding equipment: driving synchronized tensity control the supply of label, the supply ability is 1.5meters per minute, volume label supply plane is ∮500mm, the internal diameter of paper tube will be 4’ ,8’,10’. the configuration of label feeding is stable tensity which enable the exact length of label and the stable, quick supply of label.
6, The center pillar applies step by step shoot label structure and the speed is 100-150B per minute.
7, The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
8, Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

Voltage :1, Host machine: AC220V, 50/60HZ, 1.5-2KW
2, Shrinking machine: AC380V, 6KW(electrical heat) 3 phase
Production speed :900-2000BPH
Diameter of label :∮28mm-∮125mm
Length of label : 30mm-250mm
Thickness of label: 0.035mm-0.13mm
Material of label: PVC, PET, OPS
Size: 1000*800*2000mm

Configuration table of machine parts:

The main configuration table and function of automatic sleeve labeling machine:

Set up:
