DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
DX51D 0.12mm Galvanized Steel Coil 600 - 2000mm Width Sheet Strip
Specifications
Brand Name :
TISCO
Model Number :
SGCC SECC SGCD PPGI DX51D DX54D S250GD S550GD
Certification :
ce, ISO9001,RoHS, IBR
Place of Origin :
Jiangsu，China
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Ton/Tons per Month
Delivery Time :
3-15 days
Packaging Details :
Covered with a layer of plastic film and cardboard, packed on the wooden pallets, bound with iron belt, loaded in the containers
Standard :
AiSi, ASTM, bs, DIN, GB, JIS
Processing Service :
Cutting
Application :
ROOF
Technique :
Cold Rolled
Surface Treatment :
galvanized
Width :
762MM/914MM/1000MM
Type :
Galvanized Steel coil
Description

— Galvanized Steel Coil —

Description
What is standard galvanized thickness?
What is the thickness of a galvanized coating? When it comes to the specification of hot dip galvanizing, most contractors know that to be standards compliant, 7mm steel requires an average coating thickness of '85 microns'.You can tell that metal is galvanized when it has a pattern to it that is known as a spangle pattern. A spangle pattern almost looks like someone dipped a sponge in gray paint and then sponge-painted the metal. You'll notice darker and lighter spots, much like you would see when a wall is sponge painted.

Standard astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc
Grade DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc
Thickness 0.12-3.0mm (customize, above 3.0mm available)
Width 600-2000mm (customize)
Length as customer requirements
Coil inner diameter 508mm/610mm (customize)
Zinc coating 20-600g/m2
Raw material cold rolled base. (hot rolled base also available)
Technique hot dipped. (electro also available)
Coil weight 3-8 tons
Tolerance thickness +- 0.02 or +- 0.04, width +-5mm
Spangle type zero spangle, small spangle, regular spangle, big spangle
Surface treatment chromated/non-chromated, oiled/non-oiled, anti-fingerprints
Certification CE, ISO9001-2008, SGS
Monthly output 17000 tons
Packaging 3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside
Landing port qingdao/shanghai/tianjin port
Payment terms T/T, L/C, western union paypal etc
Delivery time it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized
MOQ as customer needs. reminder: more quantity reduce your purchase cost greatly
Inspection third-party test
Cooperate brand anshan steel, baotou steel, jiangsu shagang etc

Usage Grade Yield Strength (MPA) Tensile Strength (MPA) Elongation rate %
Punching galvanized steel DX51D+Z ~ 270-500 >=20
DX52D+Z 140-300 270-420 >=22
DX53D+Z 140-260 270-380 >=26
DX54D+Z 140-220 270-350 >=30
Structure galvanized steel S220GD+Z >=220 >=300 >=18
S250GD+Z >=250 >=330 >=17
S280GD+Z >=280 >=360 >=16
S320GD+Z >=320 >=390 >=15
S350GD+Z >=350 >=420 >=14
S400GD+Z >=400 >=470 ~
S500GD+Z >=500 >=530 ~
S550GD+Z >=550 >=560 ~

Product Details

Surface Details

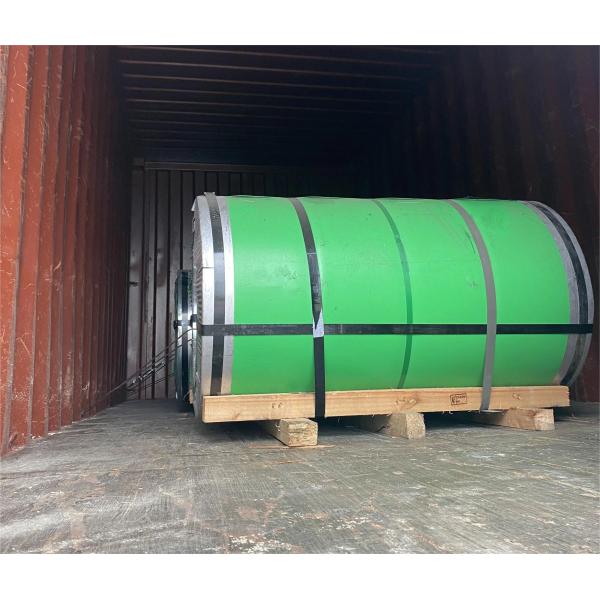

Packing and Shipping

Production Line

Certificates

Contact

Jiangsu Lianzhong Metal Products (Group) Co.,Ltd

sales03@jslzsteel.com

Mob:+8615251641660

Wechat: +8615251641660

WhatsApp:+8615251641660
