Railway Steel Hex Bolt Din 933 934 Grade 8.8 10.9 Full Thread Black Oxide
Railway Steel Hex Bolt Din 933 934 Grade 8.8 10.9 Full Thread Black Oxide
Specifications
Brand Name :
MD
Model Number :
M6-M12
Certification :
ISO
Place of Origin :
Handan Yongnian
MOQ :
1pieces
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10000pieces/day
Delivery Time :
25-30days
Packaging Details :
Boxes On Pallet
Material: :
Iron
Colror: :
black
Label :
Customers' Requirment
Grade: :
8.8
Size :
M6-M30
Type :
Hexagon Head Bolt
Description

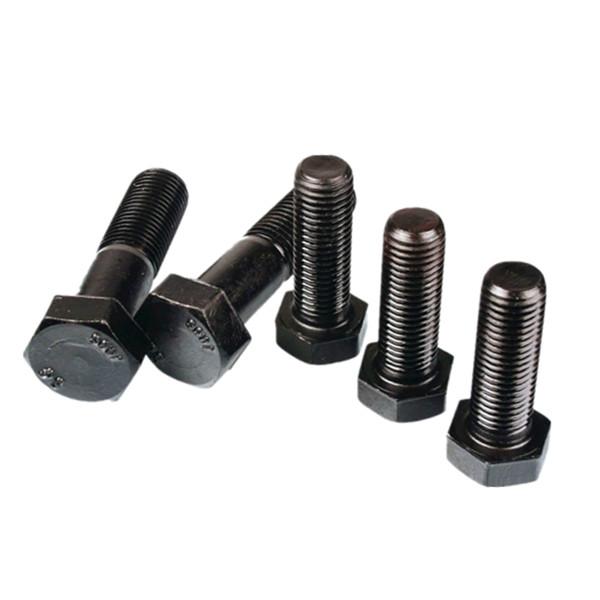

Railway Steel Hex Bolt Din 933 934 Grade 8.8 10.9 Full Thread Black Oxide

Products Description:

This product name is Steel Hex Bolt Din 933 934 Grade 8.8 10.9 Full Thread Black oxide,the size is M5*20mm,the surface treatment of hex bolt is black oxide,Grade is 4.8 or 8.8,the materials are of high quality carbon steel,annual sales reached three million dollar.
Hexagon head bolts are used widely. The hexagon head is designed for easy usage,
and it performs well in balance between force application and reception. The external appearance of these products match and to be used together with the internal parts, for example, nuts, and then to fasten the components.

application

Steel structures,multi-floor,high-rise steel structure, buildings,industrial buildings,high-way,railway,steel steam,tower,power station,and other structure workshop frames

Specification

nominal diameter d M12 M16 M20 M22 M24 M27 M30 M36
screw pitch P 1.75 2 2.5 2.5 3 3 3.5 4
b max 23 28 33 34 37 39 42 50
min 21 26 31 32 34 37 40 48
ds max 15.2 19.2 24 26 28 32 35 41
k max 8.45 10.75 13.9 14.9 15.9 17.9 20.05 24.05
min 7.55 9.25 12.1 13.1 14.1 16.1 17.95 21.95
s max 22 27 32 36 41 46 50 60
min 21.16 26.16 31 35 40 45 49 58.8
