DIN603 Galvanised Steel Bolts , Exterior Carriage Hardened Carriage Bolts Chrome
DIN603 Galvanised Steel Bolts , Exterior Carriage Hardened Carriage Bolts Chrome
Specifications
Brand Name :
J & M, JM
Model Number :
GB/T12-85
Certification :
ISO
Place of Origin :
Hebei,China
MOQ :
1 TON
Price :
Negotiate
Supply Ability :
300 ton per week
Delivery Time :
15-20Work Days
Packaging Details :
Bag+Wooden Pallets
Material :
45# steel
Length :
15mm--300mm
Surface treatment :
Galvanized
Finish :
Carbon Steel
Effect :
Fixed
Description

DIN603 Galvanized Carriage Bolts Of Chrome For Fastening Connections

Product Description

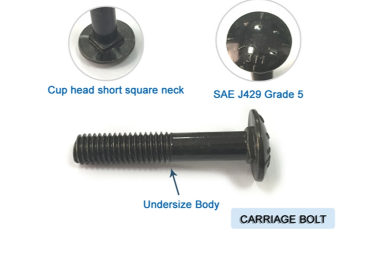

Carriage Bolt ,Coarse Thread. A carriage bolt, also known as a coach bolt, has a domed or countersunk head,

and the shank is topped by a short square section under the head.

The square section grips into the part being fixed (typically wood), preventing the bolt from turning when

the nut is tightened.

All Carriage Bolts under 6 inches are fully threaded. Sizes over 6 inches in length have a shoulder.

Supplied complete with hex nuts, washers available separately.

Specification
Standard: ASME B 18.5, DIN603, DIN604, DIN608
Size: 1/4”-1”, M5-M20
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass
Grade: SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9
Thread: M, UNC, UNF
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.
parameter
Diameter Length Head Type Finish
M6 20-150mm Cup Head Galvanised
M8 20-180mm Cup Head Galvanised
M10 25-400mm Cup Head Galvanised
M12 40-500mm Cup Head Galvanised
M16 45-500mm Cup Head Galvanised
M20 50-600mm Cup Head Galvanised
