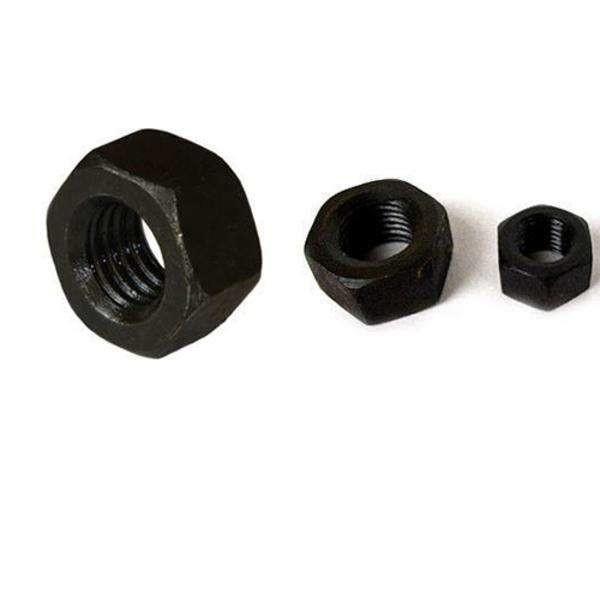

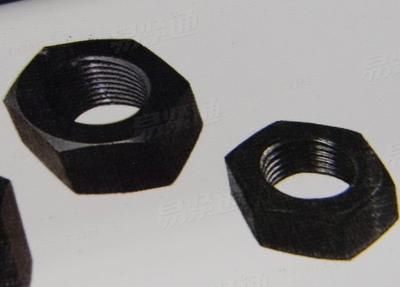

Din 934 M20 Galvanized Cap Nuts Plain Black Surface Treatment Oxide HDG / Zinc Plated
Din 934 M20 Galvanized Cap Nuts Plain Black Surface Treatment Oxide HDG / Zinc Plated
Specifications
Brand Name :
MAIDE
Model Number :
M6-M30
Certification :
ISO
Place of Origin :
Yongnian，Hebei,China
MOQ :
1 TON
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
20-30 days
Packaging Details :
Bag+Wooden Pallets
Color :
Black
Size: :
5-64mm
Grade :
4/6/8/10/12
Standard :
GB,ISO
Material :
Iron
Description

Din 934 M20 Galvanized Hex Nut Plain Black Surface Treatment Oxide HDG And Zinc Plated

Product Description

Item Hex nut
Standard DIN934,GB,ISO
Size M5-M64
Material Carbon steel(Q235,Q195) & Stainless steel (A2 OR A4)&Alloy steel(35#,45#,40cr)
Surface treatment Plain, Black oxide, zinc plated(white,yellow),Hot dip galvanized,Polishing
Shape Hex nut
Effect Used widely, the fastening force is relatively large.
Trade Terms FOB,CIF
Payment Terms T/T,L/C
Lead time 7-15 days if goods are in stock
Shipment Port Tianjin or Qingdao
Delivery Time Normally 20-30 days or according to the volume to determine the delivery time.
Product parameters
Thread
Specifications		 To The Margin(MM) Height H(MM) Circumference Diameter Every 1000/KG
Nominal Size Tolerance Nominal Size Tolerance
M1.6 3.2 -0.16 1.3 ±0.2 3.7 0.075
M2 4 1.6 4.6 0.119
M2.5 5 2 5.8 0.22
M3 5.5 2.4 6.3 0.393
M4 7 -0.2 3.2 ±0.24 8.1 0.844
M5 8 4 9.2 1.24
M6 10 5 11.5 2.317
M8 14 -0.24 6 16.2 5.674
M10 17 8 ±0.29 19.6 10.99
M12 19 -0.28 10 21.9 16.32
M14 22 11 ±0.35 25.4 25.28
M16 24 13 27.7 34.12
M18 27 14 31.2 44.19
M20 30 -0.34 16 34.6 61.91
M22 32 18 36.9 75.94
M24 36 19 ±0.5 41.4 111.9
M27 41 22 47.3 168
M30 46 -0.4 24 53.1 234.2
M36 55 28 63.5 370.9
M42 65 32 75 598.6
M48 75 38 86.5 957.3



Applications

Automotive industry, machinery manufacturing, pneumatic tools, furniture hardware, construction and so on.

Features
Wide range of applications, characterized by a larger fastening force, the disadvantage is that there must be sufficient space for installation, the installation can be used to live wrenches, open-end wrenches or glasses wrenches, the above wrenches require a lot of space for operation.
Din 934 M20 Galvanized Cap Nuts Plain Black Surface Treatment Oxide HDG / Zinc Plated
