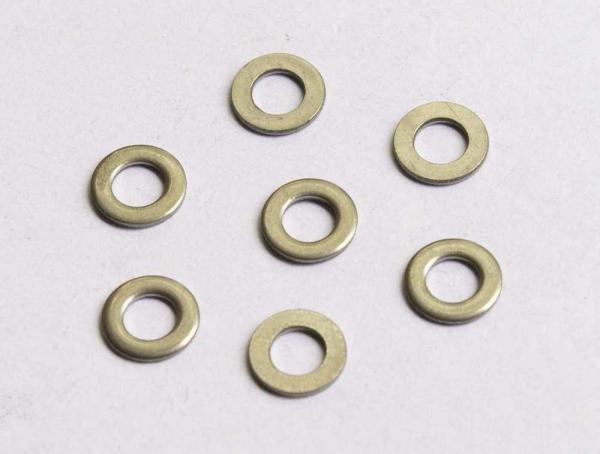

Round Extra Large Flat Metal Washers Carbon Steel Material High Strength
Round Extra Large Flat Metal Washers Carbon Steel Material High Strength
Round Extra Large Flat Metal Washers Carbon Steel Material High Strength
Round Extra Large Flat Metal Washers Carbon Steel Material High Strength
Specifications
Brand Name :
MAIDE
Model Number :
M3-M56
Certification :
ISO
Place of Origin :
Yongnian，Hebei,China
MOQ :
1TON
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-30work days
Packaging Details :
Bags (25kg)
Material :
Iron
Size :
M2-M56
Grade :
4.8
Color: :
White
Standard :
DIN BSW ANIS
Description

Round Small Flat Metal Washers M2-M56 With Carbon Steel Material High Strength

Product Description

The flat pad, which is mainly punched out with an iron plate, is generally a flat washer with a hole in the middle. This hole size specification is generally based on customer requirements.


Flat washers are usually thin pieces of various shapes to reduce friction, prevent leaks, isolate, prevent loosening, or distribute pressure. This material is used in many materials and structures to perform a variety of similar functions. Due to the limitations of the material and process of the threaded fasteners, the bearing surfaces of the fasteners such as the bolts are not large, so that the surface of the parts to be joined is protected to reduce the compressive stress of the bearing surface, and washers are used. In order to prevent loosening of the connection pair, loose-proof spring washers and multi-tooth lock washers, round nut stop washers and saddle-shaped, corrugated, conical elastic washers are used.

The Role of Flat Mat

1. Increase the contact area between the screw and the machine.


2. Eliminate damage to the surface of the machine when the spring pad is unloaded. When used, it must be a spring pad and a flat pad. The flat pad is facing the surface of the machine. The spring pad is between the flat pad and the nut.

Flat pad standard


National standards are different.
Here is the United States flat pad standard:

Specification Minor Diameter Outside Diameter Thickness Tolerance Thickness Tolerance Disintegration
USS 3/16 6.22～6.73 14.15～14.66 0.91～1.65 0.91～1.40
1.40～1.65 　　 　　 　　 　　
USS 1/4 7.80～8.31 18.47～19.02 1.30～2.03 1.30～1.65
1.65～2.03 　　 　　 　　 　　
USS 5/16 9.40～9.91 22.05～22.99 1.63～2.64 1.63～2.20
2.20～2.64 　　 　　 　　 　　
USS 3/8 11.00～11.51 25.22～26.16 1.63～2.64 1.63～2.20
2.20～2.64 　　 　　 　　 　　
USS 7/16 12.57～13.08 31.57～32.51 1.63～2.64 1.63～2.20
2.20～2.64 　　 　　 　　 　　
USS 1/2 14.15～14.60 34.75～35.69 2.18～3.35 2.18～2.70
2.70～3.00 　　 　　 　　 　　
3.00～3.35 　　 　　 　　 　　
USS 9/16 15.75～16.26 37.13～38.07 2.18～3.35 2.18～2.70
2.70～3.00 　　 　　 　　 　　
3.00～3.35 　　 　　 　　 　　
USS 5/8 17.30～18.24 44.27～45.21 2.74～4.06 2.74～3.20
3.20～3.60 　　 　　 　　 　　
3.60～4.06 　　 　　 　　 　　
USS 3/4 20.45～21.39 50.62～51.56 3.10～4.50 3.10～3.60
3.60～4.20 　　 　　 　　 　　
4.20～4.50 　　 　　 　　 　　
USS 7/8 23.65～24.58 56.97～57.91 3.45～4.88 3.45～4.00
4.00～4.30 　　 　　 　　 　　
4.30～4.88 　　 　　 　　 　　
USS 1 26.80～27.74 63.32～64.26 3.45～4.88 3.45～4.00
4.00～4.30 　　 　　 　　 　　
4.30～4.88 　　 　　 　　 　　
USS 11/8 31.57～32.51 69.67～70.61 3.45～4.88 3.45～4.00
4.00～4.30 　　 　　 　　 　　
4.30～4.88 　　 　　 　　 　　
USS 11/4 34.75～35.69 76.02～76.96 3.45～4.88 3.45～4.00
4.00～4.30 　　 　　 　　 　　
4.30～4.88 　　 　　 　　 　　
USS 13/8 37.85～39.24 82.30～83.69 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　
USS 11/2 41.02～42.42 88.65～90.04 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　
USS 15/8 44.20～45.59 95.00～96.39 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　
USS 13/4 47.37～48.77 101.35～102.74 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　
USS 17/8 50.55～51.04 107.70～109.09 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　
USS 2 53.72～55.12 114.05～115.44 3.89～5.41 3.89～4.40
4.40～5.00 　　 　　 　　 　　
5.00～5.41 　　 　　 　　 　　

Round Extra Large Flat Metal Washers Carbon Steel Material High Strength
