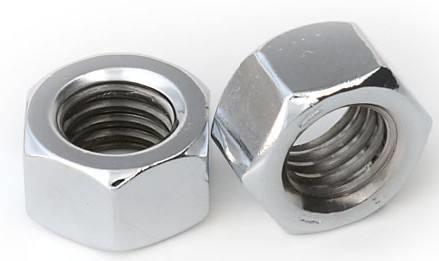

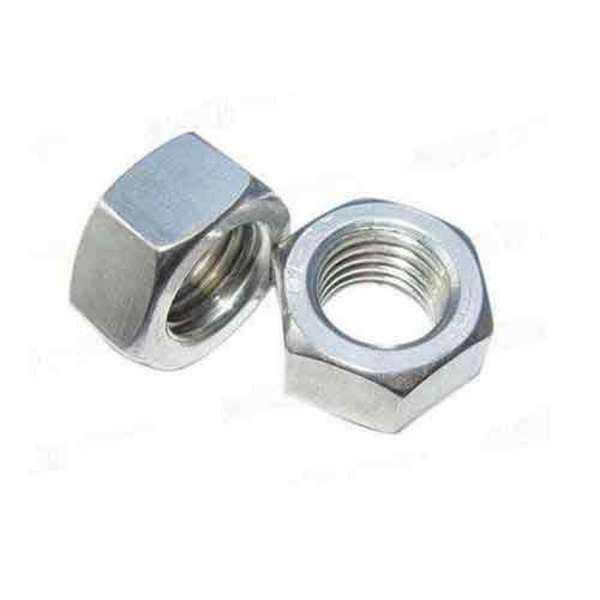

M12 Hexagon Lock Nut 1.75mm Pitch Coarse Thread Electroplating White Zinc​ Thickness 7mm
M12 Hexagon Lock Nut 1.75mm Pitch Coarse Thread Electroplating White Zinc​ Thickness 7mm
M12 Hexagon Lock Nut 1.75mm Pitch Coarse Thread Electroplating White Zinc​ Thickness 7mm
M12 Hexagon Lock Nut 1.75mm Pitch Coarse Thread Electroplating White Zinc​ Thickness 7mm
Specifications
Brand Name :
MAIDE
Model Number :
M6-M30
Certification :
ISO
Place of Origin :
Hebei,China
MOQ :
1 TON
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300 ton per week
Packaging Details :
Bag+Wooden Pallets
Types of :
Hexagon Nut
Model :
M12
Colour :
Black / White / Yellow / Natural Color
Sample or spot :
Spot
Standard :
GB
Description

Electroplating white zinc​ 1.75mm Pitch Coarse thread M12 Hex Lock Nut With Thickness 7mm

Product description:

Hexagon nut is used in conjunction with the bolt and screw, and it plays the role of fastening the machine parts.

The pitch of this product is 1.75mm, belong to coarse thread nuts.The difference between coarse thread nuts and fine thread nuts are: the size of the pitch is different. The pitch of coarse is larger.The thread section of coarse thread nuts are larger, so they are more suitable to bear greater tension and impact force. At the same time, they can be conveniently disassembled.

Features:


Easy to install
Integrity
No gasket required
Easy to disassemble
Reusable medium carbon steel
Can be used with 8.8, 10.9 and other high-strength bolts
By the US military-MIL-STD 1312 Vibration Test7.Results detected by Junker Test detection
Through Dynamic Test testing

application:


Automotive - cars, trucks, buses
compressor
Construction machinery
Wind power equipment
agricultural machine
Foundry industry
Drilling equipment
Shipbuilding industry
military
Mining equipment
Oil Drilling Rig (onshore or offshore)
public facilities
Rail
Drive system
Metallurgical equipment
Drilling hammer
Building and so on

Product parameters:

Thread
Specifications		 To The Margin(MM) Height H(MM) Circumference Diameter Every 1000/KG
Nominal Size Tolerance Nominal Size Tolerance
M1.6 3.2 -0.16 1.3 ±0.2 3.7 0.075
M2 4 1.6 4.6 0.119
M2.5 5 2 5.8 0.22
M3 5.5 2.4 6.3 0.393
M4 7 -0.2 3.2 ±0.24 8.1 0.844
M5 8 4 9.2 1.24
M6 10 5 11.5 2.317
M8 14 -0.24 6 16.2 5.674
M10 17 8 ±0.29 19.6 10.99
M12 19 -0.28 10 21.9 16.32
M14 22 11 ±0.35 25.4 25.28
M16 24 13 27.7 34.12
M18 27 14 31.2 44.19
M20 30 -0.34 16 34.6 61.91
M22 32 18 36.9 75.94
M24 36 19 ±0.5 41.4 111.9
M27 41 22 47.3 168
M30 46 -0.4 24 53.1 234.2
M36 55 28 63.5 370.9
M42 65 32 75 598.6
M48 75 38 86.5 957.3

M12 Hexagon Lock Nut 1.75mm Pitch Coarse Thread Electroplating White Zinc​ Thickness 7mm
