Easy Installation Adjustable Solar Panel Mounting System Hot Rolled Carbon Steel
Easy Installation Adjustable Solar Panel Mounting System Hot Rolled Carbon Steel
Easy Installation Adjustable Solar Panel Mounting System Hot Rolled Carbon Steel
Easy Installation Adjustable Solar Panel Mounting System Hot Rolled Carbon Steel
Specifications
Brand Name :
GQ
Model Number :
different sizes
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,, T/T, D/A, D/P
Supply Ability :
100tons per day
Delivery Time :
1-4weeks upon receipt of downpayment/LC.
Packaging Details :
bundled with steel strips
surface treatment :
galvanized
steel :
hot rolled carbon steel
process :
cold rolled
size :
different sizes
steel grade :
Q235B~Q345B
Application :
supports
Description

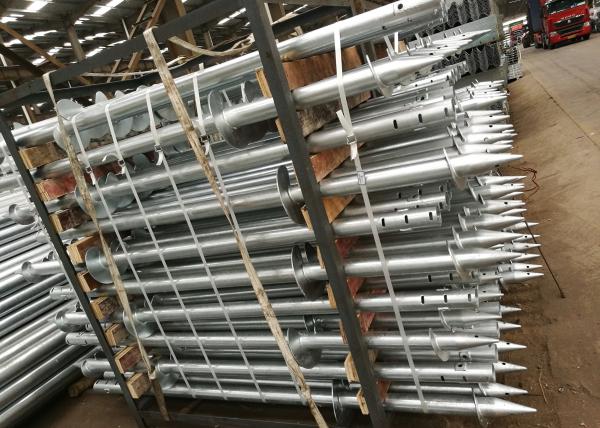

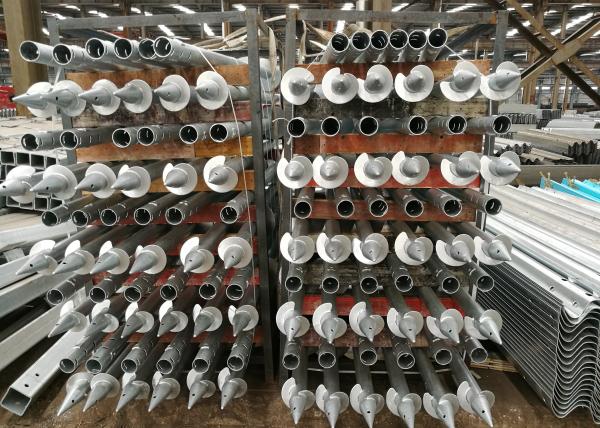

Solar Panel Mounting Structure,drill fundation, different sizes piles, supports

Name: drill fundation,

Standard: ISO DIN ANSI EN

Feature: Easily Assembled, Eco Friendly, Rodent Proof, Rot Proof

Applications: Fencing Systems

Flag Poles and Banners

Garden and Leisure

Sheds and Contaiers

Solar Power Systems and Street Lamp

Traffic sign and Event Structures

Length
L=1200
L=1500
L=1600
L=1800
L=2000
L=2100
Material
Q235B Q345B
Diameter/mm
48-219
Thickness/mm
2-4
Nut
M10-M16
Blade thickness/mm
2-4
Hot dip galvanizing
DIN
EN
ISO
1461-1999
Thickness of zinc layer
65-100
Hot Drawing parameters
10.5KN
18.75kn
21.5KN
27KN
32.5KN
35.25KN
Bearing capacity Parameters
25KN
32.5KN
35KN
40KN
45KN

47.5KN
Horizontal torsion
5.5KN
7.75kn
8KN
10KN
11.5KN
12.25KN

Company imformation



JiangSu Guoqiang Zinc Plating Industrial Co.,Ltd. Our company established in

1998.ranked among top 500 private companies of china .its totally 800.000sqm area

with more than 3000 empolyees .total output will exceed two million tons in 2017.

its the biggest manufacture of highway guardrail and solar panel braket in china .

the biggestmanufacture of ERW tubes .hot dip galvanized tubes in east Pat of china

as well as hot dip galvanizing processing .jiangsu guoqiang has more than 10 Lines of cold forming

processing .producing various kind of cold formed profile .it has 22 lines of hot dip

galvanzing .other products include spiral welder pipe .electricity Tower .highspeed rail

noise barrier etc.products already sold to around the world for more than 10 years

.jiangsu guoqiang has won good reputation with its good quality product but fair price .

Production lines:

Welded steel tube production: 12lines

Cold forming produciton: 8lines

Zinc coating produciton: 22lines

Powder coating produciton: 2 lines

Sheet pile: 1 line

spiral welded pipe: 3 lines

products already sold to around the worlds for more

than 10 years

High quality and good price !

No.1 solar panel mounting structures

supplier in China
