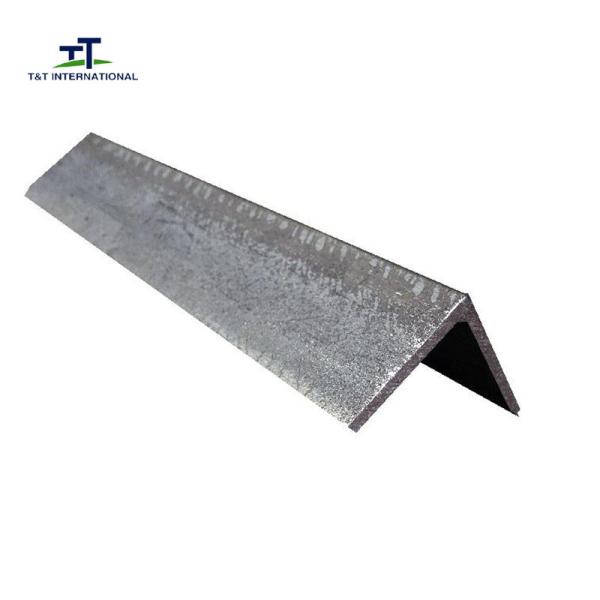

House Building L Shaped Steel Bar , Bright Steel Angle High Structural Stability
House Building L Shaped Steel Bar , Bright Steel Angle High Structural Stability
Specifications
Brand Name :
T&T
Model Number :
EQUAL
Certification :
ISO
Place of Origin :
CHINA
MOQ :
ONE BUNDLE
Price :
USD$630-720/TON
Payment Terms :
L/C, T/T
Supply Ability :
10000TON PER MONTH
Delivery Time :
5-8 DAYS
Packaging Details :
Nude packing/Canvas packing/Bundles packig
Surface treatment :
Hot Dip Galvanised
Technique :
Hot Rollled
Dimensions :
20*20*3mm-200*200*24mm
Length :
6m 9m 12m(OR Cut)
Material :
Q235/Q235B/Q345/Q345B/SS400
Package :
Standard Sea-worthy Packing,Packing in bundle with steel strips,in bundle or as your requirements
Product name :
Unequal Angle Bars/MS Angle/Galvanized angle steel
Keywords :
Angel Steel Bar,slotted angle bar,hot dip galvanized angle steel
Sample :
Sample Freely
Shipment :
Container Basis FCL or LCL,Container or in bulk
Deep Process :
Punched
Description

Q235 Hot Dip Galvanized Iron Angle Steel For House Building Galvanized Steel Angle Galvanised Steel Angle

We export the highest quality of steel products, including Angle steel, Channel steel, carbon steel , stainless steel, carbon steel, Low alloy steel, Shipbuilding steel, Boiler and Pressure Vessel Steel Plate, High Strength Steel, Bridge steel plate, Aseismic strength steel,Z15/25/35 Resisting avulsion steel, wear-resisting plate etc. They've been exported to overseas distributors, warehouses, and factories in the USA, Europe, Bangladesh, Sri Lanka, Egypt, Saudi Arabia, and other countries & regions.

We have stable supply from advanced mills and large quantities of various products in stock. The warehouses where we stock our goods are full-fledged. We have a professional technician team, which not only has decades of working experience in steel industry, but also has a deep & clear insight of the technology condition and the manufacturing state in the Chinese main steel mills and factory.

Quick Details of Galvanized Steel Angle

Commodity HR Hot rolled A36 SS400 steel angle bar price Philippines
Standard ASTM, JIS, DIN, EN, GB
Grade A36, SS400, Q195-Q345
Technique Hot Rolled
Type Equal Angle Bar / Unequal Angle Bar
Size 20*20*3mm - 200*200*20mm
Length 6m, 9m, 12m or as required
Payment Terms T/T, L/C
Delivery Time 20 days after get the deposit
Packing In bundles, standard export packing


Specification list:

EQUAL ANGLE STEEL GB/T9787-1988 GB/T706-2008
NO Dimension(mm) W*W*T Theoretical Weight (kg/m) NO Dimension(mm) W*W*T Theoretical Weight (kg/m)
1 25×25×3 1.124
2 25×25×4 1.459
3 30×30×3 1.373
4 30×30×4 1.786
5 40×40×3 1.852
6 40×40×4 2.422
7 40×40×5 2.976
8 50×50×3 2.332
9 50×50×4 3.059
10 50×50×5 3.77 38 100×100×14 20.611
11 50×50×6 4.465 39 100×100×16 23.257
12 60×60×5 4.57 40 110×110×7 11.928
13 60×60×6 5.4 41 110×110×8 13.532
14 63×63×4 3.907 42 110×110×10 16.69
15 63×63×5 4.822 43 110×110×12 19.782
16 63×63×6 5.721 44 110×110×14 22.809
17 63×63×8 7.469 45 125×125×8 15.504
18 70×70×5 5.397 46 125×125×10 19.133
19 70×70×6 6.406 47 125×125×12 22.696
20 70×70×7 7.398 48 125×125×14 26.193
21 70×70×8 8.373 49 140×140×10 21.488
22 75×75×5 5.818 50 140×140×12 25.522
23 75×75×6 6.905 51 140×140×14 29.49
24 75×75×7 7.976 52 140×140×16 33.393
25 75×75×8 9.03 53 160×160×10 24.729
26 70×75×10 11.089 54 160×160×12 29.391
27 80×80×6 7.376 55 160×160×14 33.987
28 80×80×8 9.658 56 160×160×16 38.518
29 80×80×10 11.874 57 180×180×12 33.159
30 90×90×8 10.946 58 180×180×14 33.383
31 90×90×10 13.476 59 180×180×16 44.542
32 90×90×12 15.94 60 180×180×18 48.634
33 100×100×6 90366 61 200×200×14 42.894
34 100×100×7 10.83 62 200×200×16 48.68
35 100×100×8 12.276 63 200×200×18 54.401
36 100×100×10 15.12 64 200×200×20 60.056
37 100×100×12 17.898 65 200×200×24 71.168

Chemical Composition:

Elements
Material		 Chemical Composition% Mechanical Property
C% Mn% S% P% Si% Yield Point (Mpa) Tensile Strength(Mpa) Elongation
(%)
Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30 >195 315-430 32-33
Q215 0.09-0.15 0.25-0.55 <0.05 <0.045 <0.30 >215 335-450 26-31
Q235 0.12-0.20 0.30-0.70 <0.045 <0.045 <0.30 >235 375-500 24-26
Q345 <0.20 1.0-1.6 <0.040 <0.040 <0.55 >345 470-630 21-22

Company strength

Our company has long-term cooperation relations with the well-known domestic enterprises. The cooperation period has been more than 10 years, and the annual supply volume is up to 20,000 tons, and we are lucky to be the steel supplier for the subway project of the Chinese government. After years of efforts and accumulation, our company has been widely praised by customers and become a favorite partner of many well-known enterprises.

Payment Terms T/T, L/C, Western Union, Trade Assurance, Cash or as required
Price Terms FOB, CRF, CIF, EXW
Delivery Time Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Packing steel wire bundle or as costumer requirement.
Shipping Details

LCL

FCL

Bulk Shipment
Container Info

20ft GP: L5.8m * W2.13m * H2.18m , about 27 CBM, Loading Max.27 Tons

40ft GP: L11.8m * W2.13m * H2.18m, about 54 CBM, Loading Max.27 Tons

40ft HG: L11.8m * W2.13m * H2.72m, about 68 CBM, Loading Max.27 Tons

FAQ

Q: Are you trading company or manufacturer ?

A: We are agent of factory.

Q: How long is your delivery time?

A: 10-15 days after received your deposit or original L/C .

Q: Do you provide samples ?is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T,100% L/C at sight, Cash, Western Union.
