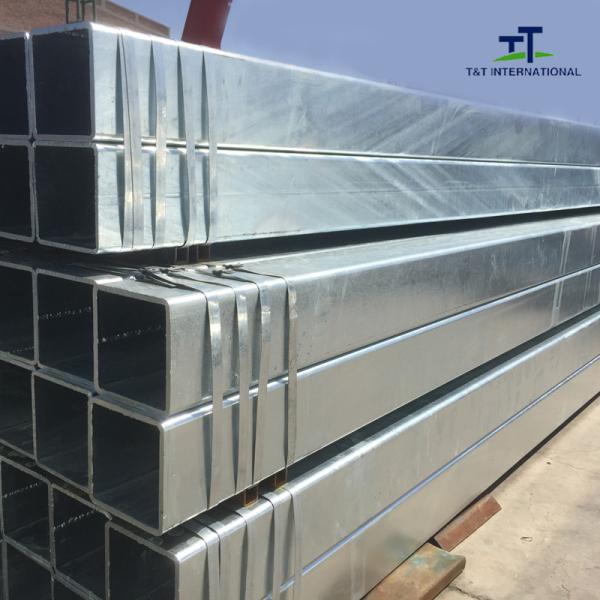

Curtain Wall Galvanised Rectangular Box Section GB Standard Q195 Q235 Q345
Curtain Wall Galvanised Rectangular Box Section GB Standard Q195 Q235 Q345
Specifications
Brand Name :
T&T
Model Number :
SQUARE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
ONE BUNDLE
Price :
USD$630-750/TON
Payment Terms :
L/C, T/T
Supply Ability :
1000TON PER MONTH
Delivery Time :
5-20 WORK DAYS
Packaging Details :
Nude packing/Canvas packing/Bundles packig
Section shape :
Square
Alloy or not :
Non-alloy
Technique :
ERW
Thickness :
0.5-16mm
Application :
Structure Pipe,Building, Curtain wall
Surface treatment :
Galvanized
Grade :
Q345 Q235
Standard2 :
BS 1387,GB/T 3091-2001
Standard :
ASTM,GB
Secondary or not :
Non-secondary
Length :
5.8-12m,or cut as request.
Material :
Q195/Q215/Q235/Q345,Q195-Q345 20# SS400
Outer diameter(round) :
15 - 610 mm
Product name :
Galvanized Square Steel Tubes,Welded Steel Pipe,gi pipe
Surface :
Galvanized Coated,zinc coated 200-700g/sqm
Shape :
Square
Description

GB Standard Hot Dipped Galvanized Steel Pipe Galvanized Square Steel Tubing Curtain Wall Use Galvanized Square

Our company is a professional manufacturer of galvanized steel pipe, welded pipe ,galvanized square/Rectangular tube and scaffolding products. we believed in the best quality, reasonable price, on time delivery and super service.


Quick Details of Galvanized Steel Square Tubing:

Outer Diameter

Square pipe: 20*20mm~400*400mm

Rectangular pipe: 20*40mm~300*500mm

Wall Thickness

Round pipe: 0.95~17.75mm

Square and rectangular pipe: 1.7~16mm

Length3-12M according to client requirement
StandardHollow section: ASTM A500, EN10219, EN10210, JIS3466, GB/T 6728
MaterialGr.A, Gr.B, Gr.C,
S235, S275, S355,
A36, SS400,
Q195, Q235, Q345
CertificateISO 9001:2008,SGS, BV, CCIC etc
Finish of pipe

Hot dipped galvanized with zinc 220~260g/m2;

Pre-Galvanized with zinc 30~150g/m2
Painted with black/varnish lacquer;
Oil on the surface to prevent rust;
Bare pipe without painting:

Pipe End

Plain end/ Bevel end;

Groove end;

Joint with flange;
Threaded on two ends, one end with coupling, one end with plastic cap

Marking

As per client requirement or mill standard

Painting method: Spray white paint

PackingOD not less than 273mm: Loose packing,piece by piece.
OD less than 273mm: In hexagonal seaworthy bundles packed by steel strips.
small sizes nested into big sizes.
Applications

Construction / building materials steel pipe

Steel structure

Scaffolding pipe
Fence post steel pipe
Fire protection steel pipe
Greenhouse steel pipe
Low pressure liquid, water, gas, oil, line pipe
Irrigation pipe
Handrail pipe

TechinicalERW (high - frequency welded)
Trade TermFOB, CFR, CIF, EXW, FCA
Payment TermT/T, LC
Delivery Time15-45 days (based on quantity) after receiving advanced payment by T/T or LC .
Main MarketSoutheast Asia, South Asia, Middle East, Europe,
Middle&South America, Africa and Oceania


Specification of Galvanized Steel Square Tubing:

OD mmWT mmOD mmWT mmOD mmWT mmOD mmWT mm
15x150.5-2.028x280.5-3.075x751.0-5.0160x1602.5-12
16x160.5-2.030x300.5-3.2580x801.0-5.0180x1802.5-12
18x180.5-2.035x350.5-3.590x901.0-6.0200x2002.5-12
19x190.5-2.040x400.8-3.75100x1001.0-6.0300x3002.5-12
20x200.5-3.050x500.8-3.75120x1202.5-12400x4002.5-12
24x240.5-3.060x601.0-4.0140x1402.5-12500x5002.5-12
25x250.5-3.070x701.0-5.0150x1502.5-12600x6002.5-12


Material Analysis:

ElementsChemical Composition%Mechanical Property
MaterialC%Mn%S%P%Si%Yield PointTensile StrengthElongation
(Mpa)(Mpa)(%)
Q1950.06-0.120.25-0.50<0.05<0.045<0.3>195315-43032-33
Q2350.12-0.20.30-0.70<0.045<0.045<0.3>235375-50024-26
Q345<0.201.0-1.6<0.04<0.04<0.55>345470-63021-22

Packing:

1.In bundle, black, caps, beveled ends or plain ends

2.OEM/ customer's REQUEST

3.Marks: Standard * Material*OD*WT*L *Lott No./required

Shipping:

a. Length: ≤5.85m, loaded in 20FT Container, Max 22tons

b. Length: ≤11.85m, loaded in 40 FT Container, Max 27tons

c. Length: ≥12m, shipped by bulk vessel. FILO terms

Delivery time :about 20-30 days after received deposit.

FAQ

Q: Are you trading company or manufacturer ?

A: We are agent of factory.

Q: How long is your delivery time?

A: 10-15 days after received your deposit or original L/C .

Q: Do you provide samples ?is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T,100% L/C at sight, Cash, Western Union.
