High Durability Galvanized Steel Coil , DX51D+Z Grade With JIS Standard

Our Company Has Been Specialized In
The Production And Sales Of Various Steel Products Like GI Coil, GL Coil, PPGI(PPGL)
Coil,Stainless Steel Coil,Stainless Steel Sheet,Steel Pipe And Export To More Than 50 Countries.

Welcome To Visit and Long Term Cooperation With Your Esteemed Company!

Quick Details

• Standard:ASTM,BS,DIN,JIS, EN
• Grade:DX51D+Z
• Thickness:0.15-4.0mm
• Place of Origin:China (Mainland)
• Model Number:DX51D+Z
• Type:Steel Coil
• Surface Treatment:Galvanized
• Application:Construction & Base Metal
• Width:600-1500mm
• Length:Steel Coil
• Description:Galvanized Steel Coil
• Base Metal:DC01
• Available Dipped Layers:50-275g/m2
• Inner Diameter:508-610mm
• Available Surface Treatment:Passivating & Oiling & AFP & Filming
• HS Code:72104900
• Approved Certificate:CE & SGS

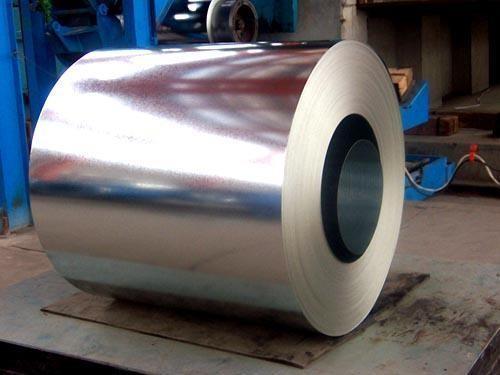

High Durability Galvanized Steel Coil

Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)

Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m²

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming

Mechanical Properties
