30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
1
Price :
FOB 0.3 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Model Number: :
Steel grating clamps
Material: :
Iron,Stainless Steel q235
Finish Treatment: :
1.galvanized, 2.untreated(black self-color), 3.painted
C-B: :
100mm and 50mm
Bearing Bar: :
5mm and 6mm
China Standards :
YB/T 4001.1-2007
delivery time: :
5days after deposit
type :
type A B C
Description

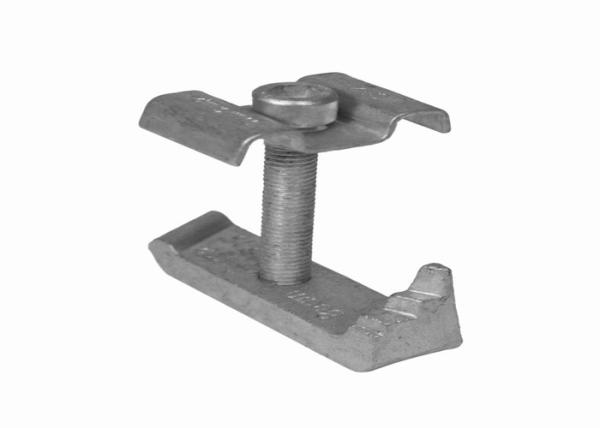

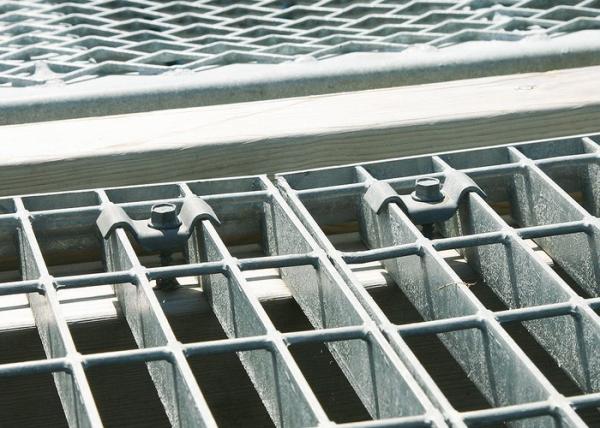

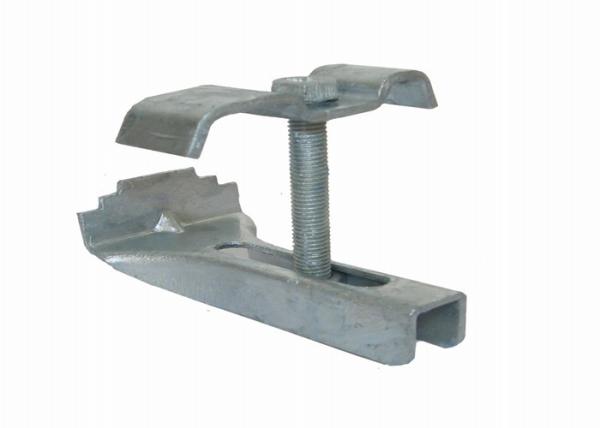

Galvanized steel grating saddle clamps steel grating M clips

We design and manufacture many kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating, I Bar Type Steel Grating and other gratings. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We also supply standard steel grating and in customized shapes per client's requirements.

30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement but 30, 40, 60mm are recommended. America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel ASTM A36 or Q235) ,Stainless Steel 304 or 316
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

ITEM NO. 7910901
SPEC. 88.5*48mm
MATERIAL Carbon steel
FINISH Hot galvanizing
Length of screw 75mm
MOQ 2000pcs
PACKAGING With carton outside
DELIVERY 40 days after receiving deposit
PAYMENT T/T 30% as deposit, 70% paid upon the copy of B/L
TERMS OF DELIVERY By sea /air
REMARK ODM and OEM service can be supplied
No. Terms Description
1 Material Low carbon,middle carbon,stainless steel
2. Material standard GB700-88,ASTM(A36),BS4360(43A),AS3679
3. Bearing bar size

20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5,

40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc,
4. Bearing bar pitch 15,20,25,30,33,35,38,40,50,60,80,90mm
5. Cross bar pitch 24-200mm
6. Surface treatment Hot dipped galvanized,painted,self-color,
7. Grating standard

YB/T4001.1-2007,

ANSI/NAAMM(MBG531-88),

BS4592-1987,

AS1657-1985
8. Bearing bar type F,I ,S,IS type
9. Application Floor walkway,industrial platform,stair tread,metal ceiling
10. Feature

Fine appearance,anti-corrosive,simple installation,light weight,

high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion
11. Payment terms TT,L/C
12. Package

Pallets in containers packed by steel strap and worthy sea shipping,

or according to the customers' requirements
13. Product capacity

10days for a 20”

30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners30 X 3 M Galvanised Grating Clips , 5mm / 6mm Bearing Bar Saddle Clip Fasteners
