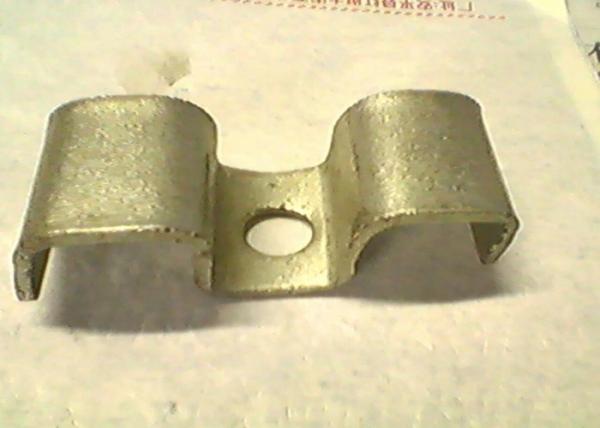

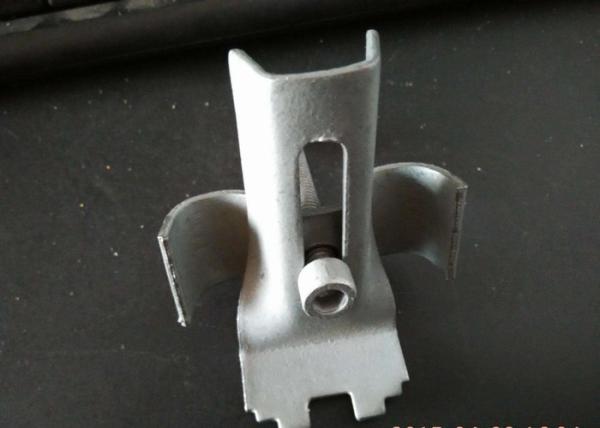

Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps
Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps
Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps
Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
1
Price :
FOB 0.3 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Model Number: :
grating clamps
Material: :
Iron,Stainless Steel
thickness of bearing : :
3mm and 4mm
spacing :
100mm and 50mm
Bearing Bar: :
5mm and 6mm ,7mm
surface treamment:: :
untreated, hot dip galvanized, painted,
delivery time: :
15 days
Dimensions: :
M pattern type A B C
Description

Galvanized grating installation saddle clamps galvanized steel grating clip

steel grating clamps for walkway ,construction

  • Material of clamp: Low Carbon Steel or stainless steel
  • Fabricating Method: press , is made of load flat steel bar and cross rods, placed, horizontally and vertically, and at an equal pitch apart, by welding with 200-ton

hydraulic resistance automatic welding equipment, then cutting, punching and banding ends.

  • Load Bearing Steel Bar Spacing : distance between the two neighboring load bearing steel bars is 30mm or 40mm,50mm .
  • Cross Rod spacing : distance between two neighboring cross rods is usually 30mm or 100mm.

1 Anti-corrosive, resisting to acid and alkali

2 Light weight, great load-bearing capacity, on-slip and safe, easy installation

3 Economical of materials, being sturdy and durable, ventilation

4 Easy to clear and attractive appearance.

Specification of steel grid mesh

NO. Series distance Traverse line distance Load flat specifications (wide× thick)
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
NO. Series distance Traverse line distance Load flat specifications (wide× thick)
32×5 40×5 45×5 50×5 55×5 60×5
1 30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
2 40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
3 60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/5

Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps

Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps

How to Order Grating Clamps:

1. Bearing Bars Center to Center and Cross Rods Center to Center.

2. Depth and Thickness of Bearing bars.

3. Surface:Serrated or Smooth.

4. Dimensions of Areas.

5. Span (Direction of Bearing Bars).

6. Finish:Mill,Black Paint, or Galvanized.

7. Material:Steel,Stainless Steel,or Aluminum

8. Banding or no Banding.

Our Services
  • 15-18 hours on-line service
  • Excellent service for pre-sale,on-sale and after-sale
  • Competitive price with superior higher quality products
  • Real factory with its own workshop
  • Strict test before delivery

Packing

Galvanized Grating Saddle Clips , SGS Installation Steel Grating Clamps
