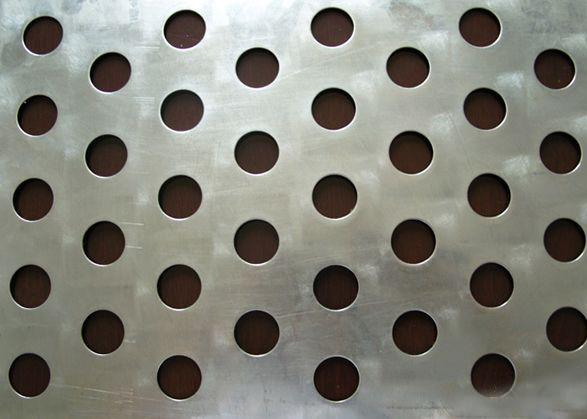

Round Hole Perforated Steel Sheet , Q235 Steel Galvanised Perforated Sheet
Round Hole Perforated Steel Sheet , Q235 Steel Galvanised Perforated Sheet
Round Hole Perforated Steel Sheet , Q235 Steel Galvanised Perforated Sheet
Round Hole Perforated Steel Sheet , Q235 Steel Galvanised Perforated Sheet
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
low carbon steel plate, stainless steel plate,etc
Surface treatment :
Galvanized or pvc coated
Hole shape :
Square,round,hexagonal,etc
Hole :
0.08~100mm
Thickness :
0.3~8mm
Color :
Sliver, red,green.etc
Filter rating :
40%~81%
Width :
1m,1.22m,1.55m
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Description

1) Material

  • low carbon steel plate
  • stainless steel plate: SS 201,SS304,SS304L,SS316,SS316L,SS321 etc.
  • aluminum plate,aluminum alloy plate
  • copper plate
  • nickel plate
  • titanium plate

2) Hole shape

  • long square hole
  • square hole
  • round hole
  • triangle hole
  • hexagonal hole
  • The company can process the different kinds of type accroding the customer order

3) Surface treatment

  • galvanized: electro galvanized (zinc coated:8-13g/m2)
  • hot-dipped galvanized (zinc coated:30-60g/m2)
  • Pvc coated
  • Polishing

2. Characteristics:

  • Easy installation
  • Can be painted or polished and anodizing.
  • The thickness of materials is wide range from 0.3mm-8mm.
  • Different hole size patterns
  • Attractive appearance.
  • Lightweight and Durable.

3. Specifications

Plate
Material		 Thickness of
Metal (mm)		 Hole
Dia. (mm)		 Pitch
(mm)		 Sheet
Width (m)		 Sheet
Length (m)		 Porosity
(%)		 Weight
(kg/m2)
Rolling
plate		 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2.0 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5.0 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless
steel plate		 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum
plate		 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23

HOLE CENTERS OPEN AREA (%) HOLES P.S.I. SHEET SIZE GAUGE
STEEL SHEET - STAGGERED HOLES
1/32 3/64 3/64 1/16 5/64 3/32 1/8 1/8 5/32 3/16 3/16 1/4 5/16 3/8 1/2 1/16 3/32 5/64 1/8 1/8 5/32 3/16 7/32 3/16 1/4 5/16 3/8 7/16 9/16 11/16 22 23 34 23 36 33 40 29 63 51 33 40 46 40 48 295 132 169 74 74 47 33 24 33 18 12 8 6 4 2 36" x 120" 36" & 48" x 120" 36" x 120" 36" & 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 48" x 120" 36" & 48" x 120" 48" x 120" 36" & 48" x 120" 36" & 48" x 120" 22 22 thru 18 24 22, 20, 18, 16 22, 20, 18, 16, 14 20, 18, 16, 14 24, 22, 20, 18, 16, 14, 12, 11 12 24, 22, 20, 18, 16 24, 22, 20, 18, 16, 14, 12 20, 16, 10, 3/16 20 thru 1/4 18 thru 14, 10 thru 1/4 20, 16, 14, 12, 11, 10, 3/16, 1/4 20, 16, 14, 11, 10, 3/16, 1/4
STEEL SHEET - STRAIGHT HOLES
0.027 0.055 23 400 36" x 120" 26

4. Application

Perforated metal is widely used in filter of automobiles internal-combustion engine, sieving of mine, medicine,

grain, sound insulation of room, ventilate of grain depot, etc.
