0.5mm Thickness Perforated Metal Mesh 304 /316 Stainless Steel Material
0.5mm Thickness Perforated Metal Mesh 304 /316 Stainless Steel Material
0.5mm Thickness Perforated Metal Mesh 304 /316 Stainless Steel Material
0.5mm Thickness Perforated Metal Mesh 304 /316 Stainless Steel Material
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
Stainless Steel
Tolerance :
+/-0.05mm
MOQ: :
2pcs
Filter :
64%
Thickness :
0.3~8mm
Widthness :
1000mm~2000mm or customized
Length :
1000mm~6000mm or customized
Description

Stainless Steel 304 /316 0.5mm Thickness Perforated Metal Mesh Square

Specifications of High quality wire mesh /screen punching metal perforated sheet

  • Plate thickness:0.2-1mm
  • Length of plate:20m
  • Aperture size:1.5-10mm

High quality wire mesh /screen punching metal perforated sheet Perforate way:

  • super thick perforation,
  • super thin perforation,
  • micon aperture perforatio,
  • wire cutting perforation

Material of perforated mesh screen:

  • stainless steel ,
  • low carbon steel,
  • galanizing ,
  • PVC,
application of High quality wire mesh /screen punching metal perforated sheet :
  • Parclose for noice in supper highway ,railway,the subway
  • Construction wall
  • Acoustic panel in fatory workshop,generator room and other noice source
  • Acoustic material in ceiling,wall board
  • Decorate plate in stairs,balcony,environmental protection tables
  • Protetion cover for machine
  • Screen cover for loudspeaker box
  • Fruit basket,food cover ,compote in kitchen
  • Shelf nework in market
  • Decoration exhibition
  • Ventilation net in grain depo
  • Water percolation in football field turf

Features of High quality wire mesh /screen punching metal perforated sheet :

  • Easy to process
  • Can spray paint or burnishing
  • Easy to fix
  • Various thickness,aperture shape and permutation
  • Good effect of absorption
  • Light weight
  • Long time service
  • Precise size

6. Specifications

Specifications Options
1.Material

AISI304/304L/

201/316/316L

 Aluminum/pure Al/alloy Al Mild/Iron steel

Galv.steel/

Gal.30/40/60/90

 PVC Others
2.Hole shape round square slot triangle hexagonal clover others

3. Dimensions(mm)

(length*width*thickness)

 Customize,such as:1000*2000*1.0,1250*2500*2.0..
3.Hole dia*pitch(mm) Customize,such as:2.0*5.0,3.0*6.0
4. Perforated pattern straight Stagered:45degree,60degeree,120degree...
5.Fabrication bended coiled others
6.Margin No margin Common margin Special requirment
7.Finish Powder coated galvanised polished No finishing
8. Payment terms

Hole Hole diameter From center to center between holes Ticness Arrangement Open Area
round 0.4 1.4 0.4 60 7.40%
round 0.5 1.5 0.5 60 10.08%
round 0.6 1.6 0.5 60 12.75%
round 0.7 1.4 0.5 60 22.67%
round 0.8 1.8 0.8 60 17.91%
round 1 2 1 60 22.67%
round 1.5 2 0.5 60 51.01%
round 1.5 2.5 0.6 60 32.65%
round 1.5 3 1 60 22.67%
round 2 3 0.5 60 40.31%
round 2 4 1 60 22.67%
round 2 5 2 60 14.51%
round 3 5 1 60 32.65%
round 5 8 2 60 35.43%
round 8 12 2 60 40.31%
round 10 12 2 60 62.98%

5. Pictures

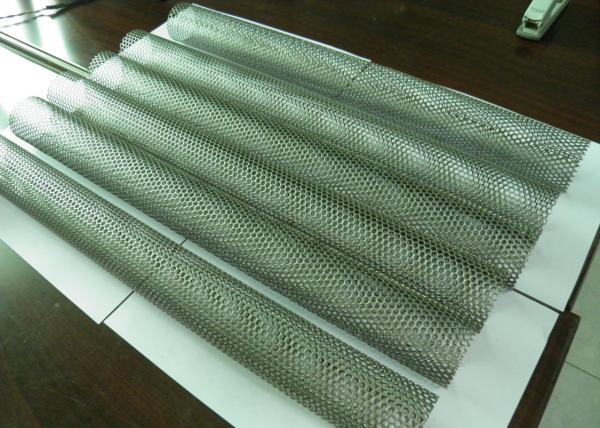

0.5mm Thickness Perforated Metal Mesh 304 /316 Stainless Steel Material
