Galvanized Perforated Metal Mesh Hexagonal / Round Hole 3mm - 200mm Aperture
Galvanized Perforated Metal Mesh Hexagonal / Round Hole 3mm - 200mm Aperture
Galvanized Perforated Metal Mesh Hexagonal / Round Hole 3mm - 200mm Aperture
Galvanized Perforated Metal Mesh Hexagonal / Round Hole 3mm - 200mm Aperture
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
Galvanized Steel Plate
Aperture :
3mm-200mm
Feature :
Acid-resisting
Hole :
0.08~100mm
Thickness :
0.3~8mm
Width :
1m,1.22m,1.55m
Certificate :
ISO9001:2008
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Description

Perforated metal refers to the different material plates punched different shape holes, so as to meet different needs.Perforated metal is knew as punching plate or round hole mesh.

- Materials:Aluminum, Iron, Steel

- Surface treatment:

1) For aluminum material :

- Without treatment is ok

- Anodized finish (colour can be silver, blue, green, yellow,pink, red,black, as you like)

- Powder coated

- PVDF (surface will be much more smooth, level off and glossy, it also has a much longer life span than common treatment)

2) For iron steel material :

- Galvanized : Electric galvanized, Hot-dipped galvanized

- Powder coated

- Spray painted

Packing:Wooden box, Iron pallet + plastic film

2. Advantages

  • Can spray paint or burnishing
  • Easy to fix
  • Various thickness,aperture shape and permutation
  • Good effect of absorption
  • Light weight perforated metal mesh
  • Long time service
  • Precise size
  • Easy to process

3. Specifications

Hole Diameter Staggered Centers Sheet Thickness Open Area
0.033 In. 0.84mm 0.055 0.0165-0.0198 IN. 0.40-0.50mm 28.00%
0.045 In. 1.14mm 0.066 0.0165-0.0198 IN. 0.40-0.50mm 37.00%
1/16 In. 1.59mm 3/32 In. 0.026-0.053 IN. 0.66-1.35mm 41.00%
1/16 In. 1.59mm 1/8 In. 0.046-0.053 IN. 1.17-1.36mm 23.00%
3/32 In. 2.38mm 9/64 In. 0.054-0.065 IN. 1.37-1.65mm 40.30%
3/32 In. 2.38mm 5/32 In. 0.026-0.079 IN. 0.66-2.00mm 33.00%
3/32 In. 2.38mm 1/4 In. 0.033-0.053'' 0.84-1.35mm 12.50%
1/8 In. 3.17mm 3/16 In. 0.026-0.129'' 0.80-2.89mm 40.00%
1/8 In. 3.17mm 7/32 In. 0.026-0.039'' 0.66-0.99mm 29.60%
5/32 In. 3.97mm 3/16 IN. 0.026-0.065'' 0.66-1.65mm 63.00%
3/16 In. 4.76mm 1/4 IN. 0.026-0.079'' 0.66-2.00mm 50.00%
3/16 In. 4.76mm 5/16 IN. 0.029'', 0.059'' 0.73mm, 1.50mm 32.00%
1/4 In. 6.35mm 5/16 IN. 0.026-0.079'' 0.66-2.00mm 58.00%
1/4 In. 6.35mm 3/8 IN. 0.012'', 0.026-0.065'' 0.30mm, 0.66-1.65mm 40.00%
1/2 In. 12.70mm 11/16 IN. 0.059'', 0.121'' 1.50mm, 3.00mm; 48.00%

4. Application

The Perforated sheets can be used with advantage in many situations, for instance when requiring sound reduction, weight saving, air control, filtering, a decorative surface, or simply a non-skid effect.

Based on their many qualities, perforated sheets are well suited for sorting, facades, ceilings, lamps, shelves, shielding, steps and of course many other purposes as well.

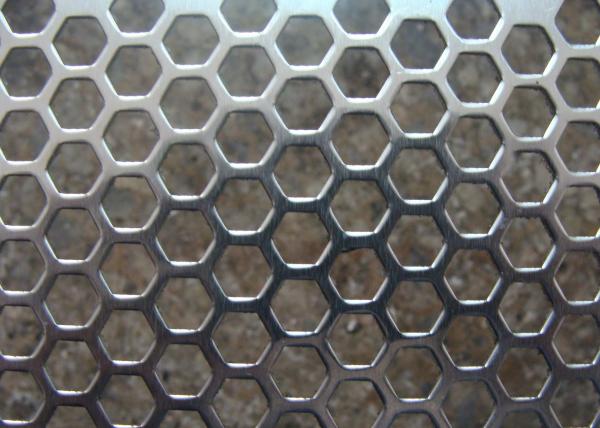

5. Picture

Galvanized Perforated Metal Mesh Hexagonal / Round Hole 3mm - 200mm Aperture
