3m Long Perforated Galvanized Steel Sheet Acid - Resistant 0.08 - 100mm Hole
3m Long Perforated Galvanized Steel Sheet Acid - Resistant 0.08 - 100mm Hole
3m Long Perforated Galvanized Steel Sheet Acid - Resistant 0.08 - 100mm Hole
3m Long Perforated Galvanized Steel Sheet Acid - Resistant 0.08 - 100mm Hole
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
low carbon steel plate, stainless steel plate,etc
Surface treatment :
Galvanized or pvc coated
Feature :
Acid-resisting
Hole :
0.08~100mm
Thickness :
0.3~8mm
Width :
1m,1.22m,1.55m
Length :
3m
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Description

Type
304/316l stainless steel perforated Metal mesh sheet price
Thinckness
0.3-15mm
Widthness
1000mm~2000mm or customized
Length
1000mm~6000mm or customized
Brand name
TISCO,JISCO,BAOSTEEL,POSCO,LIANZHONG,ETC
Standard
JIS, AISI, ASTM, GB, DIN, EN
Material
201/201/304/304L/316/316ti/316L/321/309S/310S/904L stainless steel sheet
Surface
2B,BA,HL,Brush,NO.1,NO.4,8K,SB,etc
Certificate
We accept the third inspections--SGS-BV etc.
Application
Bridge, Shipbuilding,roofing,Car, etc
Standard sheet sizes
1000mm*2000mm,1250mm*2500mm,1219mm*2438mm,1500mm*3000mm
We can produce other standard as customized
Certification
BV,SGS ,IQI,TUV.

2. Advantages

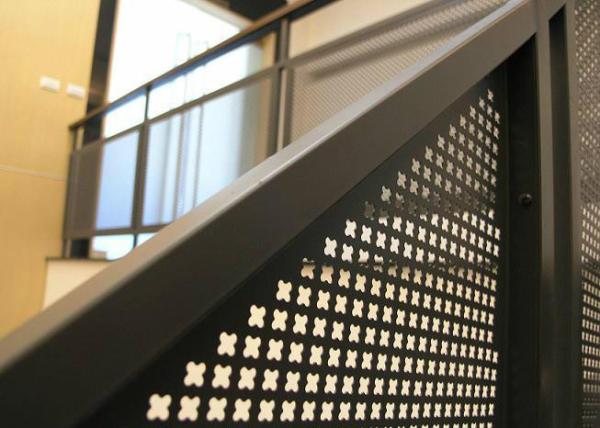

1) Used as decorative mesh for building outer wall

2) Visibility and colorful

3) Rainstorm or insolation won`t hurt

4) Aluminum won`t get rusty

5) Anti-corrosive

6) Weight is light enough for outer wall hanging

3. Specifications

Hole Diameter Staggered Centers Sheet Thickness Open Area
0.045" 1.14mm 0.066« 0.033-0.039" 0.84-0.99mm 37.00%
1/16" 1.59mm 3/32" 0.027-0.033" 0.68-0.84mm 41.00%
1/16" 1.59mm 1/8" 0.027-0.066" 0.68-1.68mm 23.00%
5/64" 1.98mm 1/8" 0.027-0.053" 0.68-1.35mm 35.00%
0.081" 2.06mm 1/8" 0.053-0.066" 1.35-1.68mm 38.00%
3/32" 2.38mm 5/32" 0.053-0.066" 1.35-1.68mm 33.00%
1/8" 3.17mm 3/16" 0.027-0.127" 0.68-3.23mm 40.00%
5/32" 3.97mm 3/16" 0.027-0.066" 0.68-1.68mm 63.00%
3/16" 4.76mm ¼" 0.027-0.127" 0.68-3.23mm 50.00%
1/4" 6.35mm 3/8" 0.033-0.111", 0.25" 0.84-2.82mm, 6.35mm 40.00%
3/8" 9.52mm ½" 0.053-0.082", 3/16" 1.35-2.08mm, 4.76mm 51.00%
3/8" 9.52mm 9/16" 0.059", 0.119" 1.50mm, 3.02mm 40.00%
1/2" 12.70mm 11/16" 0.033-0.127", 3/16" 0.84-3.23mm, 4.76mm 48.00%
1/4" Hex 6.35mm Hex 0.285 0.027-0.033 0.68-0.84mm 76.00%
3/8" Sq. 9.52mm Sq. Cane« 0.053-0.066" 1.35-1.68mm 51.00%

4. Application

Perforated metal mesh widely used in many fields, perforated mesh filters, as fencing screen for expressway, railway and other construction facilities, used in workshops as well as other constructions as sound isolation sheet decorative sheet for stairs, environmental tables and chairs, sifting in grains,feed and mines also used in making of kitchenware such as fruit basket, food cover, metal speaker grille,etc.

Product tags

perforated galvanised metal sheet

,

perforated galvanized sheet metal

,

galvanized perforated sheet metal
