4mm Thickness Perforated Metal Mesh 40% Filter Rating Acid - Resisting
4mm Thickness Perforated Metal Mesh 40% Filter Rating Acid - Resisting
4mm Thickness Perforated Metal Mesh 40% Filter Rating Acid - Resisting
4mm Thickness Perforated Metal Mesh 40% Filter Rating Acid - Resisting
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
low carbon steel plate, stainless steel plate,etc
Surface treatment :
Galvanized or pvc coated
Feature :
Acid-resisting
Hole :
0.08~100mm
Thickness :
0.3~8mm
Width :
1m,1.22m,1.55m
Length :
3m
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Material:

Steel, iron, aluminum, copper, stainless steel and other metal plates and non-metallic sheet


2. Features:

Stamping made, net surface flat, smooth, beautiful, strong and durable


3. Specifications:

Coil 1x20m, flat 1x2m, can also be customized according to customer needs processing

Specification:

(1)cold rolled steel sheet

thickness:0.2mm-1mm

length:1mm-20mm

hole diameter:0.8mm-10mm

(2)plate thickness:0.3mm-10mm

size:s1.5x3m

hole diameter:0.8mm-100mm

Opening (mm) Center type(mm) Thickness of sheet(mm)
min-max		 Size (mm) Stainless
Steel		 Iron Aluminium
2×10 ≥3 0.4-2 1220×2440 √ √ √
2×15 ≥3 0.4-2 1220×2440 √ √ √
2×20 ≥3.5 0.4-2 1220×2440 √ √ √
1.5×15 ≥3.5 0.4-2 1220×2440 √ √ √
3×10 ≥4 0.4-2.5 1220×2440 √ √ √
2.5×10 ≥3.5 0.4-2.5 1220×2440 √ √ √
3.5×10 ≥4.5 0.4-3 1220×2440 √ √ √
4×5-25 ≥5 0.4-3.5 1220×2440 √ √ √
5×5-25 ≥6.5 0.4--4 1220×2440 √ √ √
10×10 ≥12 0.5--4 1220×2440 √ √ √
12×15 ≥14 0.5-4 1220×2440 √ √ √
15×16 ≥18 0..6--4 1220×2440 √ √ √
20×20 ≥23 0.8---4.5 1220×2440 √ √ √
22×23 2≥5 0.8-4.5 1220×2440 √ √ √
Above specifications for reference only,specifications can be customized according to user needs.

4. Uses:

Mining, medicine, food selection, indoor sound insulation, silencers, ventilation, grain storage, mechanical protection,

5. Thickness or Gauge

Thickness of the matel sheets do not change during the perforation. Normally thickness is expressed in gauge, please see the picture. However, to avoid possible misunderstanding, we would suggest to express them in inches or millimeters.

6. Width and Length

The most common width and length are as follows:

1000mmX2000mm

1220mmX2400mm

1250mmX2500mm

1250mmX6000mm

1500mmX3000mm

1500mmX6000mm

However, we also manufacture other sheet sizes according to clients' requests.

7. Margins

Margins are the blank (un-perforated) area along the edges of the sheet. Normally the margin on the length are 20mm minimum, and margin along the width can be 0 minimum, or at clients' requests.

8. Hole Arrangement

Round holes are normally arranged in 3 types. Other hole patterns and hole arrangements can be custom made.

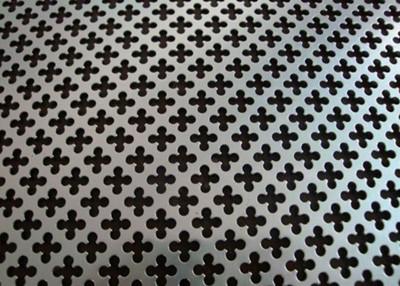

9. Hole pattern:round, square, hexagonal, scale, rectangular, triangle, cross, slotted

5. Picture

4mm Thickness Perforated Metal Mesh 40% Filter Rating Acid - Resisting
