Anti Aging Steel Plate Perforated Metal Mesh For Filter 3mm - 200mm Aperture
Anti Aging Steel Plate Perforated Metal Mesh For Filter 3mm - 200mm Aperture
Anti Aging Steel Plate Perforated Metal Mesh For Filter 3mm - 200mm Aperture
Anti Aging Steel Plate Perforated Metal Mesh For Filter 3mm - 200mm Aperture
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
low carbon steel plate
Aperture :
3mm-200mm
Feature :
Acid-resisting
Hole :
0.08~100mm
Thickness :
0.3~8mm
Widthness :
1000mm~2000mm or customized
Length :
1000mm~6000mm or customized
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Description

Materials: Stainless steel wire, iron plate, copper plate, aluminum plate, hot-rolled and cold-rolled carbon steel sheets, galvanized sheets, nickel, titanium, PVC and other sheet materials.

Opening: Round, hexagon, oval, square, rhombus, rectangular, hexagon, and composition of different shapes, also other special shape.

Process: Stamping, leveling, cutting, bending, reeling, welding, shaping and surface treatment.
Packing: Crate or Pallet

The specification only for reference, it can be done according to the requests of the customers.

2. Advantages

wide range of open area, economical, winding-resisting, aging-resisting, flat and smooth surface, strong and wear-resisting. The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc.

3. Specifications

Hole Diameter Staggered Centers Sheet Thickness Open Area
0.033 In. 0.84mm 0.055 0.0165-0.0198 IN. 0.40-0.50mm 28.00%
0.045 In. 1.14mm 0.066 0.0165-0.0198 IN. 0.40-0.50mm 37.00%
1/16 In. 1.59mm 3/32 In. 0.026-0.053 IN. 0.66-1.35mm 41.00%
1/16 In. 1.59mm 1/8 In. 0.046-0.053 IN. 1.17-1.36mm 23.00%
3/32 In. 2.38mm 9/64 In. 0.054-0.065 IN. 1.37-1.65mm 40.30%
3/32 In. 2.38mm 5/32 In. 0.026-0.079 IN. 0.66-2.00mm 33.00%
3/32 In. 2.38mm 1/4 In. 0.033-0.053'' 0.84-1.35mm 12.50%
1/8 In. 3.17mm 3/16 In. 0.026-0.129'' 0.80-2.89mm 40.00%
1/8 In. 3.17mm 7/32 In. 0.026-0.039'' 0.66-0.99mm 29.60%
5/32 In. 3.97mm 3/16 IN. 0.026-0.065'' 0.66-1.65mm 63.00%
3/16 In. 4.76mm 1/4 IN. 0.026-0.079'' 0.66-2.00mm 50.00%
3/16 In. 4.76mm 5/16 IN. 0.029'', 0.059'' 0.73mm, 1.50mm 32.00%
1/4 In. 6.35mm 5/16 IN. 0.026-0.079'' 0.66-2.00mm 58.00%
1/4 In. 6.35mm 3/8 IN. 0.012'', 0.026-0.065'' 0.30mm, 0.66-1.65mm 40.00%
1/2 In. 12.70mm 11/16 IN. 0.059'', 0.121'' 1.50mm, 3.00mm; 48.00%

4. Application

Parclose for noise in supper highway ,railway,the subway

Construction wall

Acoustic panel in factory workshop,generator room and other noise source

Acoustic material in ceiling,wall board

Decorate plate in stairs,balcony,environmental protection tables

Protection cover for machine

Screen cover for loudspeaker box

Fruit basket,food cover ,compote in kitchen

Shelf network in market

Decoration exhibition

Ventilation net in grain depo

Water percolation in football field turf

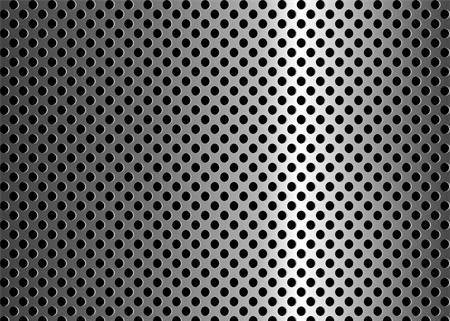

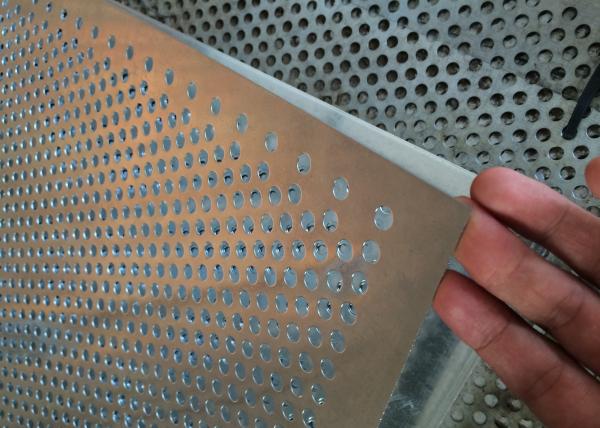

5. Pictures

Anti Aging Steel Plate Perforated Metal Mesh For Filter 3mm - 200mm Aperture
