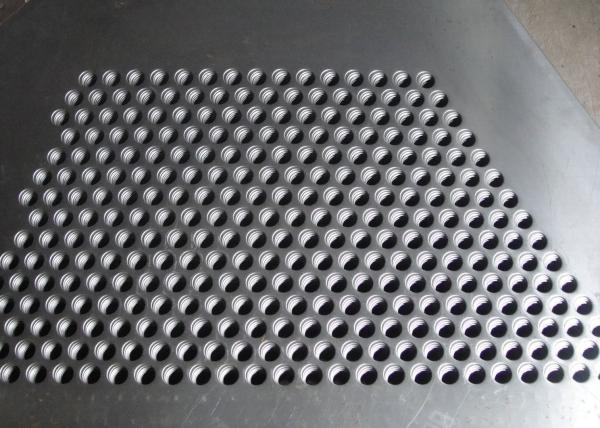

Hot Dipped Perforated Galvanised Sheet , Perforated Steel Plate For Stair Tread
Hot Dipped Perforated Galvanised Sheet , Perforated Steel Plate For Stair Tread
Hot Dipped Perforated Galvanised Sheet , Perforated Steel Plate For Stair Tread
Hot Dipped Perforated Galvanised Sheet , Perforated Steel Plate For Stair Tread
Specifications
Model Number :
PMS
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
The packing usually is pallet or wooden box to avoid damage or deformation to the aluminum product.we can packaging according to your requirement.
Material :
low carbon steel plate
Surface treatment :
Galvanized
Hole shape :
Square,round,hexagonal,etc
OEM/ODM: :
Acceptable
Weekly Capacity: :
10000pcs
Color :
Sliver, red,green.etc
Filter rating :
40%~81%
Width :
1m,1.22m,1.55m
Description

Round Hole Galvanized Perforated Metal Mesh Low Carbon Steel Q235

1. Description

- Materials:Aluminum, Iron, Steel

- Surface treatment:

1) For aluminum material :

- Without treatment is ok

- Anodized finish (colour can be silver, blue, green, yellow,pink, red,black, as you like)

- Powder coated

- PVDF (surface will be much more smooth, level off and glossy, it also has a much longer life span than common treatment)

2) For iron steel material :

- Galvanized : Electric galvanized, Hot-dipped galvanized

- Powder coated

- Spray painted

Packing:

1) Way Of Packing:one polybag for each products and then put into a carton box or wooden box
2) Kindly Notice:If necessary, we can pack as per your requirments.

2. Characteristics:

  • Can spray paint or burnishing
  • Easy to fix
  • Various thickness,aperture shape and permutation
  • Good effect of absorption
  • Light weight perforated metal mesh
  • Long time service
  • Precise size
  • Easy to process

3. Specifications

Panle thickness
(mm)		 Aperture
(mm)		 Pitch
(mm)		 Plate width
(m)		 Plate length
(m)		 Opening area
(%)		 Weight
(kg/m2)
Coil panel 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat panel 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1.5 2 2 1 2 19.6 9.4
3 5 16 1 2 19.6 18.8
Stainless steel panel 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum panel 0.5 1 1 1 2 19.6 1.08
Hole Diameter Staggered Centers Sheet Thickness Open Area
0.045" 1.14mm 0.066« 0.033-0.039" 0.84-0.99mm 37.00%
1/16" 1.59mm 3/32" 0.027-0.033" 0.68-0.84mm 41.00%
1/16" 1.59mm 1/8" 0.027-0.066" 0.68-1.68mm 23.00%
5/64" 1.98mm 1/8" 0.027-0.053" 0.68-1.35mm 35.00%
0.081" 2.06mm 1/8" 0.053-0.066" 1.35-1.68mm 38.00%
3/32" 2.38mm 5/32" 0.053-0.066" 1.35-1.68mm 33.00%

4. Application

Perforated metal mesh widely used in many fields, perforated mesh filters, as fencing screen for expressway, railway and other construction facilities, used in workshops as well as other constructions as sound isolation sheet decorative sheet for stairs, environmental tables and chairs, sifting in grains,feed and mines also used in making of kitchenware such as fruit basket, food cover, metal speaker grille,etc.
