Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM
Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM
Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM
Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM
Specifications
Model Number :
EMW
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
rapped with moisture-proof paper inside and then plastic film outside,export packing or according to your requirements
Material :
Low carbon steel, stainless steel plate,
Opening Shape :
rhombus
Weaving :
punching
Length :
1-4M
width :
0.5-2M
SWM :
2.5mm-50mm
LWM :
4.5mm-100mm
Surface Treatment :
Hot Dipped Galvanized
Color :
Silver
Sample :
free
Description

Hot Dipped Galvanized Expanded Metal Sheet Low Carbon Steel

1. Description

Material:

Low carbon steel, stainless steel plate, iron plate, copper plate, aluminum plate, titanium plate, nickel plate

Classification:

standard expanded metal ,flatten metal,heavy expanded metal,mini expanded metal,tortorise-shaped expanded metal

Surfacing Treatment:

hot-dip galvanizing,electroplating,plasticated,etc

weaving and characters:

Made of steel plate after stamping, stretching; Divided into steel plate mesh and stainless steel net; Beautiful and easy, strong and durable.

specification of expanded metal mesh:

SWD:Diamond shaped hole diagonal short length.

LWD:Diamond shaped hole the length of the diagonal length.

Strand:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

Bond:Two wire connection.

Thickness:The original sheet thickness.

2. Application

  • Architectural
  • Partitions
  • Fencing
  • Screens
  • Furniture
  • Security Partitions
  • Grilles & Vents
  • Stairs
  • Infill panels
  • Store Fixtures

3. Specification

Specification of Expanded Metal Mesh
Sheet Thickness Opening in Width
mm		 Opening in Length
mm		 Stem Roll Width
mm		 Roll Length
mm		 Weight
kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Diamond Mesh Lath Weight per Square Yard
Type Finish Sheet size Pieces per bundle Square Yards Per Bundle
1.75Ibs Galvanized 27”X96” 10 20
2.5Ibs Galvanized 27”X96” 10 20
1.75Ibs Galvanized 27”X96” 10 20
50 bundles per pallet equals 1,000 square yards

4. Feature Advantage

1). FLS Expanded Metal Mesh allows for excellent keying and support as a back- stop for plaster with easy fastening to cold-formed steel supports.

2). Wafer head screws are power driven to allow quick and easy attachment of Diamond Mesh Lath to framing members.

3). Expanded Metal Mesh can be cut to size with hand tools.

5. Competitive Advantage

1)High quality,competitive price and perfect service

2)Different standard of your choice

3)Products have passed international standard

4)Our company specialized in producing various kind of wire mesh

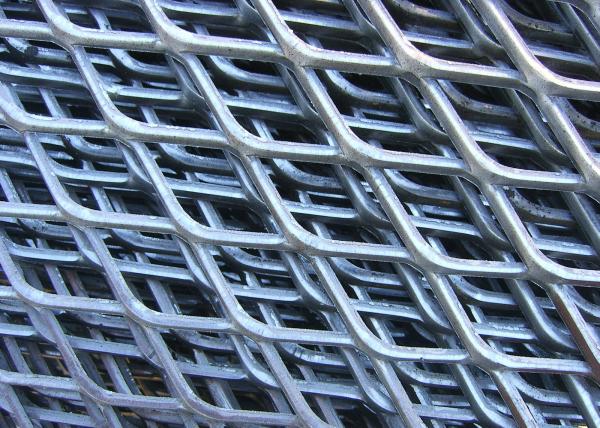

6. Products pictures

Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM
