1mm Thick Expanded Metal Grating , 2.5mm - 50mm SWM Expanded Sheet Metal Mesh
1mm Thick Expanded Metal Grating , 2.5mm - 50mm SWM Expanded Sheet Metal Mesh
1mm Thick Expanded Metal Grating , 2.5mm - 50mm SWM Expanded Sheet Metal Mesh
1mm Thick Expanded Metal Grating , 2.5mm - 50mm SWM Expanded Sheet Metal Mesh
Specifications
Model Number :
EMW
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
rapped with moisture-proof paper inside and then plastic film outside,export packing or according to your requirements
Material :
Low carbon steel, stainless steel plate,
Opening Shape :
rhombus
Weaving :
punching
Length :
1-4M
width :
0.5-2M
SWM :
2.5mm-50mm
LWM :
4.5mm-100mm
Surface Treatment :
Hot Dipped Galvanized
Description

Hot Dipped Galvanized Expanded Metal Sheet Low Carbon Steel

1. Description

We manufacture a full range of standard and flattened expanded metal, structural grating, micro mesh and decorative patterns. Raw material can be produced in carbon, galvanized, stainless steel or high strength alloy steel. Certain alloys of copper, brass, bronze and plastics can be expanded as well.

We have filter expanded mesh, Industrial expanded metal, decorating metal mesh, mini-opening expanded mesh, security fence expanded metal sheets, etc

2. Application

Expanded Metal is used widely throughout the transportation industry, agriculture, security, machine guards, floorings, construction, architecture and interior design. The use of this kind of expanded metal mesh is highly beneficial, and of cost saving and low maintenance.

3. Specification

SR.NO. MESH WIRE DIA.(mm) OPENING/APERTURE(mm) WEAVING GRADE
1 20 0.45 0.82 PW/TW GR.1 Or GR.2
2 20 0.50 0.77 PW/TW GR.1 Or GR.2
3 30 0.20 0.65 PW/TW GR.1 Or GR.2
4 40 0.18 0.46 PW/TW GR.1 Or GR.2
5 50 0.17 0.34 PW/TW GR.1 Or GR.2
6 60 0.12 0.30 PW/TW GR.1 Or GR.2
7 80 0.10 0.22 PW/TW GR.1 Or GR.2
8 80 0.11 0.21 PW/TW GR.1 Or GR.2
9 80 0.12 0.20 PW/TW GR.1 Or GR.2
10 100 0.10 0.15 PW/TW GR.1 Or GR.2

Sheet

Thickness

 Distance short(mm) Distance long(mm) Strip(mm) Width(m) Length(m) Weight(kg/m2)
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

4. Feature Advantage

1). FLS Expanded Metal Mesh allows for excellent keying and support as a back- stop for plaster with easy fastening to cold-formed steel supports.

2). Wafer head screws are power driven to allow quick and easy attachment of Diamond Mesh Lath to framing members.

3). Expanded Metal Mesh can be cut to size with hand tools.

5. Competitive Advantage

1) All size can be customized

2) OEM and ODM are welcome.( you only need to provide the sample or draws to us)

3) We can reply your inquire within 3 hours

4) Certificate : ISO 9001:2000 and CE

5) Any logo can be printed on carton

6.) We have 10 years of export experience, seven years of alibaba

member. We are able to provide quality and credit guarantee for your goods

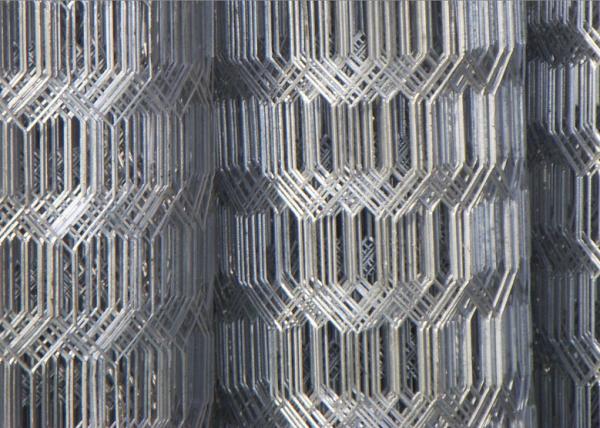

6. Products pictures

1mm Thick Expanded Metal Grating , 2.5mm - 50mm SWM Expanded Sheet Metal Mesh
