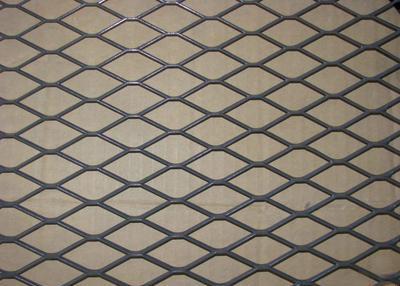

Mini Expanded Metal Mesh Thickness 0.8mm Punching Sliver ISO9001 approval
Mini Expanded Metal Mesh Thickness 0.8mm Punching Sliver ISO9001 approval
Mini Expanded Metal Mesh Thickness 0.8mm Punching Sliver ISO9001 approval
Mini Expanded Metal Mesh Thickness 0.8mm Punching Sliver ISO9001 approval
Specifications
Model Number :
EMW
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
rapped with moisture-proof paper inside and then plastic film outside,export packing or according to your requirements
Material :
Mild Steel
Short way of diamond :
10mm
Long way of diamond :
20mm
Surface treatment :
spraying coating / galvanized coating
Color :
Red,Green,Sliver and etc
Sample :
Free
Weaving :
Punching
Description

Hot Dipped Galvanized Expanded Metal Sheet Low Carbon Steel
1. Description

1>Material:stainless steel,aluminum,low carbon steel(pvc coated,galvanized,painted)
2>Technique: punched hole,then drawing.

3>Characteristics: Be fast, enduring, graceful.
4>Usefulness: Be broadly used in the areas such as highway, railway, residence, irrigation works and the protection partition of machines, electrical appliances, windows and aquiculture.

2. Application

galvanized expanded metal mesh in buildings and construction, maintenance of equipments, making of arts, covering screen. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, big ships. Also serve as reinforcing bar in construction, railway and bridges.

3. Specification

Material

high quality low carobon., hot-rolled steel, hot galvanized plate,

stainless steel, copper, titanium, nickel, aluminum, aluminum alloy panels.etc.
Metal Surface PVC coated, sprayed, plastic-coated, hot-dipped galvanized, electro galvanized, etc.
Hole shape

Diamond, square ,Hexagonal Or any other special shape

can be manufactured as per demand.

Mesh

thickness(mm)

 distance
short(mm)		 distance
long(mm)		 strip
(mm)		 width
(m)		 length
(m)		 weight
(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26


4. Feature Advantage
The mesh is formed from a single piece of metal;
* The process is not wasteful of material;
* Higher strength-to-weight ratio than sheet metal;
* Anti-slip surface;
* Excludes and retains simultaneously;
* Premium reinforcement properties;
* Practical and effective screening;
* High efficient conductor;
* Super corrosion resistance.
5. Competitive Advantage
1). Small sample is free.
2). According to the different customer need to customize logo.
3). According to the color of the customers like to customize.
4). We have full stock, and can deliver within short time.
5). Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.6.Products pictures
Mini Expanded Metal Mesh Thickness 0.8mm Punching Sliver ISO9001 approval
