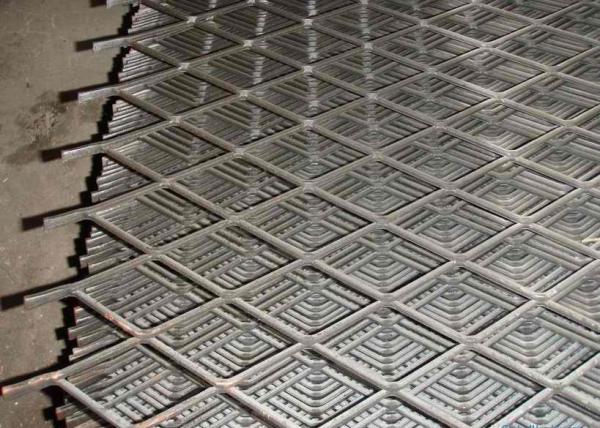

2mm Thickness Expanded Wire Mesh , Highway Fencing Expanding Mesh Sheets
2mm Thickness Expanded Wire Mesh , Highway Fencing Expanding Mesh Sheets
2mm Thickness Expanded Wire Mesh , Highway Fencing Expanding Mesh Sheets
2mm Thickness Expanded Wire Mesh , Highway Fencing Expanding Mesh Sheets
Specifications
Model Number :
EMW
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000TONS/MONTH
Delivery Time :
8DAYS
Packaging Details :
rapped with moisture-proof paper inside and then plastic film outside,export packing or according to your requirements
Material :
iron board
Opening Shape :
rhombus
Long way of diamond :
MAX 300mm
Thickness :
0.5mm – 14mm
Strand :
1.2mm
Color :
Silver
Sample :
Free
Surface Treatment :
spraying coating / galvanized coating
Description

Hot Dipped Galvanized Expanded Metal Sheet Low Carbon Steel
1. Description

Expanded Metal Sheet is manufactured by slitting and stretching galvanized steel to form small opening to allow the keying of plaster so it will bond to the lath. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation. Diamond Mesh Lath can be bent easily to create curved surfaces.

2. Application
galvanized expanded metal mesh in buildings and construction, maintenance of equipments, making of arts, covering screen. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, big ships. Also serve as reinforcing bar in construction, railway and bridges.


3. Specification

Sheet Thickness
(mm)		 SWG
(mm)		 LWG
(mm)		 Strand Width
(mm)		 Width
(m)		 Length
(m)		 Weight
(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Sheet

Thickness

 Distance short(mm) Distance long(mm) Strip(mm) Width(m) Length(m) Weight(kg/m2)
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26


4. Feature Advantage
The mesh is formed from a single piece of metal;
* The process is not wasteful of material;
* Higher strength-to-weight ratio than sheet metal;
* Anti-slip surface;
* Excludes and retains simultaneously;
* Premium reinforcement properties;
* Practical and effective screening;
* High efficient conductor;
* Super corrosion resistance.
5. Competitive Advantage
1. Small sample is free.
2. According to the different customer need to customize logo.
3. According to the color of the customers like to customize.
4. We have full stock, and can deliver within short time.
5. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
