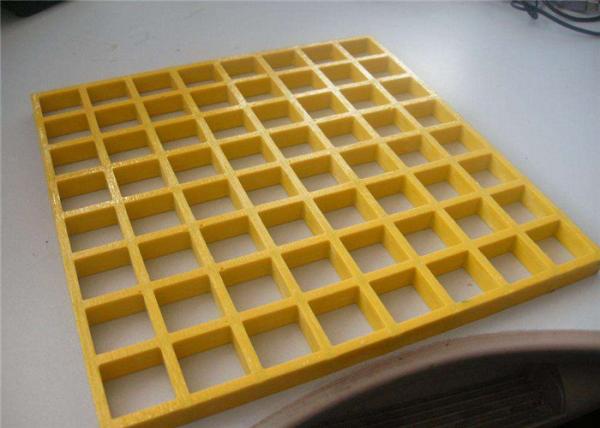

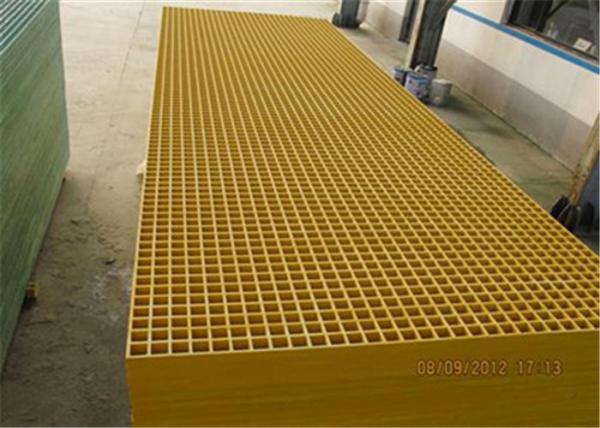

Lightweight Plastic Walkway Grating , Reinforced Fiberglass Walkway Grating
Lightweight Plastic Walkway Grating , Reinforced Fiberglass Walkway Grating
Lightweight Plastic Walkway Grating , Reinforced Fiberglass Walkway Grating
Lightweight Plastic Walkway Grating , Reinforced Fiberglass Walkway Grating
Specifications
Model Number :
frp floor chemical industrial grating
Certification :
ISO9001
MOQ :
10000 square meters per month
Payment Terms :
T/T, Western Union
Delivery Time :
4-8 work days
Packaging Details :
Pallets or clients requirements
Product name :
Lightweight 30 × 38 × 38 Fiberglass Reinforced Grating Chemical Industrial
Dimensions :
1220mm x 2440mm / 1220mm x 3660mm
Mesh :
38mm x 38mm , 25mm x 25mm , 50mm x 50mm
Length :
1007x4007,1207x4047,etc
Width :
3007mm,3660mm,4047mm
Color :
Black\gray\white\yellow\red\green
Technique :
Molded
Feature :
Light structure and high strength
Description

Lightweight 30 × 38 × 38 Fiberglass Reinforced Grating Chemical Industrial

Specification

FRP grating is one kind of new composite material, made of different resins reinforced with fiberglass, by

molded technology.It is widely used in operation platform, checking and repairing walkway, drilling

platform, terrace, stair step, equipment walkway, trench cover, pedestrian overpass, filler support, deck of

ship,falsework, ventilation fence, rail, corrosion resistance shelf,etc.

Standard size

Thick (MM)
Mesh size (MM)
Panel size (MM)
Open area (%)
Weight (kg/m2)
25


38*38

1220*2440
2440*3660
65
12.5
30
68
15.5
38
68
19.5
30

(top)19*19/(bottom)38*38
1220*2440
2440*3660
30
20
38
30
24

Item no. Height(mm) Mesh Size
(mm)		 Standard Panel Sizes(mm) Bar Thickness
(top/bottom-mm)		 Open Area Weight
(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665×1225 6.3 / 5 69 9.3
6 20 12.8×12.8×12.8 / 38.5×38.5 3434×970 7.2 / 6.4 27 18.5
7 25 38.1×38.1 3665×1225 6.35 / 5 69 12.3
8 25 40×40 4047×1007 6.35 / 5 70 12.2
9 25 19×19 / 38×38 4005×1220 6.4 / 5 44 15.5
10 25 25×100(Bearing bars to run width direction) 3007×1009 9.4 / 8(length)
6.4 / 5(width)		 67 13.8
11 25 25.4×101.6(Bearing bars to run width direction) 3660×1220 7 / 5 67 13
12 25 101.6×25.4(Bearing bars to run length direction) 3665×1225 7 / 5 67 13.1
13 30 38.1×38.1 4008×1525 6.6 / 5 68 14.6
14 30 40×40 4047×1007 6.6 / 5 69 14.2
15 30 20×20 / 40×40 4047×1247 7 / 5 42 18.1
16 30 12.7×12.7×12.7 / 38×38 4040×1220 7 / 5 30 23.5
17 30 26×26 / 52×52 4011×1150 6.5/5 56 13.6
18 38 38.1×38.1 3969×1525 7 / 5 66 19.2
19 38 40×40 4047×1007 7 / 5 67 18.8
20 38 152.4×25.4(Bearing bars to run length direction) 3665×1226 7 / 5(length)
9 / 7(width)		 68 20.4
21 38 101.6×38.1(Bearing bars to run length direction) 3660×1220 7 / 5 76 14.5
22 38 19×19 / 38.1×38.1 4045×1220 7 / 5 40 23.5
23 38 20×20 / 40×40 4047×1247 7 / 5 42 22
24 40 40×40 4047×1247 7 / 5 67 20
25 40 220×60 2207×1507 7 / 5 85 9.5
26 40 20×20 / 40×40 4047×1207 7 / 5 42 23.7
27 50 50.7×50.7 3660×1225 8.3 / 5 69 21.5
28 50 50.7×50.7 3660×1225 8.8 / 5 68% 23.5
29 50 25.35×25.35 / 50.7×50.7 3660×1220 8 / 6 47% 26
30 50 152.4×38.1(Bearing bars to run length direction) 3660×1220 9 / 7 72% 20.8
31 50 38.1×38.1 3665×1225 11.5 / 9 48 40.5
32 63 38.1×38.1 3660×1220 9 / 5.8 58% 38.5
33 63 38.1×38.1 3670×1230 12 / 9 46% 52

Application

1 Walkways

2 Platforms

3 Protective Shielding

4 Car washes and drains

5 Raised Floors

6 Chemical industrial

Lightweight Plastic Walkway Grating , Reinforced Fiberglass Walkway Grating

Characteristics :

Regularly Moulded GRP Gratings have a polyester resin matrix. Glass content is approximately 35%.

Standard colours are green, yellow or grey, other colours are available according to RAL.

1. Corrosion and chemical resistant

2. High strength-to-weight ratio

3. Ergonomic

5. Slip-resistant

6. Anti-aging

7. Easy maintenance
