Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Specifications
Model Number :
SSG
Certification :
ISO9001:2008
MOQ :
2PCS
Price :
USD15
Payment Terms :
T/T, L/C
Supply Ability :
2000TONS
Delivery Time :
10DAYS
Packaging Details :
With steel belt and square tube
Surface Treatment :
Hot dipped galvanized black self color
Bearing bar size :
25x5,32x5,32x3,35x5,40x3,40x5,55x5 and etc
Bearing bar spacing :
30mm,35mm,40mm or customized
Cross bar spacing :
50mm,100mm or customized
Bearing bar shape :
serrated style
Cross bar :
6mm 8mm Twisted bar,10mm Round bar
Standard :
ANSI/NAAMM（MBG531-88）
Application :
Flooring,Stair tread,Ditch cover,platform
Description

Zinc coating welding serrated steel gi grating outdoor stair treads

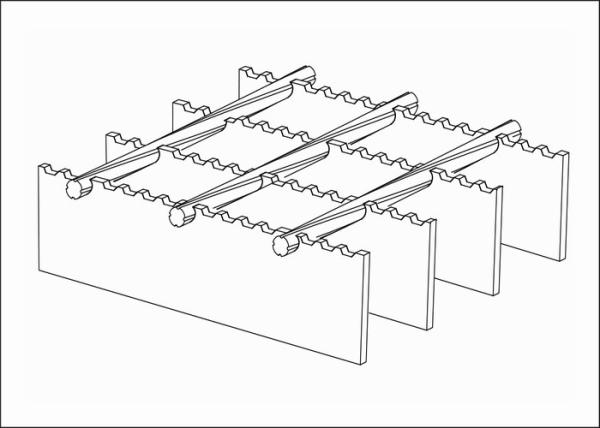

1. what is steel grating ?( galvanized I bar grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread

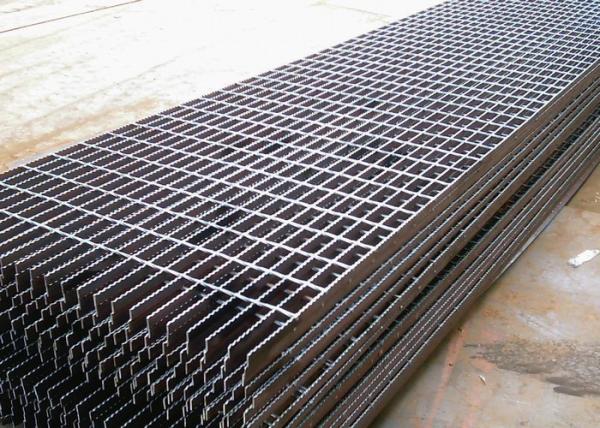

steel grating specification- galvanized serrated I bar grating
panel size available(black grating): 1000x5800mm or 1000x6000mm or 7315mm*1m

Bearing bar pitchCross bar pitchload steel size ( Width ×Thickness)
20×325×332×340×320×525×5
30100G203/30/100G253/30/100G323/30/100G403/30/100G205/30/100G255/30/100
50G203/30/50G253/30/50G323/30/50G403/30/50G205/30/50G255/30/50
40100G203/40/100G253/40/100G323/40/100G403/40/100G205/40/100G255/40/100
50G203/40/50G253/40/50G323/40/50G403/40/50G205/40/50G255/40/50
6050-G253/60/50G253/60/50G403/60/50G205/60/50G255/60/50
Bearing bar pitchCross bar pitchload steel size (Width ×Thickness)
32×540×545×550×555×560×5
30100G325/30/100G405/30/100G455/30/100G505/30/100G555/30/100G605/30/100
50G325/30/50G405/30/50G455/30/50G505/30/50G555/30/50G605/30/50
40100G325/40/100G405/40/100G455/40/100G505/40/100G555/40/100G605/40/100
50G325/40/50G405/40/50G455/40/50G505/40/50G555/40/50G605/40/50
6050G325/60/50G405/60/50G455/60/50G505/60/50G555/60/50G605/60/50


Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
steel grating application

power station platform grating

port platform floor grating

spray booth floor grating

car parking STEEL GRATING FOR CAR PARK LINEAR DRAINAGE channel grating

steel stair treads grating

trench cover grating

car washing station/ car parking lot

FAQ

1. What is the application of steel grating?

The main usage can be divided to 4 kinds: platform, flooring, stair treads and drainage cover.
See the above pic for reference.


2. what is the quantity of galvanization? And how long will it last?

We do our galvanization as American standard, for over 5mm thick steel grating, it is no less than
610g per square meter , for less than 5 mm thick steel grating, it is no less than 460g per square meter usually it is 60-80μ per square meter. And it can last at least 50 years.

3. Which standard can your products meet?

We can produce as customer's need. Here are most popular standard:

China: YB/T4001.1-2007
UK: BS4592-1-1995
USA: ANSI/NAAMM(MBG531-88)
Australia: AS1657-1985

4. Do you provide design?

Yes, we can provide CAD design for customers, as long as you can tell us your requirements.
