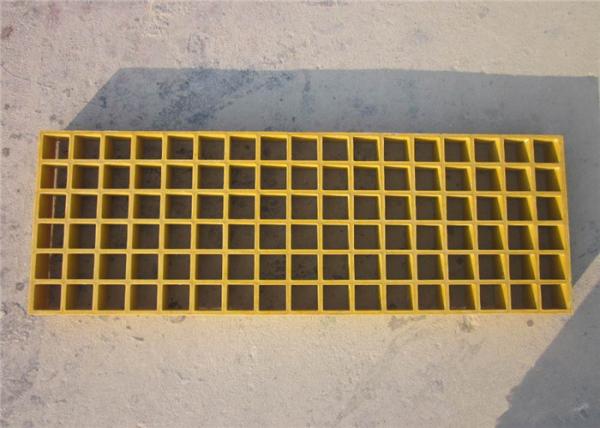

38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform
38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform
38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform
38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform
Specifications
Model Number :
frp floor chemical industrial grating
Certification :
ISO9001
MOQ :
10000 square meters per month
Payment Terms :
T/T, Western Union
Delivery Time :
4-8 work days
Packaging Details :
Pallets or clients requirements
Product name :
Lightweight 30 × 38 × 38 Fiberglass Reinforced Grating Chemical Industrial
Dimensions :
1220mm x 2440mm / 1220mm x 3660mm
Mesh :
38mm x 38mm , 25mm x 25mm , 50mm x 50mm
Length :
1007x4007,1207x4047,etc
Width :
3007mm,3660mm,4047mm
Color :
Black\gray\white\yellow\red\green
Technique :
Molded
Feature :
Light structure and high strength
Description

Lightweight 30 × 38 × 38 Fiberglass Reinforced Grating Chemical Industrial

Specification

FRP/GRP gratings (Fiberglass Reinforced Plastic Gratings) are interwoven from glass fibers, cast resin

and then molded into FRP grating plates with regularly distributed rectangle or square holes, and they

have perfect bi-directional mechanical properties.

38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform

Standard size

Thick (MM)
Mesh size (MM)
Panel size (MM)
Open area (%)
Weight (kg/m2)
25


38*38

1220*2440
2440*3660
65
12.5
30
68
15.5
38
68
19.5
30

(top)19*19/(bottom)38*38
1220*2440
2440*3660
30
20
38
30
24

Details

Model Panel size Weight(kg/m2)
38x38x25 1220x3660 12.3
38x38x30 1220x3660 12.3
38x38x38

1220x3660

1525x3660

 18.5
38x38x40 1525x3660 19.5
38x38x65

1032x2020

Heavy Load

 50.40
50x50x50 1220x3660 23.51
25x100x25 1007x4007 13.0
38x152x38 1220x3660 15.93

25x25x25

100x100x25

1000x4000

Double

 12.03

25x25x30

50x50x30

1000x4000

Double

 18.03
40x40x40 1220x3660 19.2
40x40x25 1220x3660 12.0
100x40x25 1015x1295 10.5
100x40x65 1015x1295 24.83

Technical parameter

Project Index Project Index Project Index
Draw intensity 80-100Mpa Hardness of bar 40 Absorbing water rate 24H 0.32%
Crooked intensity 70-110Mpa Heat conduction coefficient 0.67-0.96
kv/m.h.		 Ability to resist wind Under 8 grades
Proportion 1.4-1.6g/cm3 Use the temperature range -40-+60

Packaging Details :

The FRP grating normal package is steel pallet .

it according to customers special request.

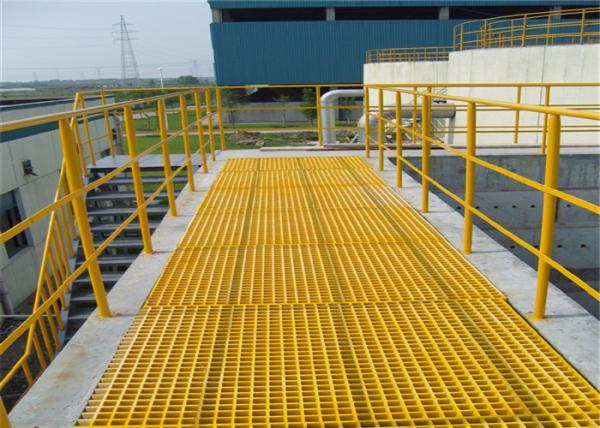

Application

FRP gratings can be widely used for the working platforms, equipment platforms, drilling platforms and

walkways of petroleum, chemical electronics, electricity, paper, printing and dyeing, electroplating, ocean

exploration, sewage treatment and so on. They are the ideal choice for corrosive environments, and

can be applied to civil construction facilities.

38 × 38 × 38 Plastic Floor Grating High Strength Anti - Sliding Petroleum Platform

Features :

Uniform color , Corrosion resistant


Lightweight & high strength


Good thermal performance


Inflaming retarding, Outstanding designability


Security with good electrical properties


Good manufacturability , Anti-aging


Have good overall economic efficiency
