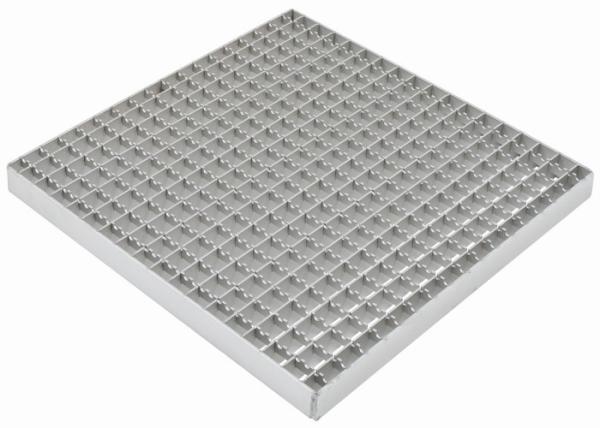

Stainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round Bar
Stainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round Bar
Stainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round Bar
Stainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round Bar
Specifications
Model Number :
SSG
Certification :
ISO9001:2008
MOQ :
2PCS
Price :
USD15
Payment Terms :
T/T, L/C
Supply Ability :
2000TONS
Delivery Time :
20 days
Packaging Details :
With steel belt and square tube
Material :
Stainless Steel 304 316 316L
Surface Treatment :
No , self color
Bearing bar size :
25x5,25x6 32x5,32x3,35x5,40x3,40x5,55x5 and etc
Bearing bar spacing :
30mm,35mm,40mm 50mm or customized
Cross bar spacing :
50mm,75mm 100mm or customized
Bearing bar shape :

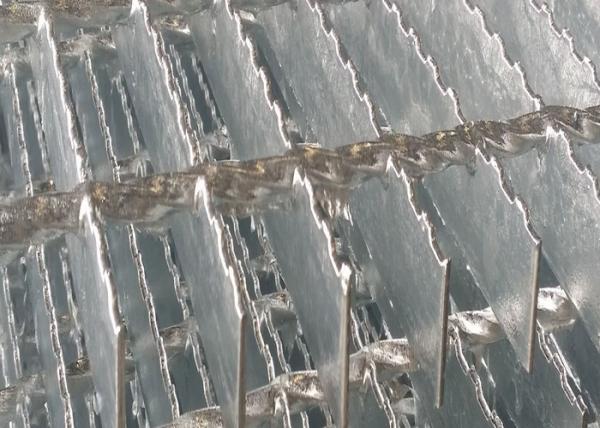

serrated style
Cross bar :
Twisted bar,Round bar
Description

Galvanized stainless serrated bar steel grating stair treads

Bar grating types are specified by bearing bar spacing followed by cross rod spacing. In imperial measurements, bearing bar spacing is described in sixteenths of an inch. Therefore, Type 19 has bearing bar centers at 19/16 of an inch (or 1 3/16”). Type 15 has bearing bar centers at 15/16”. Type 11 is at 11/16” etc. The second number after the dash in the Type designation refers to the cross rod spacing. Cross rods are available in either 4” (standard) or 2” (special) spacings.

All bar grating Types may also be described in metric units. Again, the first number represents the bearing bar spacing on centers and the second number represents the cross rod spacing, both units measured in millimeters. Therefore, Type 30-102 Metric equals bearing bars at 30mm centers and cross rods at 102mm centers. This is the metric equivalent of Type 19-4.

Note: Although the special 2” (50mm) cross rod spacing does allow for less open space on the grating surface, it does not affect the load rating of the grating. The most economical and readily available choice for bar grating selection is Type 19-4 (Type 30-102 Metric).

U= Safe Uniform Load, in lbs per sq ft or kPa
C= Safe Concentrated Load in lbs per foot of grating width or kN per metre of grating width
D= Deflection in inches or mm

Specifications

SS 316 Industrial Grating:
bearing bar:25x3mm, 25x4mm, 30x3mm
bearing bar pitch:40mm,
ISO 9001:2008
twisted bar pitch:50mm

SS 316 Industrial Grating:
bearing bar:25x3mm, 25x4mm, 30x3mm
bearing bar pitch:40mm,

twisted bar pitch:50mm
ISO 9001:2008

stainless steel grating platform introduction-- steel platform grating


Bearing bar type
Flat bar
I bar
Serrated bar

Cross bar type
Twisted bar
Round bar
flat bar

Production process
welded
Pressure locked

Surface treatment
Self-colour
Galvanized
painted

application
Platform
walkway&floor
Trench cover
Steel stair treads

Suspended ceiling
Barrier fence
Stainless steel grating size Bearing size(mm) Cross bar pitch(mm) Weight(kg/square meter)
G253/30/50 25x3 50 25.7
G253/30/100 100 22.8
G255/30/50 25x5 50 39
G255/30/100 100 36.2
G323/30/50 32x3 50 31.3
G323/30/100 100 28.4
G325/30/50 32x5 50 48.4
G325/30/100 100 45.5
Stainless steel grating size Bearing size (mm) Cross bar pitch (mm) Weight(kg/square meter
G353/30/50

35x3

 50 33.6
G353/30/100 100 30.8
G355/30/50

35x5

 50 52.3
G355/30/100 100 49.5
G403/30/50 40x3 50 37.7
G403/30/100 100 34.9
G405/30/50

40x5

 50 59
G405/30/100 100 56.2

Stainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round BarStainless Steel Grating Walkway 40mm Bearing Bar Pitch Twisted / Round Bar

Application:

Steel grating, designed scientifically and exquisitely, is very strong and safe to support floors and walkways. It can be used for ceiling, interior and exterior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
