Grey Plastic Floor Grating Aging - Resistant Fiberglass Material Custom Size
Grey Plastic Floor Grating Aging - Resistant Fiberglass Material Custom Size
Grey Plastic Floor Grating Aging - Resistant Fiberglass Material Custom Size
Grey Plastic Floor Grating Aging - Resistant Fiberglass Material Custom Size
Specifications
Model Number :
FRY -20
Certification :
ISO9001:2008
MOQ :
2pcs
Payment Terms :
L/C, T/T
Supply Ability :
100TON/week
Delivery Time :
5-9 working day
Packaging Details :
Sealed package:pallet & carton
Material :
Fiberglass Reinforced Platic
Color :
Gery
Thickness :
25mm,30mm,38mm,50mm
Length :
Customized Length
Feature :
Aging-Resistant,insulation,corrosion resistance
Technique :
Molded
Hole Shape :
Square
Application :
Walkway
Description

Grey Aging-Resistant Plastic Floor Grating For Platform 1007x3007


1. Description
Molded Fiberglass Grating is the product of choice where corrosion resistance or fire retardancy is paramount and high impact resistance is important. When compared to steel, this product is very lightweight. Molded one-piece construction panels have a comfortable concave slip resistant walking surface and are easily cut in the field. Load bearing bars in both directions allow for use without continuous side support.
2. Excellent properties as follows:
(1).Safety:FRP is recommended when corrosion protection and safety are your goal.

(2).Stability:Expansion and contraction is 24% and 50% less than aluminum and steel, providing greater dimensional stability.

(3).Durability:Superior durability to Stainless Steel, Aluminum, and Galvanized Gratings, especially in highly corrosive environments.

(4).Strength:50%higher tensile strength than hot rolled steel and better impact resistance.
3. Cutting method:
Serging four side,Serging three sides,Serging opposite sides,Serging the neighboring sides,Non-serginh.
4. Surface Treatment: Smooth surface grating,Concave surface grating, Microvoid grating, Sandy grating,Cover board gratin,Transparent grating
a)Smooth surface and italic grid make it easy to clean.
b)Cross distributing loads equally to improve the bearing capacity.
c)Surface grooves prevent slipping, covered sand type is better in anti-slipping.
5. Installation manual:

Three types of stainless steel Standard fixture: L, M, C

Use stainless steel clamp to connect gratings and fix the grating and frame.
6.Specification

ItemThickness
mm		Mesh Size
mm		Panel Size
mm*mm		Perforation rate %Weight
kg/Square Meter
12538×381220×3600, 1220×2240
1220×4040, 1220×4915
1000×4038		68%12.30
23038×38
38×19		1220×3600, 1220×2240
1220×4040, 1220×4915
1000×4038		68%
42%		14.60
19.57
33838×38
38×19		1220×3600, 1220×2240
1220×4040, 1220×4915
1000×4038		68%
42%		18.50
23.51
45038×381220×3600, 1220×2240
1220×4040, 1220×4915
1000×4038		68%42.05
56538×381220×3600, 1220×2240
1220×4040, 1220×4915
1000×4038		68%54.66
63050×50
50×25		1220×4015, 1220×3660
1220×2440		71%
42%		14.10
18.03
75050×501220×4015, 1220×3660
1220×2440		71%23.51
86550×501220×4015, 1220×3660
1220×2440		71%30.56
92540×401220×4025, 1220×3660
1220×2440,1000×4040,
1220×4915		67%12.00
103040×401220×4025, 1220×3660
1220×2440,1000×4040,
1220×4915		67%18.30
113840×401220×4025, 1220×3660
1220×2440,1000×4040,
1220×4915		67%19.20
122525×1001220×3660,1220×2440,
915×3050		68%23.51

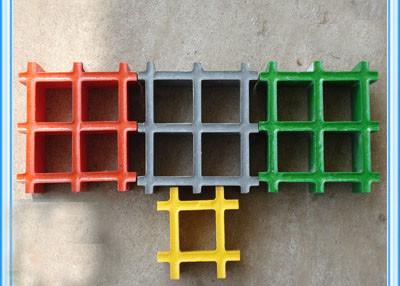

5. Picture
Grey Plastic Floor Grating Aging - Resistant Fiberglass Material Custom Size
