Heavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 Approval
Heavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 Approval
Heavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 Approval
Heavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 Approval
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
1
Price :
FOB 0.3 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Name: :
Steel grating clamps
Company certificate: :
ISO 9001:2002
C-B: :
100mm and 50mm,60mm
Bearing Bar: :
5mm and 6mm
China Standards :
YB/T 4001.1-2007
Quality inspection: :
ISO 9001:2002
surface: :
untreated, hot dip galvanized, painted
Dimensions: :
type A B C
Description

Heavy Duty Galvanized Steel Grating Clamp used in power plant

Products Detail

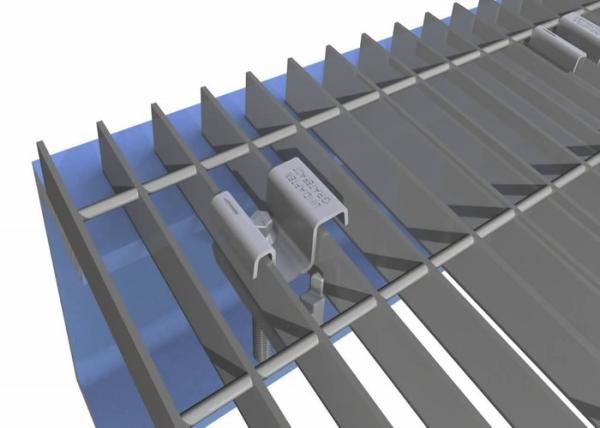

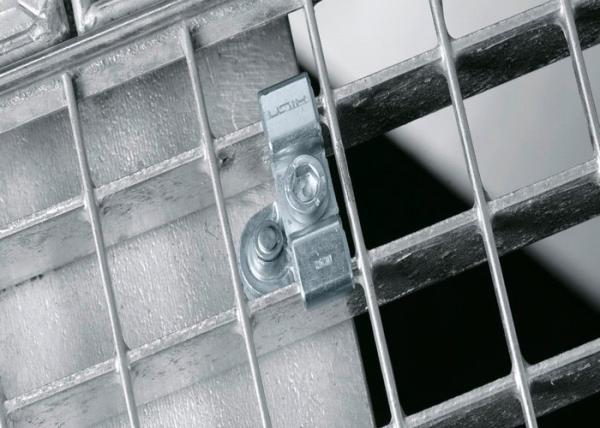

The Grating Clip is a cost effective method of securing steel grating to existing structural steel members. The use of grating fasteners eliminates costly and time consuming welding and drilling. No access below the grating is required, resulting in a quick and simple installation.

We are specialized in grating bolts and nuts for steel grating.
Best quality and competitive price and faster delivery time.

Name : grating clip

Material : mild steel
Surface Treatment : hot dip Galvanized
Competitive price and good quality !!

We are Professional factory for grating clips ,

we have stamping machines from 6.3tons to 125tones ,

now we can do stamping processing , welding processing , bending processing ,

and all kinds of the surface treatment(powder coated , zinc plated , hot dip Galvanized ,

and so on .

Gratings should be anchored to the supporting structure. This can be done in various ways. Here are some of the alternatives recommended by Weland. Grating fixings are available as both complete and separate components. Clips are available for ensuring load transfer between gratings.

The components are also available in hot dip galvanised and stainless steel versions.

Hot dip Galvanized, pickled, Electrochemically polished, Electrolyte oxidised, Baked and varnished, Bituminated, Power coated, Chromated and Electrolytic galvanising.

Clamps for the steel grating below size

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Quality Standard

Steel grating standard Steel Material Standard Hot Dip galvanizing Standard
China YB/T4001.1-2007 GB700-88 GB/13912-92
USA ANSI/NAAMM(MBG531-93) ASTM(A36) ASTM(A123)
England BS4592-1:1995 BS4360(43A) BS729
Australia AS1657-1992 AS3679 AS1650

Heavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 ApprovalHeavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 ApprovalHeavy Duty Galvanized Steel Grating Clips Power Plant Suit ISO 9001 Approval
