High Strength Steel Grating Clips Vandal Resistant Three Type Optional
High Strength Steel Grating Clips Vandal Resistant Three Type Optional
High Strength Steel Grating Clips Vandal Resistant Three Type Optional
High Strength Steel Grating Clips Vandal Resistant Three Type Optional
High Strength Steel Grating Clips Vandal Resistant Three Type Optional
High Strength Steel Grating Clips Vandal Resistant Three Type Optional
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
1
Price :
FOB 0.3 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Item: :
Steel grating clamps
Material: :
Iron,Stainless Steel 316
thickness: :
3mm and 4mm
ceter distance: :
100mm and 50mm
Bearing Bar Pitch : :
15/16" to 38/16"
surface: :
untreated, hot dip galvanized, painted
delivery time: :
5days after deposit
Bearing bar: :
3/4"x1/8"to 7"x1/2"
Description

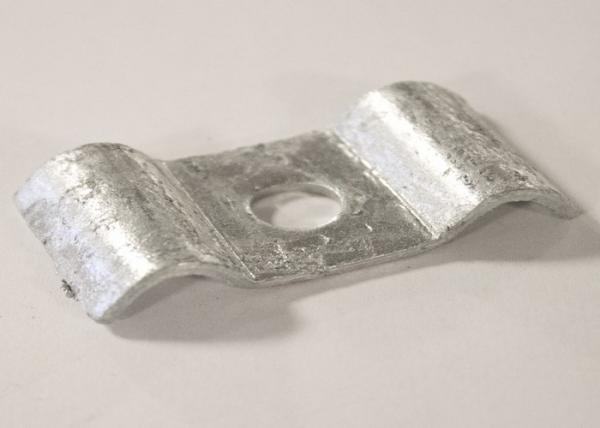

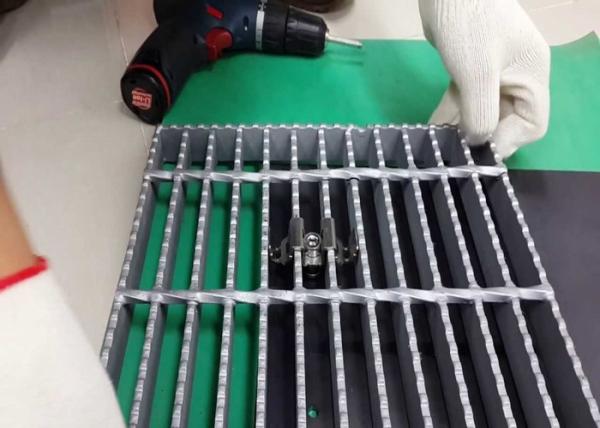

High strength vandal resistant best quality steel grating clamp

Introduction of steel grating clamp

It's a series of metal bars positioned vertically,placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern.

1. Material

mild carbon steel,stainless steel,aluminum

2. Bearing bar

It's the vertically positioned bars.

Size:from 3/4"×1/8" to 7"×1/2"

Bearing bar pitch: from 15/16" to 38/16"

3. Cross bar

Used to secure the position of the bearing bars.

Cross bar pitch: 2" or 4"

4. Optional surface

Plain surface

Serrated surface

Surface Treatment:Untreated, Painting or Hot dip Galvanizing

G - galvanized(Hot dip galvanized, Cold dip galvanized)

P - painted(Painted, Powder coated)

U - untreate

Steel Grating standard:
China: YB/T4001.1-2007(YB/T4001.1-1998)
Britain: BS4592-1:1995
US: ANSI/NAAMM(MBG531-93)
Australia: AS1657-1992

Charaterristics:The installation has the advantages of simple construction, light weight, good impact resistance, good bearing capacity ability,rather large water displacement characteristics, corrosion and rust resistance.

Feature of steel grating clamp

1.Optimum water draining: Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.

2.Hot-dip galvanizing: Good antirust performance,maintenance free and replacement free.

3.High strength: With strength and toughness far higher than those of cast iron,it can be used in the environment with large span and heavy load,such as the wharf and the airport.

High Strength Steel Grating Clips Vandal Resistant Three Type Optional

Specification of steel grating clamp

Bear bar pich as 30mm,cross bar pitch as 50mm,100mm.

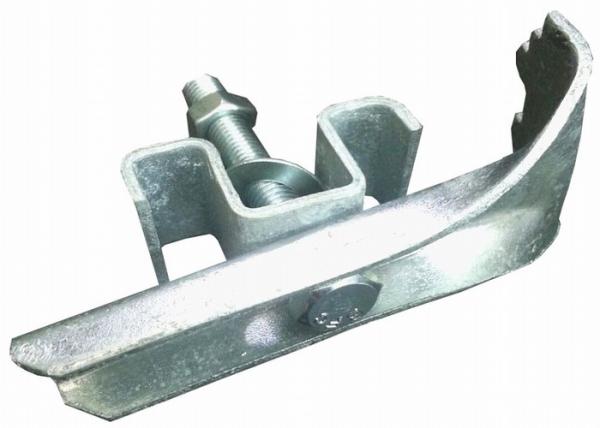

Type of steel grating saddle clip Applicable for bearing bar space
A-30 B-30 C-30 (Bearing bar pitch) 30mm
A-40 B-40 C-40 (Bearing bar pitch) 40mm
A-60 B-60 C-60 (Bearing bar pitch) 60mm
em steel grating clamp
Bearing Bar 3/4"x1/8"to 7"x1/2"
Bearing Bar Pitch 15/16" to 38/16"
Cross Bar Pitch 2" or 4"
Surface plain,serrated
Size (mm) Weight kg/m2 Size(mm) Weight kg/m2
255/30/50 54.1 255/30/100 45.8
325/30/50 64.6 325/30/100 56.2
355/30/50 69.1 355/30/100 60.7
405/30/50 76.6 405/30/100 68.2
455/30/50 84.0 455/30/100 75.7
505/30/50 91.5 505/30/100 83.2
555/30/50 99.0 555/30/100 90.7
605/30/50 106.5 605/30/100 98.3
655/30/50 114.0 655/30/100 105.7
Size(mm) Weight kg/m2 Size(mm) Weight kg/m2
255/40/50 45.8 255/40/100 37.4
325/40/50 53.9 325/40/100 45.6
355/40/50 57.4 355/40/100 49.1
405/40/50 63.2 405/40/100 54.9
455/40/50 69.1 455/40/100 60.7
505/40/50 74.9 505/40/100 66.6
555/40/50 90.7 555/40/100 72.4
605/40/50 86.5 605/40/100 78.2
655/40/50 92.4 655/40/100

84.0

High Strength Steel Grating Clips Vandal Resistant Three Type OptionalHigh Strength Steel Grating Clips Vandal Resistant Three Type Optional
