Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Specifications
Model Number :
steel grating clamps
Certification :
sgs
MOQ :
1
Price :
FOB 0.3 USD/PIECE
Payment Terms :
L/C, T/T
Supply Ability :
20000 per month
Delivery Time :
20 days
Packaging Details :
naked or wooden package .
Model Number: :
Steel grating clamps
thickness: :
3mm and 4mm
weight: :
40g
Bearing Bar thickness: :
3mm,4mm,5mm and 6mm
finish: :
untreated, hot dip galvanized, black painted
delivery time: :
15-20 days
Clip type :
type A B C
Packing :
naked, wood box, as requirement
Description

Flooring Steel GratingPlatform Galvanized Steel Grating clips

The clip apply to all kinds of steel gratings, it is made of the M8 bolt, top clip and bottom clip.

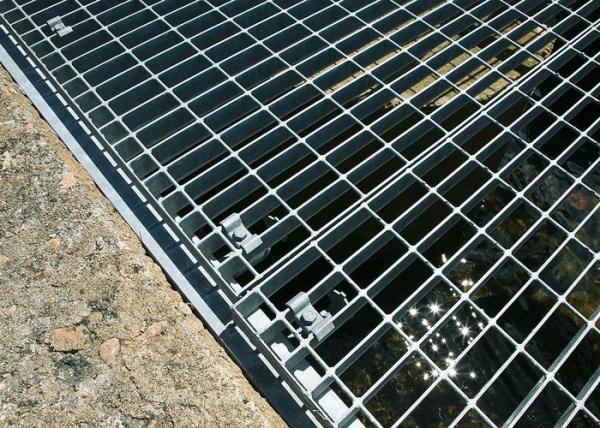

The method of clip fixing: There are at least 4 clips on every piece of steel grating, about the big span steel grating it is better to use more clips.

According to the client's requests, we can supply galvanized mild steel clips and stainless steel clips.

Material : mild steel
Surface Treatment : hot dip Galvanized
Competitive price and good quality !!

We are Professional factory for grating clips ,

we have stamping machines from 6.3tons to 125tones ,

now we can do stamping processing , welding processing , bending processing ,

and all kinds of the surface treatment(powder coated , zinc plated , hot dip Galvanized ,

and so on .

Clips for the below table

Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface

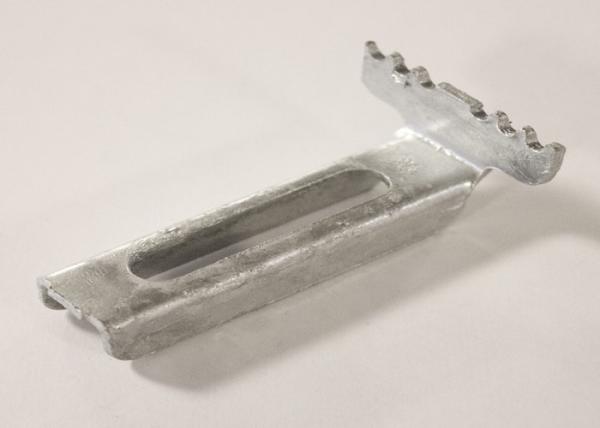

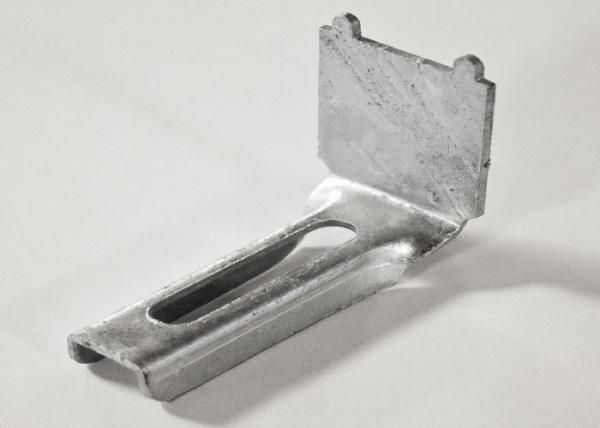

Type A - composed of a top board with double hook,a holding down plate with teeth and an M10 (or M8) inner-hexagon-bolt.
Type B - composed of a top board with double hook(where one hook can draw together two neighboring steel gratings),a holding down plate with teeth and a M10(or M8) inner-hexagon-bolt.
Type C - composed of a top board with double hook and a M10 (or M8) hexagon-bolt which can be welded in the supporting structure

Type Plain / Smooth, Serrated /teeth, I bar, serrated-I bar
Steel flat size 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc.
Bearing bar pitch 12.5,15,20,25,30,35,40,50mm
Cross bar pitch 38,50,80,100mm
material Low carbon steel, stainless steel, aluminum alloy
Surface treatment Untreated, hot galvanized, painting,electro galvanized

Grating Standard

China: YB/T 4001.1-2007

USA: ANSI/NAAMM(MBG531-88)

UK: BS 4592-1987

Australia: AS 1657-1985

Material standard

China: GB 700-88

UK: BS 4360:1990

USA: ASTM A36/A36M-96

AUSTRALIA: AS 3679

HDG standard

CHINA: GB/T13912-2002

UK: BS729

USA: ASTM A123/A123M-97a

AUSTRALIA: AS 1650

Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface

We can provide the following services:

Mold Design: We use the most advanced mould design software Auto CAD, Solidworks, UG (dwg)
Manufacture: We use advanced technology, unmatched skill, professional equipment size range from 25T-250T, and experienced technicians to fit our customers requirements, like tooling manufacturing, stamping, welding, and surface coating service
Material: Carbon steel, stainless steel, alloy steel, aluminum, brass, etc
Thickness of the raw materials: We can manufacture sheet metal products in thickness starting from 0.2-30mm
Making process: Progression die, Stamping, Deep drawing, Bending, Punching, Threading, Welding, Tapping, Riveting, Grinding
Surface coating: Plating(zinc, nickel, chrome), electrophoresis, painting, electrostatic spraying, hot dip galvanized, dacromet coating, anodic oxidation, blacking, polishing, coated with anti-rust oil
Price terms: FOB Tianjin Port, China
Lead time: 25-50 days based on the different products
