30 × 3 Floor Trough Drain Grates , Sliding Resistant Metal Trench Drain Grates
30 × 3 Floor Trough Drain Grates , Sliding Resistant Metal Trench Drain Grates
30 × 3 Floor Trough Drain Grates , Sliding Resistant Metal Trench Drain Grates
30 × 3 Floor Trough Drain Grates , Sliding Resistant Metal Trench Drain Grates
Specifications
Model Number :
galvanized grating trench cover
Certification :
ISO9001
MOQ :
50 pieces
Supply Ability :
1000t per month
Delivery Time :
3-8 days
Packaging Details :
Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements
Product name :
30 × 3 Steel Hot Dipped Galvanized Trench Cover Grating Sliding Resistant
Brand name :
Baosheng
Surface :
Plain , serrated
Color :
Sliver, black or painted
Type :
Welded steel grating, pressure-locked, socket-welding
Cross bar pitch :
38,50,80,100mm
Beraing bar pitch :
12.5,15,20,25,30,35,40,50mm
Surface treatment :
Untreated, hot galvanized, painted
Description

30 × 3 Steel Hot Dipped Galvanized Trench Cover Grating Sliding Resistant

Specification

We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating

and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks,

drainages and well covers etc. We can design and manufacture standard steel grating and in customized

shapes per client's requirements.

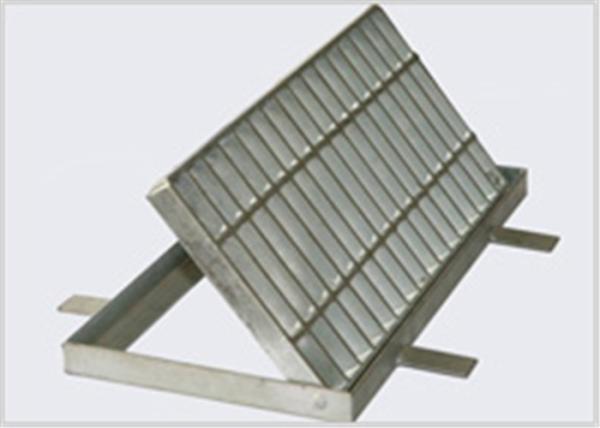

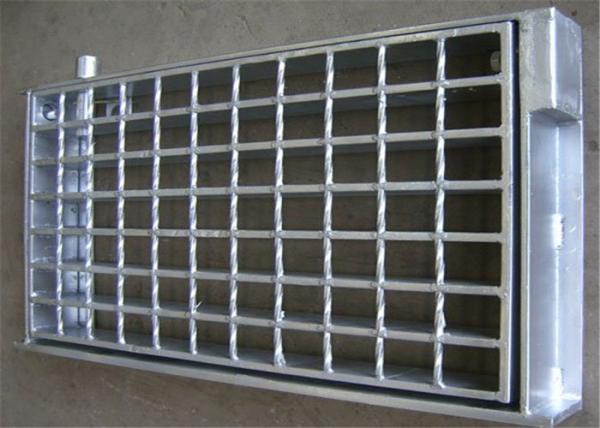

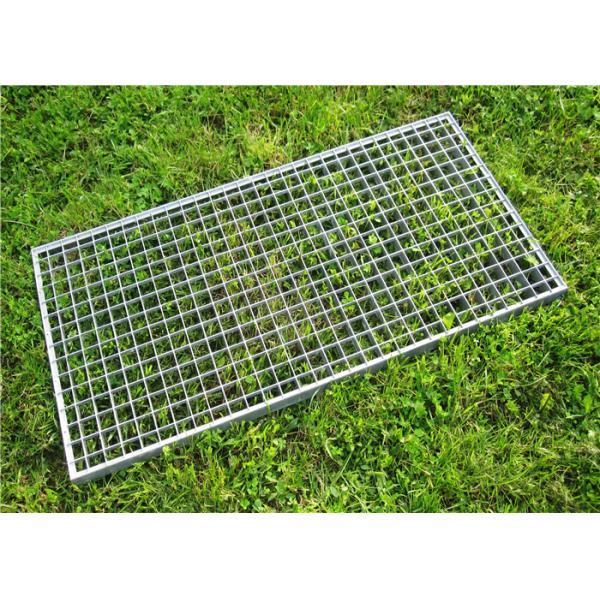

30 × 3 Floor Trough Drain Grates , Sliding Resistant Metal Trench Drain Grates

Standard size trench cover details

Item Clear opening (mm) Grate width (mm) Grate depth (mm) Bar spacing (mm) Angle frame (mm)
TGAFS-01 75 100 25 20* 30 × 15 × 3
TGAFS-02 105 150 25 25 30 × 30 × 5
TGAFS-03 120 150 25 20* 30 × 15 × 3
TGAFS-04 150 200 25 20* 30 × 30 ×5
TGAFS-05 150 215 32 25 40 × 40 × 5
TGAFS-06 200 250 25 25 30 × 30 × 5
TGAFS-07 200 275 40 25 45 × 45 × 5
TGAFS-08 235 300 32 25 40 × 40 × 5
TGAFS-09 250 300 25 25 30 × 30 × 5
TGAFS-10 250 325 40 25 45 × 45 × 5
TGAFS-11 300 350 25 25 30 × 30 × 5
TGAFS-12 300 375 40 25 45 × 45 × 5
TGAFS-13 300 395 50 25 55 × 55 × 5
TGAFS-14 400 475 40 25 45 × 45 × 5
TGAFS-15 400 495 50 25 55 × 55 × 5

Type Welded steel grating, pressure-locked, socket-welding
Steel flat size 20 × 3 , 25 × 3 , 25 × 5 , 30 × 3 , 30 × 4 , 30 × 5 , 32 × 3 , 32 × 5 , 45 × 5 mm
Beraing bar pitch 12.5 , 15 , 20 , 25 , 30 , 35 , 40,50mm
Cross bar pitch 38,50,80,100mm
material Low carbon steel, stainless steel, aluminium
Surface treatment Untreated, hot galvanized, painted
Standards

China: YB/T 4001.1-2007

Grating trench usage

steel grating trench covers is mainly used in chemical industry, food processing, hydro processing and

other industries as listed :

  • Power plant
  • Chemical plant
  • Oil Refinery
  • Steel plant
  • Machinery plant
  • Paper-making factory
  • Cement plant
  • Civil engineering
  • Wastewater treatment
  • Pharmacy industry
  • Food processing

Features

The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and

other propertier.
